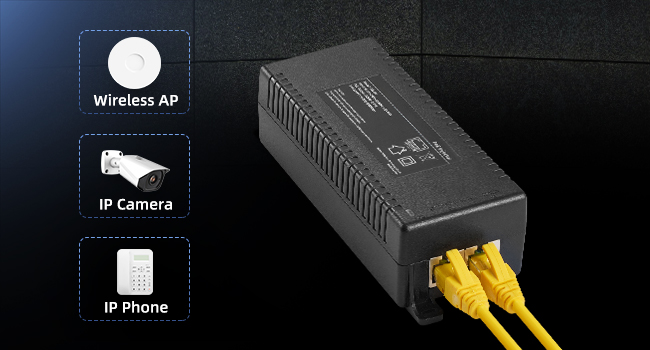

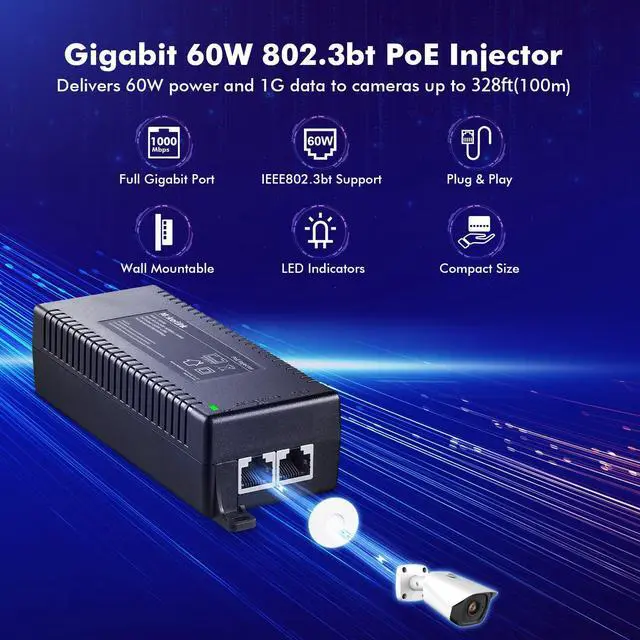

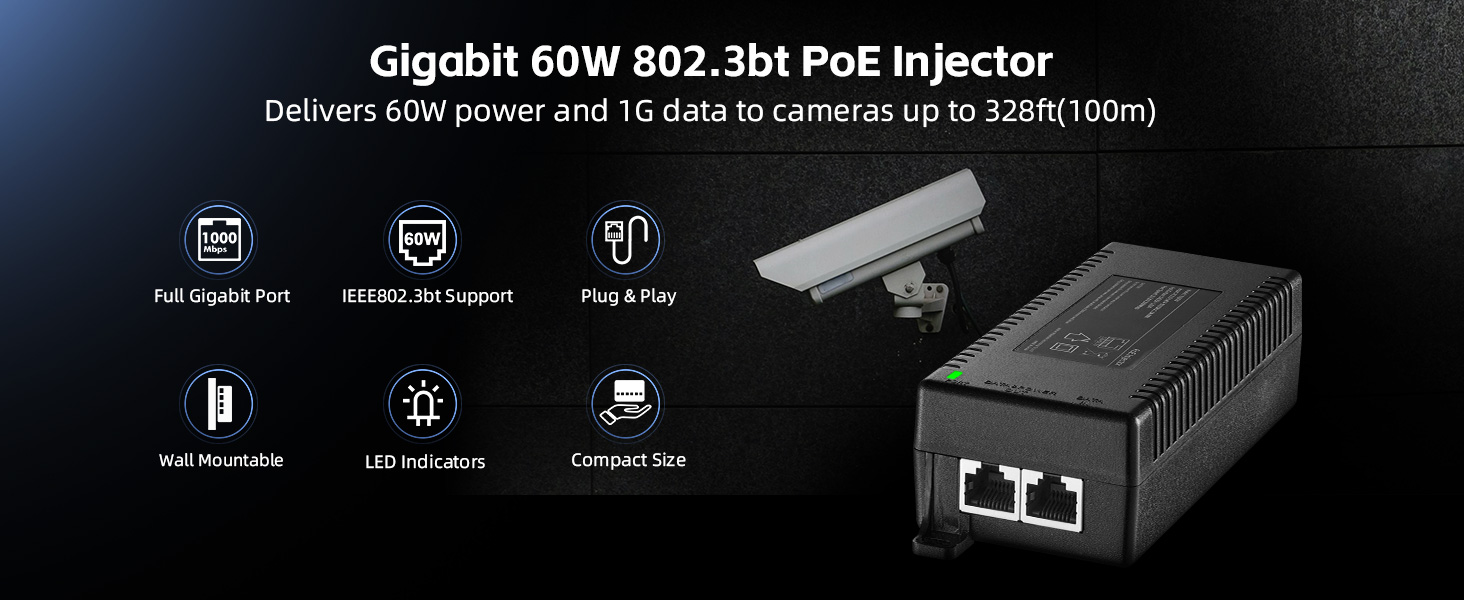

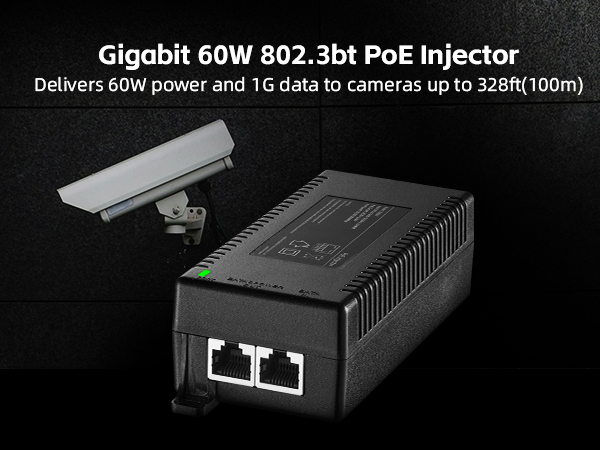

The INJ60W is a Gigabit 60W PoE++ Injector that compliant with IEEE 802.3bt/at/af (PoE++) , It is designed to supply data and up to 60 watts of power to PoE-enabled devices such as network cameras and wireless access points. You can mount it anywhere without a nearby power outlet.

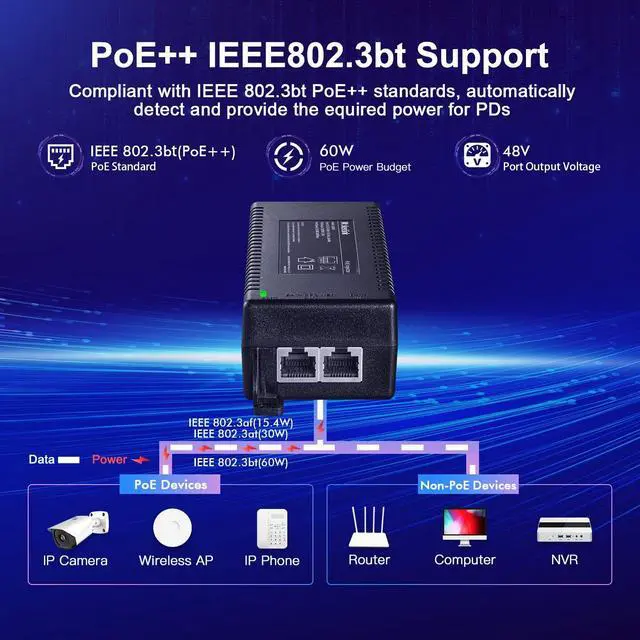

Complies with IEEE802.3af/at/bt standards

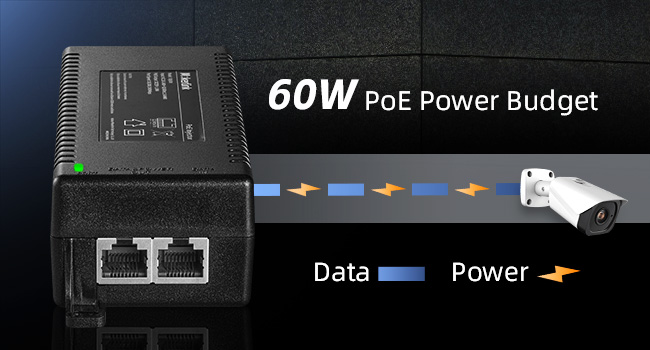

The PoE out port compliant with IEEE 802.3at/af/bt standard, Up to 60W power and data for transmission over a single Ethernet cable, up to 100 metres distance. Automatically determines and supplies the exact power to meet the device's need.
2*1G ports ensure faster transmission
This model is available with 2x 1G ports, 1x1G PoE out port and 1x1G LAN pors. It offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

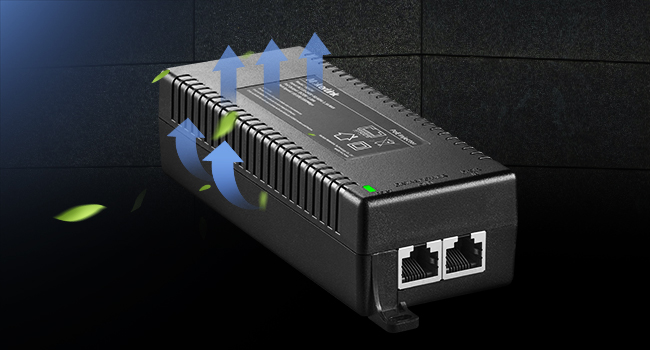

Compact Design & Integrated power supply
Compact design for unobtrusive placement, It integrated power supply, No need extra power supply.
Plug & Play installation

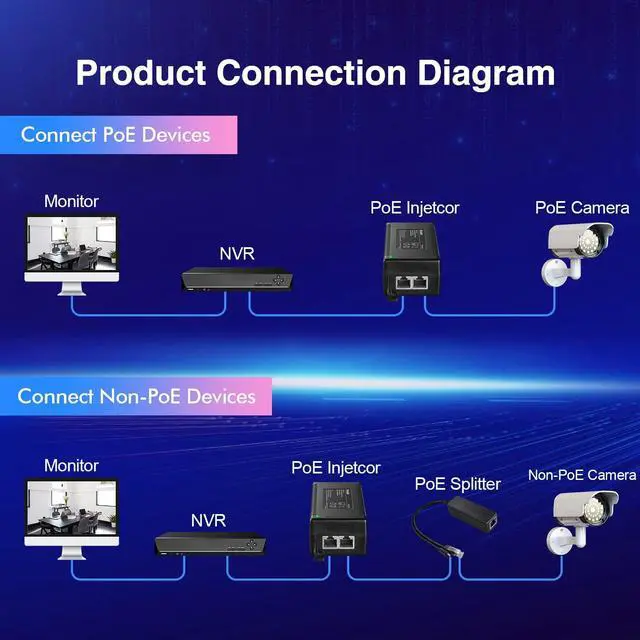

Plug & Play installation, requires no configuration. Provides power over existing network cabling to
PoE devices such as APx, IP cameras and IP phones.
LED Indicator
You can quickly check working status and troubleshoot ports with Led indicator.

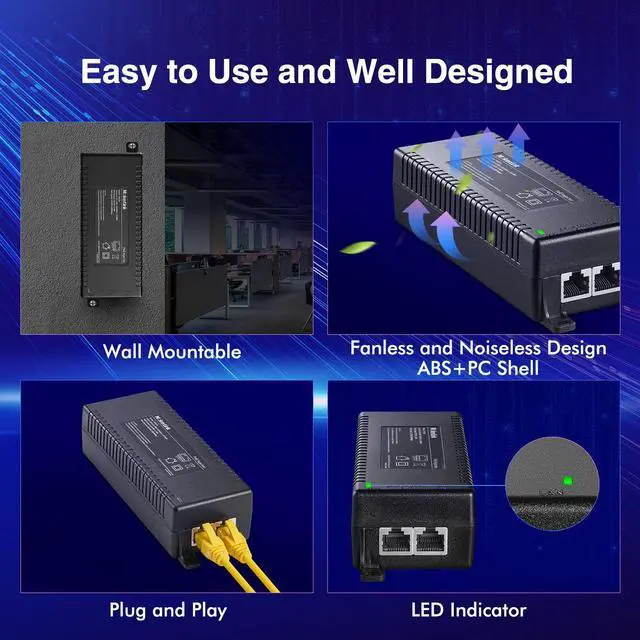

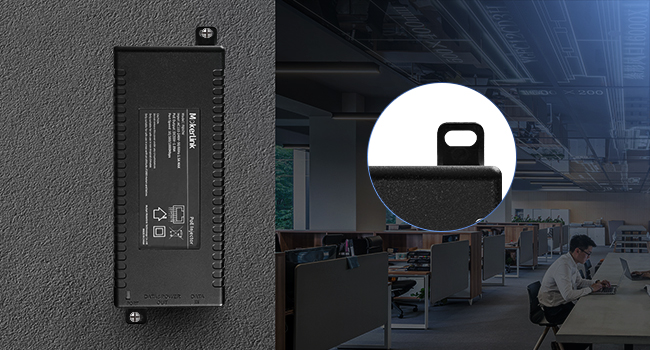

Mounting flexibility
Flexible deployment options for desktop and wall-mount in your office and home, meet the network environment requirement.
Technical Specifications
1G/2.5G/10G Series PoE Injector
 1G/60W(INJ60W) |  2.5G/30W(2GINJ30W) | 1G/30W(INJ30W) | 2.5G/60W(2GINJ60W) |  1G/90W(INJ90W) | 2.5G/90W(2GINJ90W) |  10G/65W(10GINJ65W) | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Ports | 1x1G PoE/Data + 1x1G Data | 1x2.5G PoE/Data + 1x2.5G Data | 1x1G PoE/Data + 1x1G Data | 1x2.5G PoE/Data + 1x2.5G Data | 1x1G PoE/Data + 1x1G Data | 1x2.5G PoE/Data + 1x2.5G Data | 1x10G PoE/Data + 1x10G Data |
PoE | IEEE802.3af/at/bt(Max 60W) | IEEE802.3af/at(Max 30W) | IEEE802.3af/at(Max 30W) | IEEE802.3af/at/bt(Max 60W) | IEEE802.3af/at/bt(Max 90W) | IEEE802.3af/at/bt(Max 90W) | IEEE802.3af/at/bt(Max 65W) |
Shell | ABS+PC | ABS+PC | ABS+PC | ABS+PC | Metal | Metal | Metal |
Installtaion | Desktop and Wall Mount | Desktop | Desktop | Desktop and Wall Mount | Desktop and Wall Mount | Desktop and Wall Mount | Desktop and Wall Mount |
Dimensions ( W x D x H ) | 167*57*40mm | 115*50*32mm | 115*50*32mm | 167*57*40mm | 172*76*42mm | 172*76*42mm | 114x47x32mm |
The INJ60W is a Gigabit 60W PoE++ Injector that compliant with IEEE 802.3bt/at/af (PoE++) , It is designed to supply data and up to 60 watts of power to PoE-enabled devices such as network cameras and wireless access points. You can mount it anywhere without a nearby power outlet.
Complies with IEEE802.3af/at/bt standards
The PoE out port compliant with IEEE 802.3at/af/bt standard, Up to 60W power and data for transmission over a single Ethernet cable, up to 100 metres distance. Automatically determines and supplies the exact power to meet the device's need.
2*1G ports ensure faster transmission
This model is available with 2x 1G ports, 1x1G PoE out port and 1x1G LAN pors. It offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Compact Design & Integrated power supply
Compact design for unobtrusive placement, It integrated power supply, No need extra power supply.
Plug & Play installation
Plug & Play installation, requires no configuration. Provides power over existing network cabling to
PoE devices such as APx, IP cameras and IP phones.
LED Indicator
You can quickly check working status and troubleshoot ports with Led indicator.
Mounting flexibility
Flexible deployment options for desktop and wall-mount in your office and home, meet the network environment requirement.
Technical Specifications

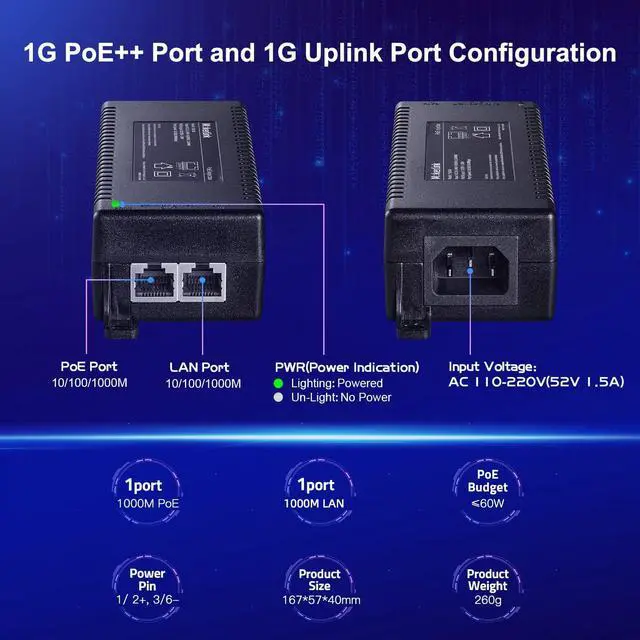

| Model | INJ60W |
|---|---|
| Ports | 1x 10 Mbps /100 Mbps /1Gbps RJ45 data-in port, 1x 10 Mbps /100 Mbps /1Gbps RJ45 power+data-out port, 1x AC socket |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) , 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) , 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| Power Consumption | Input: 100-240 V, 50/60 Hz, Output: Auto-determine the necessary power requirements (max.60W) |
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt |
| LED Indicator | ON: Supplying power normally, OFF: No power supply |
| Dimensions ( W x D x H ) | 167*57*40mm (6.6*2.2*1.6in) |
| Weight | 260g |
| Function | Plug-and-Play, Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD, Auto-determine the necessary power requirements |
| Installation | Desktop/Wall Mount installation supported |
| Environment | Operating Temperature: 0°C to 40°C (32°F to 104°F), Storage Temperature: -40°C to 70°C (-40°F to 158°F), Operating Humidity: 10% to 90%RH non-condensing, Storage Humidity: 5% to 90%RH non-condensing |
| Package Contents | Gigabit PoE++ Injector, User manual,Power Cord |
1G/2.5G/10G Series PoE Injector
1G/60W(INJ60W) | 2.5G/30W(2GINJ30W) | 1G/30W(INJ30W) | 2.5G/60W(2GINJ60W) | 1G/90W(INJ90W) | 2.5G/90W(2GINJ90W) | 10G/65W(10GINJ65W) |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Ports | ||||||
| 1x1G PoE/Data + 1x1G Data | 1x2.5G PoE/Data + 1x2.5G Data | 1x1G PoE/Data + 1x1G Data | 1x2.5G PoE/Data + 1x2.5G Data | 1x1G PoE/Data + 1x1G Data | 1x2.5G PoE/Data + 1x2.5G Data | 1x10G PoE/Data + 1x10G Data |
| PoE | ||||||
| IEEE802.3af/at/bt(Max 60W) | IEEE802.3af/at(Max 30W) | IEEE802.3af/at(Max 30W) | IEEE802.3af/at/bt(Max 60W) | IEEE802.3af/at/bt(Max 90W) | IEEE802.3af/at/bt(Max 90W) | IEEE802.3af/at/bt(Max 65W) |
| Shell | ||||||
| ABS+PC | ABS+PC | ABS+PC | ABS+PC | Metal | Metal | Metal |
| Installtaion | ||||||
| Desktop and Wall Mount | Desktop | Desktop | Desktop and Wall Mount | Desktop and Wall Mount | Desktop and Wall Mount | Desktop and Wall Mount |
| Dimensions ( W x D x H ) | ||||||
| 167*57*40mm | 115*50*32mm | 115*50*32mm | 167*57*40mm | 172*76*42mm | 172*76*42mm | 114x47x32mm |
