Product Specifications

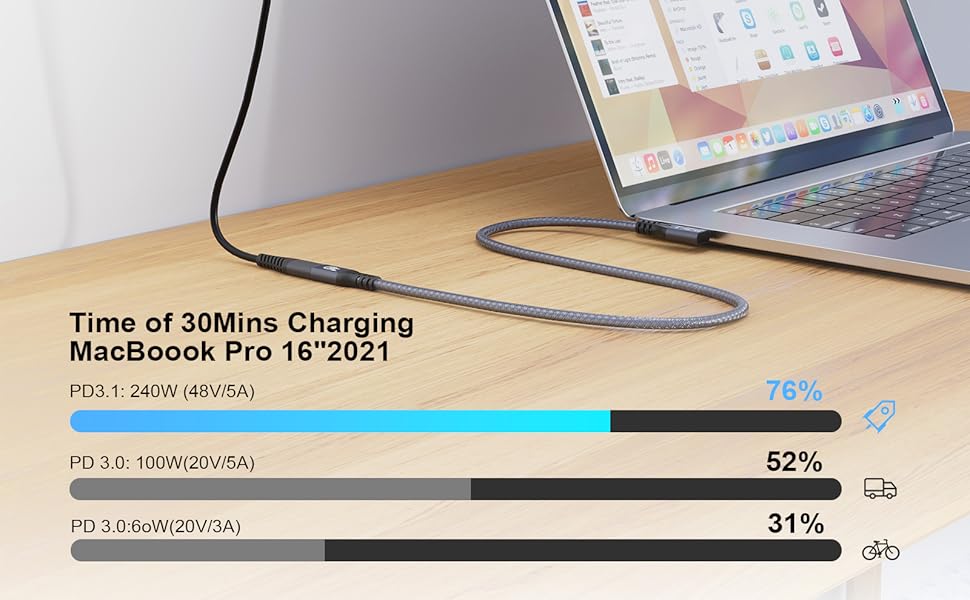

40Gbps Data Transfer & 240W Fast Charge

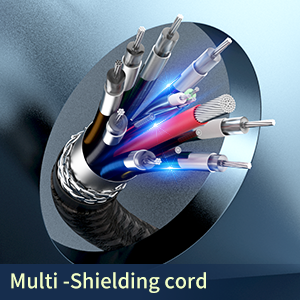

USB4 data cable uses a 16-core cable, 8-core 98pcs copper wires are responsible for 40Gbps data transfer, the max transfer speed per second reaches 2.5G; 8-core 297pcs copper wires are responsible for 240W fast charging, support PD3.1/PD3.0/PD2.0/ QC4.0/QC3.0/QC2.0 FCP PPS charging protocol.
8K Audio and Video Output
The upgraded second-generation Emark chip has passed Inter certification, supports 240W charging protection, Compatible with Thunderbolt 4/3, HDMI, DP, MIPI digital audio protocols, and supports up to 8K@60hz audio and video output.
90 Degree Angle Design
Certified by the USB-IF and the special 90° connector design is much more comfortable for playing games or watching videos when you lie on the couch or bed while charging. And the right-angle plug makes a nicer fit in your hand without breaking.
24K Gold-plated connector
USB-C phone to laptop cable can bear 20000+ cycles of 90-degree bend test, strain relief design and solid aluminum shield offer the cable longer service life and will never rupture. 240W super fast charging USB C cable is build in the best power delivery E-Mark chip, which supports USB PD fast charging and provides comprehensive protection to devices battery and adapters, keep you in light-speed charging and safe.
Reliable Performance
Military grade material made CHENLENIC USB C to C cable more safe to advoid overheat, charred and fire, adds durability and tangle free. And makes tensile force increased by 200%, can bear 20,000+ bending test.
Compatible with type-c ports devices
such as MacBook Pro, iPad Pro, iPad mini 6,iPhone 15/15 Pro/Plus/Pro Max, Dell XPS 15/13, HUAWEI MateBook, Google Pixelbook, SamsungGalaxy S23/S22/S21/A80/A53, Google Pixel 6/7/7 Pro, Nexus 6P/5X. Works great for Laptops, Chromebooks, Desktops, Video Displays/Monitors, Portable Hard Drives, Tablets.
Product Specifications
| Version | CHENLENIC USB4 Ultra 8K Video Extension Cable |
| Data Transfer | 40Gbps Data Transfer Rate |
| Charging Power | 240W of Power Delivery for Fast Charging, also support 240W,100W,96W, 90W, 65W, 60W, 55W, 50W, 40W, 30W, 25W, 18W, and more |
| Video Resolution | 8K@60hz,4K@60Hz, 2K@144Hz, 2K@120Hz, 2K@60Hz, 1080P@60Hz (for devices whose USB-C ports support DisplayPort Alternate Mode) |
| Compatibility | Thunderbolt 4, Thunderbolt 3, Macbook Pro 2023 2022 2021 2020, 2019, 2018, Iphone 15pro,Samsung galaxy,Dell XPS, Google Pixel, ChromeBook and other DP Alternated Mode Supported Devices |
| Material | Gold-plated Connector, Aluminum Shell, Braided Nylon |
| Package | 1x0.5m USB4 M/F Cable |
| NOTE 1 | M/M USB-4 Cable is not included in our Package |
| NOTE 2 | If you would like to output video via this USB 4 Type-c Cable,your source devices and your monitors' relatively port should all support dp alternate mode for video transmitting |
| NOTE 3 | The transfer rate ultimately depends on your device and your own data. |
| NOTE 4 | The total length should not exceed 2m, when you need a full rate. If the total length is too long, there will be severe signal attenuation. NOT work with any Thunderbolt 3 docking/hub/cable(except Thunderbolt 3 Laptop). NOT compatible with Apple Multi-media Adapter (USB 3, HDMI, USB C (charge pass through), all models of GoPro Camera and the Oculus Quest Link. |
| NOTE 5 | If you hook up a USB-C 2.0 peripheral (Such as Mouse, Keyboard, etc) to our USB-C 3.1 Gen 2 extension cable and it doesn't work as you expected. (USB 2.0 devices can only support one side), please reverse the Female connector of the USB C extension cable. |
40Gbps Data Transfer & 240W Fast Charge
USB4 data cable uses a 16-core cable, 8-core 98pcs copper wires are responsible for 40Gbps data transfer, the max transfer speed per second reaches 2.5G; 8-core 297pcs copper wires are responsible for 240W fast charging, support PD3.1/PD3.0/PD2.0/ QC4.0/QC3.0/QC2.0 FCP PPS charging protocol.
8K Audio and Video Output
The upgraded second-generation Emark chip has passed Inter certification, supports 240W charging protection, Compatible with Thunderbolt 4/3, HDMI, DP, MIPI digital audio protocols, and supports up to 8K@60hz audio and video output.
90 Degree Angle Design
Certified by the USB-IF and the special 90° connector design is much more comfortable for playing games or watching videos when you lie on the couch or bed while charging. And the right-angle plug makes a nicer fit in your hand without breaking.
24K Gold-plated connector
USB-C phone to laptop cable can bear 20000+ cycles of 90-degree bend test, strain relief design and solid aluminum shield offer the cable longer service life and will never rupture. 240W super fast charging USB C cable is build in the best power delivery E-Mark chip, which supports USB PD fast charging and provides comprehensive protection to devices battery and adapters, keep you in light-speed charging and safe.
Reliable Performance
Military grade material made CHENLENIC USB C to C cable more safe to advoid overheat, charred and fire, adds durability and tangle free. And makes tensile force increased by 200%, can bear 20,000+ bending test.
Compatible with type-c ports devices
such as MacBook Pro, iPad Pro, iPad mini 6,iPhone 15/15 Pro/Plus/Pro Max, Dell XPS 15/13, HUAWEI MateBook, Google Pixelbook, SamsungGalaxy S23/S22/S21/A80/A53, Google Pixel 6/7/7 Pro, Nexus 6P/5X. Works great for Laptops, Chromebooks, Desktops, Video Displays/Monitors, Portable Hard Drives, Tablets.
