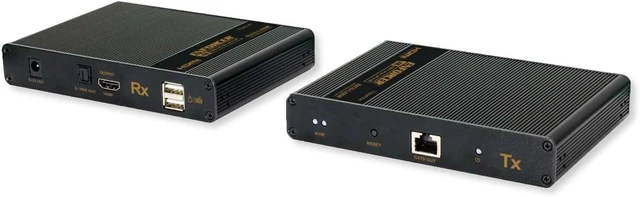

Seco-Larm MVE-AH1E1-01UQ Enforcer HDMI Extender with KVM, 1080p

Extend the range of HDMI signals by sending video and audio over a single Cat6/7 cable with the Seco-Larm Enforcer HDMI Extender with KVM, 1080p. This range extender will allow you to view AV signals, or remotely operate a device, such as a computer or NVR/DVR, from an increased distance with zero latency transmission over a single Cat6/7 cable (up to 230 feet). Additionally, it can transmit USB 2.0 signals and supports point to point connections and KVM functionality, which provides a way to control multiple computers from a single keyboard, mouse, and monitor. The Extender also features lighting protection, surge protection, and ESD protection, all of which ensure your electronic devices will be safe and well protected against possible surges and electromagnetic energy that could cause damage.
Extends HDMI and USB 2.0 signals up to 230ft over a single Cat6/7 cable
Supports resolutions from 800x600 to 1080p with zero signal loss
Supports HDMi loop-out and KVM functionality
Includes Power Adapter and IR hardware
Status LEDs indicate power and KVM status
ContentsHDMI Transmitter
HDMI Receiver
USB Cable
(2) Power Adapters
Manual
Technical DetailsManufacturer Part #: MVE-AH1E1-01UQ
UPC: 676544021810
Input Video Signal: 3.3V
Input DDC Signal: 5Vp-p (TTL)
Maximum Signal Link Range: 230ft (70m)
Video Formats Supported: High-speed HDMI, HDCP 1.4
Audio Formats Supported: PCM, LPCM, DTS-HD, DTS-Audio
Output Video: HDMI
Resolutions Supported: 1080p,1080i, 720p, 576p, 576i, 480p, 480i, 1920x1080, 1680x1050, 1440x900, 1366x768, 1280x960, 1280x720, 1024x768, 800x600
Range (Cat6/6A/7): Up to 230ft (70m)
Video Input Connector: HDMI Type A 19-pin female
Maximum Input Cable Length: 26ft (8m) AWG24
Video Output Connector: HDMI Type A 19-pin female
Maximum Output Cable Length: 26ft (8m) AWG24
Cat6 Wiring Standard: T-568B
Operating Voltage: 5VDC
Power Supply: 5VDC@1A
ESD Protection: ±8kV (air-gap discharge), ±4kV (contact discharge)
Current Draw: Transmitter & Receiver: <2.5W
Operating Humidity: 0 to 90%
Operating Temperature: -4° to 140° F (-20° to 60° C)
Dimensions: 2-15/16 x 3-3/8 x 3/4 inches (74x85x19 mm)
Weight: 6.3-oz (180g)
Credentials: FCC, CE, RoHS
Warranty: 2 Years
