National Instrumens NI GPIB-USB-HS Interface Adapter IEEE 488
- Product: GPIB-USB-HS
- Cable type: USB
- Product number: 779704-01 , 778927-01
- System: Windows, Mac OS X, or Linux.
- LabVIEW RT support: No
- Voltage: 5 VDC
- Current: 500 mA
- GPIB standard: HS488 , IEEE 488.1 , IEEE 488 , IEEE 488.2
- GPIB ASIC chip: TNT5004
- Port information:
- Port number 1
- Max. Baud Rate (IEEE 488.1) 1.8 MB/s
- Max. Baud Rate (HS488) 7.2 MB/s
- Max. cable lenght: 4M
- I/O FIFO cache 64B , 32B
- Max. connect port: 14
- Length: 10.7 cm, Width: 6.6 cm
- I/O connector: 24-pin IEEE 488
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

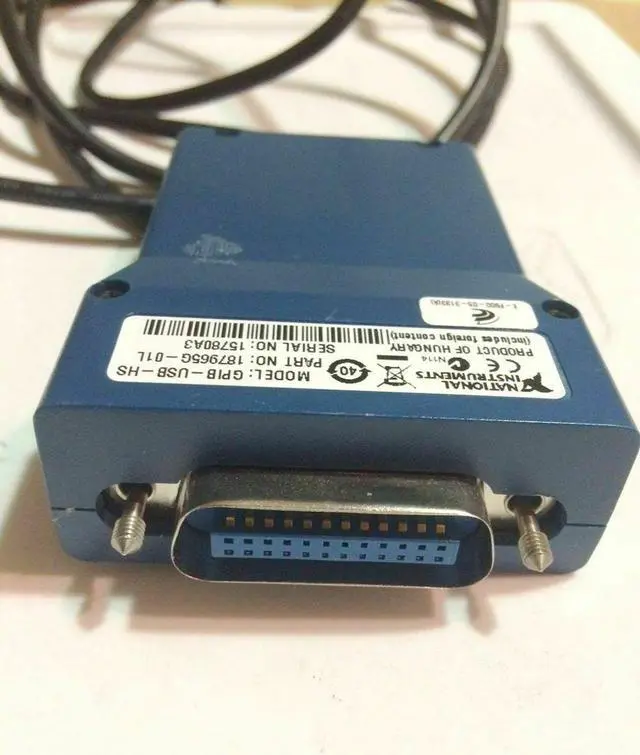

The compact NI GPIB-USB-HS transforms any computer with a USB port into a full-function, IEEE 488.2 controller that can control up to 14 programmable GPIB instruments. The small size and light weight of this controller make it ideal for portable applications using a laptop computer or other applications in which the computer has no available internal I/O slots. The GPIB-USB-HS works with Windows 7/Vista/XP/Me/2000/98, Mac OS X, and Linux computers with a USB port.
