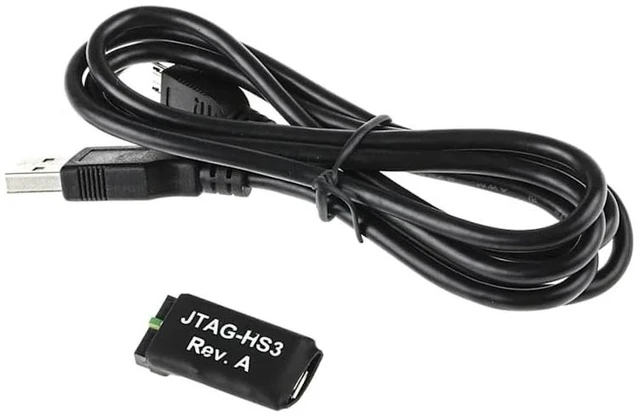

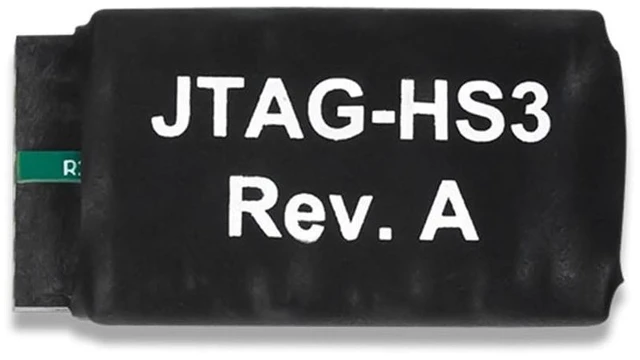

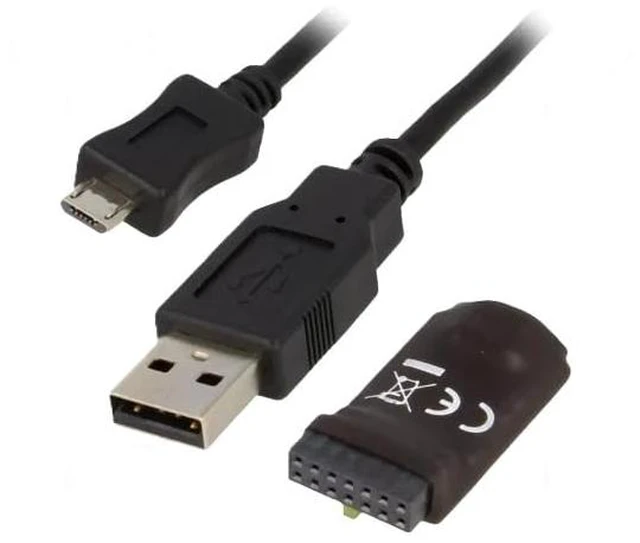

Digilent JTAG-HS3 Programming Cable
- Small, complete, all-in-one JTAG programming/debugging solution for Xilinx FPGAs and SoCs
- Plugs directly into standard Xilinx JTAG header
- High-Speed USB2 port that can drive JTAG bus up to 30Mbit/sec (frequency adjustable by user)
- Open drain buffer on pin 14 allows debugging software to reset the processor core of
- Uses USB Micro-B connector
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The JTAG-HS3 is an affordable high-speed
Xilinx FPGA programming solutions. The HS3 builds on the successful
JTAG-HS1 by adding an open-drain buffer to pin 14 allowing for the
debugging of Xilinx Zynq-SOC processors. It can be attached to target
boards using Xilinx's 2x7 connector*, and is compatible with all Xilinx
tools, including iMPACT, ChipScope, and EDK. When connected to a PC via a
standard A to micro-USB cable, the JTAG HS3 receives its power from USB and
can be recognized as a Digilent programming cable, even if the HS3 is not
attached to the target board. The JTAG bus can be shared with other devices
as the HS3's signals are held in high-impedance, except when actively
driven during programming. The HS3 is small and light, allowing it to be
held firmly in place by the system board connector. * This is a unique
programming header and is not compatible with the 1x6 MTE Digilent JTAG
Connector.
Xilinx FPGA programming solutions. The HS3 builds on the successful
JTAG-HS1 by adding an open-drain buffer to pin 14 allowing for the
debugging of Xilinx Zynq-SOC processors. It can be attached to target
boards using Xilinx's 2x7 connector*, and is compatible with all Xilinx
tools, including iMPACT, ChipScope, and EDK. When connected to a PC via a
standard A to micro-USB cable, the JTAG HS3 receives its power from USB and
can be recognized as a Digilent programming cable, even if the HS3 is not
attached to the target board. The JTAG bus can be shared with other devices
as the HS3's signals are held in high-impedance, except when actively
driven during programming. The HS3 is small and light, allowing it to be
held firmly in place by the system board connector. * This is a unique
programming header and is not compatible with the 1x6 MTE Digilent JTAG
Connector.
