trueCABLE 3-D Staggered 24 Port 19 Toolless Modular Patch Panel, Unshielded, Blank, 1U Rack Mount, with Cable Management Bar, High Density, Black

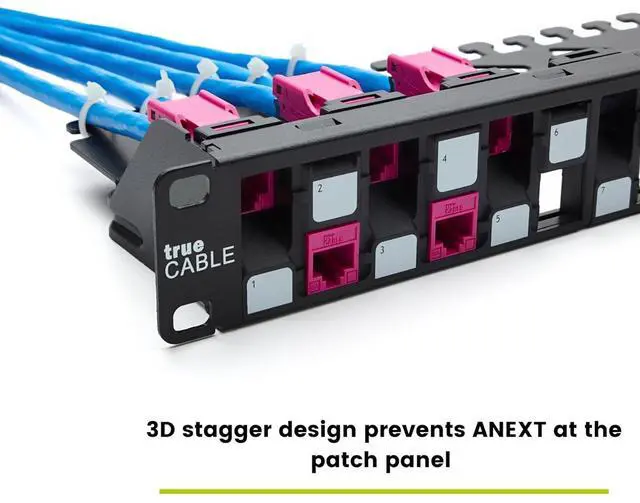

COMPONENT RATED FOR 10G NETWORKS. Unique 3-D staggered design offsets unshielded keystone jacks in a three dimensional pattern to mitigate alien crosstalk (ANEXT) at the patch panel. Designed specifically to achieve ISO/IEC-11801 and ANSI/TIA 568.2-D Cat6A Component Rated performance when combined with trueCABLE Cat6A Component Rated unshielded keystone jacks.

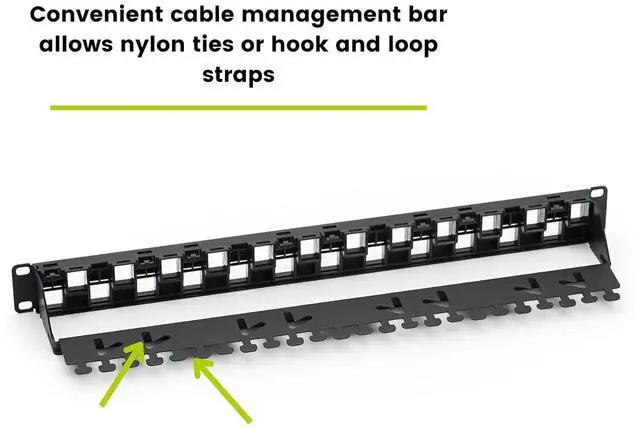

VERSATILE. Designed for Cat6A unshielded keystone jacks and U/UTP (unshielded) Ethernet cable. Fully backwards compatible with Cat5e and Cat6. Accepts tool-less and 110 punch down style jacks. The unique cable management bar accepts hook and loop straps for bundling cables or nylon ties. Not recommended for shielded Ethernet cable.

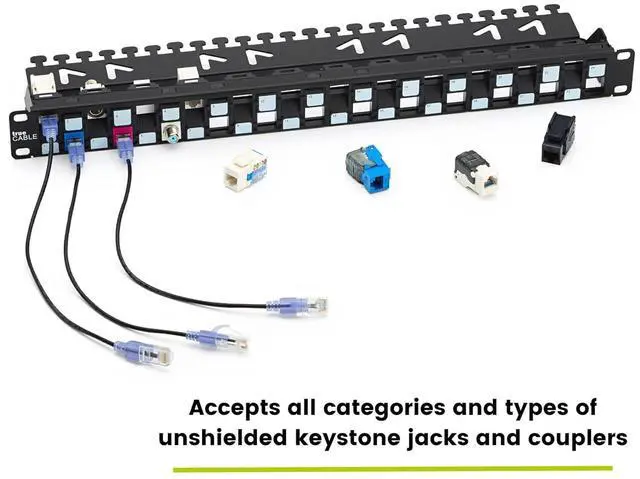

COMPATIBLE. Tested and certified with trueCABLE tool-less, punch down keystone jacks, and couplers. Works with industry standard snap-in HD Ethernet keystone jacks and couplers. Designed specifically for Ethernet communications cable and hardware. This panel will accept BNC, RCA, HDMI, USB, fiber optic, and snap-in Coaxial couplers, however using the recessed ports (12 out of the 24) may result in oversized cabling/connectors to not physically fit. Please confirm compatibility.
QUALITY GUARANTEED. Meets EIA-310-E, FCC part 68-F & IEC 60603-7. RoHS Compliant & UL Listed. Frame is ABS UL94V-0 rated.

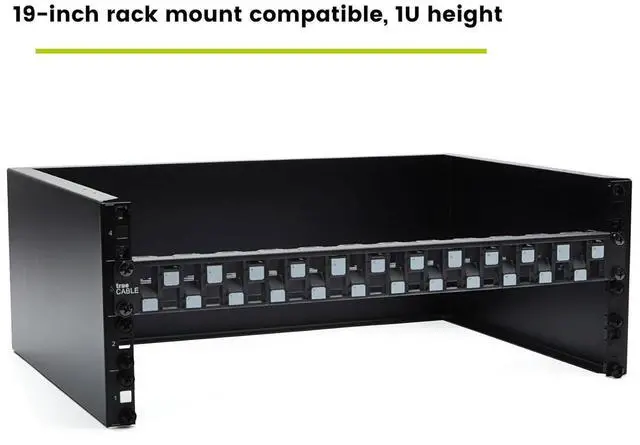

FIELD TESTED, CUSTOMER APPROVED. Individually numbered ports with spacing provided for permanent labeling or temporary write-on port identification. Integrated cable manager and panel are SPCC 1.6t black powder coated cold rolled steel. Unit measures 19 wide by 1.75 high. A minimum rack depth of 8 is recommended for proper clearance. Supplied with 24 nylon ties. Backed by our FOREVER WARRANTY.
