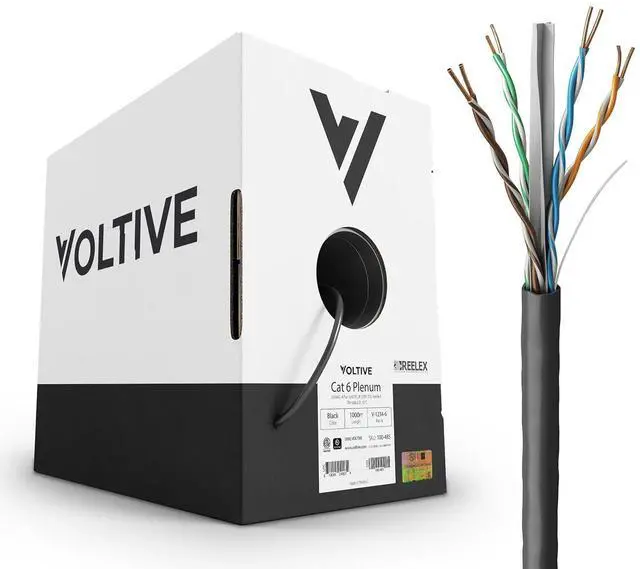

Voltive Cat6 Ethernet Cable, Plenum (CMP), Black, 1000ft - 23AWG 4 Pair Solid Bare Copper, UTP, 600MHz, UL Certified & ETL Verified - V-1234-6
- CAT 6 NETWORK CABLE. 23 gauge, 4 pair, solid copper conductors w/ spline, unshielded (UTP). 1, 2.5, and 5 Gigabit speeds up to 328ft, 10 Gigabit up to 180ft. ETL Verified. Tested to 600MHz. PoE & PoE+.
- OXYGEN-FREE COPPER. Oxygen-free copper (OFC) conductors result in less signal loss and are more durable than conductors made of copper-clad aluminum (CCA).
- PLENUM RATED. Plenum (CMP) fire safety rating for installation in walls, risers (between floors), and plenums in both residential and commercial applications. UL Certified/Listed.
- STANDARDS. Performance (ETL Verified): ANSI/TIA-568.2-D, ISO/IEC 11801-1, IEC 61156-5. Power over Ethernet: IEEE 802.3af/at. Fire safety: NFPA 262. Construction: UL 444, CSA 22.2 No. 214, RoHS.
- TIME SAVING FEATURES. Patented winding technology & massive payout hole eliminate kinks and tangles. Reinforced handles, super-durable cardboard, & water resistant coating keep the box intact. Jacket features ripcord, UL information, re-order part num
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Supports 1, 2.5, & 5 Gbit/s speeds up to 328ft and 10 Gbit/s up to 180ft.
Alternatives:
Spend less by using Cat 5e for applications which require less than 2.5 Gbit/s.Upgrade to Cat 6A for applications which require 10 Gbit/s speeds up to 328ft or to future proof your installation.
Cables packaged in our pull box feature a proprietary winding pattern and huge 4" payout hole which ensure the cable pays out straight, without kinks or snags.
Transmission PerformanceCategory 6 ANSI/TIA-568.2-DBandwidth1000BASE-T, 2.5GBASE-T, and 5GBASE-T up to 328 feet, 10GBASE-T up to 180 feet, sweep tested to 600MHzPower over Ethernet (PoE)IEEE 802.3af/at (PoE & PoE+)Fire RatingCMP (Plenum)UV Rated?NoDirect Burial Rated?NoTemperature Rating75°CVoltage Rating300VConductors23AWG Solid Bare CopperShielded?No U/UTPSpline (Internal Separator)?YesInsulation ColorsTIA Standard: Blue + White/Blue, Orange + White/Orange, Green + White/Green, Brown + White/BrownMax. Insulation Diameter0.95mmJacket Diameter5.6mmAdditional SpecificationsSee PDF data sheet below for full specifications Selecting the Right Cable for Your Project Category 6 Time Saving Features Patented Payout System Standards Compliant Detailed Specifications
Alternatives:
Spend less by using Cat 5e for applications which require less than 2.5 Gbit/s.Upgrade to Cat 6A for applications which require 10 Gbit/s speeds up to 328ft or to future proof your installation.
Cables packaged in our pull box feature a proprietary winding pattern and huge 4" payout hole which ensure the cable pays out straight, without kinks or snags.
Transmission PerformanceCategory 6 ANSI/TIA-568.2-DBandwidth1000BASE-T, 2.5GBASE-T, and 5GBASE-T up to 328 feet, 10GBASE-T up to 180 feet, sweep tested to 600MHzPower over Ethernet (PoE)IEEE 802.3af/at (PoE & PoE+)Fire RatingCMP (Plenum)UV Rated?NoDirect Burial Rated?NoTemperature Rating75°CVoltage Rating300VConductors23AWG Solid Bare CopperShielded?No U/UTPSpline (Internal Separator)?YesInsulation ColorsTIA Standard: Blue + White/Blue, Orange + White/Orange, Green + White/Green, Brown + White/BrownMax. Insulation Diameter0.95mmJacket Diameter5.6mmAdditional SpecificationsSee PDF data sheet below for full specifications Selecting the Right Cable for Your Project Category 6 Time Saving Features Patented Payout System Standards Compliant Detailed Specifications
