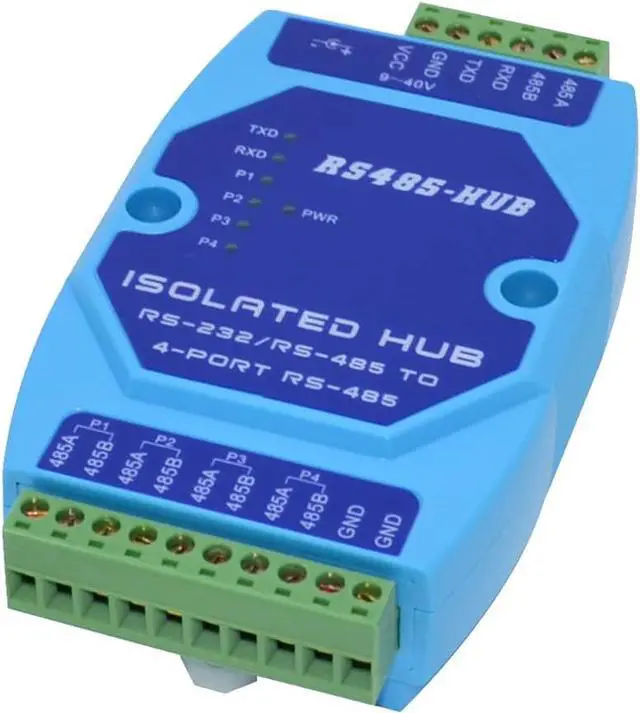

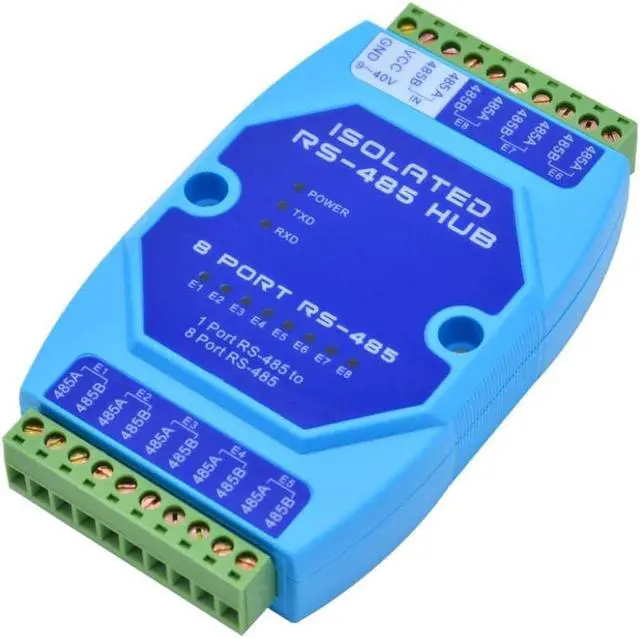

Taidacent 4/8 Way RS485 Hub RS485 Splitter 4/8 Ports RS485 Data Isolator 1 in 4CH/ 8CH Out Modbus 485 Industrial Photoelectric Isolation Repeater (4 Ports)
- Built-in photoelectric isolator and 600W surge protection It can provide 2500V isolation voltage, which can effectively suppress lightning and ESD, and can effectively prevent lightning strikes and common ground interference.
- Built-in CPU processor automatically senses channel data flow direction Automatically determine the channel status, automatically switch the enable control circuit, and easily solve the RS-485 transceiving conversion delay problem
- Using external power supply to provide wide voltage input Powered by an external power supply switching power supply, safe and reliable, suitable for outdoor use, providing DC9-40V wide voltage input

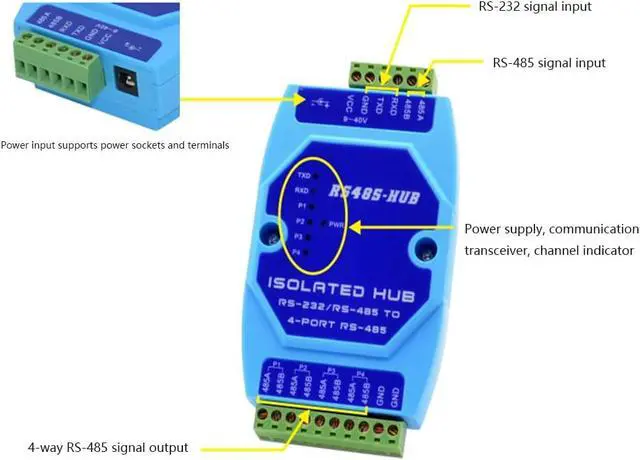

- Compatible with RS-485TIA/EIA standard Automatically send and receive data: RS-485 two-wire communication Input interface: 1 way RS-485 interface Output interface: 8-channel RS-485 interface Communication rate: 300BPS-115.2KBPS (adaptive) Working power supply: dc9-40V500ma
- Load capacity: RS485 can connect 256 devices per interf
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

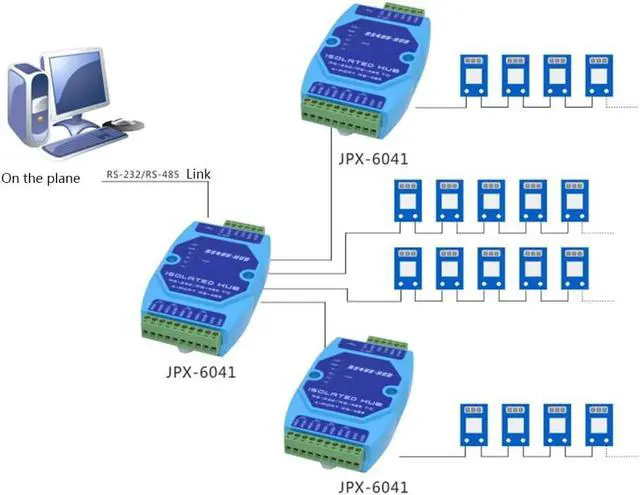

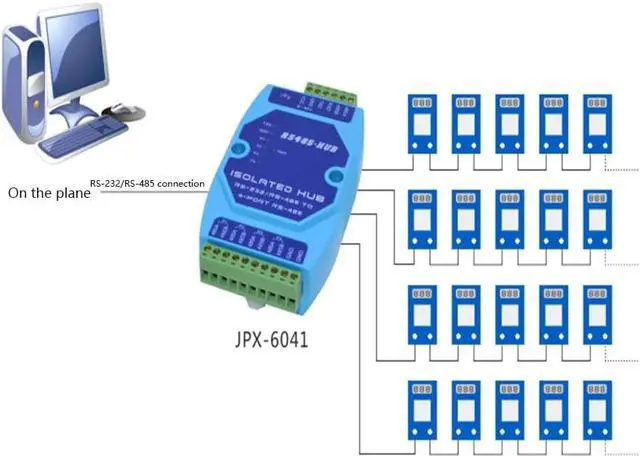

RS-485 bus splitter hub (HUB) designed for industrial automation communication, solving RS-485 bus star structure networking and solving RS-485 large system requirements in complex electromagnetic field environment. Support The transmission rate is up to 115.2 Kbps, the RS-485 interface uses opto-isolation technology, 600W lightning surge protection circuit, providing 1000V isolation voltage can effectively suppress The lightning protection and ESD protection RS-485 working mode adopts the discriminating circuit to automatically sense the data flow direction, and automatically switch the enabling control circuit to easily solve the RS-485 transceiving conversion delay problem. The RS-485 interface transmission distance is greater than 3000 meters. Stable performance. Widely used in highway toll collection systems, road monitoring systems and power collection systems, it is a data interface conversion product with excellent performance and excellent price.
