DRRI Right Angle M12 X-Coded 8 Pole to RJ45 10 Gbps Gigabit Ethernet Interface Cat 7e Shielded Cable for Cognex Cameras 30M
- Connector A: RJ45; Connector B: Right angle M12 8pole X-Coded screw lock connector

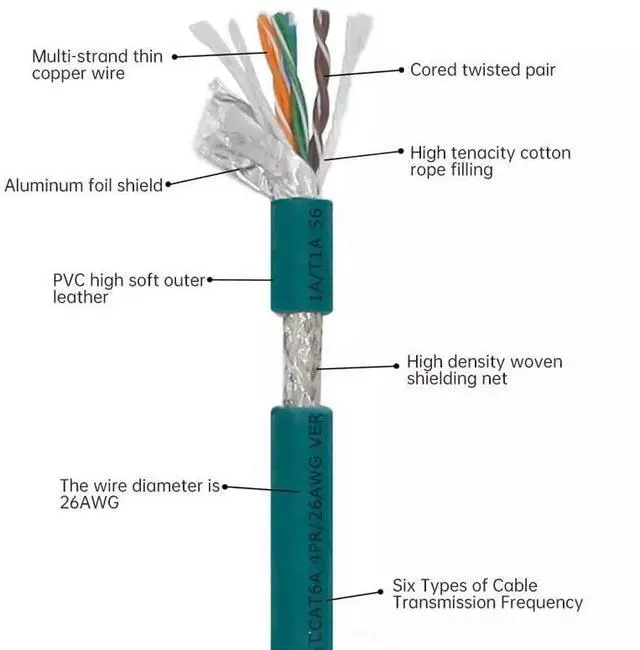

- Overall foil and braid shielded provides EMI/RFI protection;PUR jacket resists oil and other contaminants
- The industrial Ethernet X-coded connectors are ideal for industrial network applications in harsh environments.
- Cable Length:30M in stock.(30CM,1M,2M,3M,5M,8M,10M,15M ,20M,50M are available(other length you need,please contact us.we can customize)
- Cat 7e standard allows sending 10 Gigabit Ethernet over SSTP at a long distance, provides you the speedy and reliable signal.it is backward compatible with Cat6, Cat5 and Cat5e cable categories.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Gigabit Ethernet is quickly becoming the standard in industrial networking as more video applications, sensors, and other devices require faster, higher-volume voice, video, and data transfer.
M12 X-Code cables are a type of category 7e cable (CAT 7A), standardized twisted pair cables for Ethernet. Cat.7A cable is rated for transmission frequencies up to 1000 MHz and supports 10 Gbps.
The male M12 connector features X-code keying alignment which allows for blind-mating while the recessed pins within the die-cast metal shield prevent damage to the pins during coupling. Equipped with an overmolded housing, these tough cordsets and patchords are rated IP67 and can withstand harsh industrial environments where extreme vibration, shock, chemicals, and temperature are found.
M12 X-Code cables are a type of category 7e cable (CAT 7A), standardized twisted pair cables for Ethernet. Cat.7A cable is rated for transmission frequencies up to 1000 MHz and supports 10 Gbps.
The male M12 connector features X-code keying alignment which allows for blind-mating while the recessed pins within the die-cast metal shield prevent damage to the pins during coupling. Equipped with an overmolded housing, these tough cordsets and patchords are rated IP67 and can withstand harsh industrial environments where extreme vibration, shock, chemicals, and temperature are found.
