HDMI 2x1 Multi-Viewer Seamless Switch with PIP Function| Support Scaler UP&Down HDMI 1.3a Full HD 1080P | 4 Picture Mode | RS232 and Remote Control
- HDMI 2x1 Multi-Viewer Seamless Switcher With PIP function

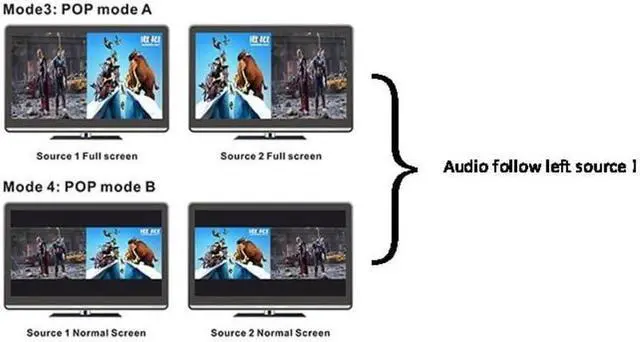

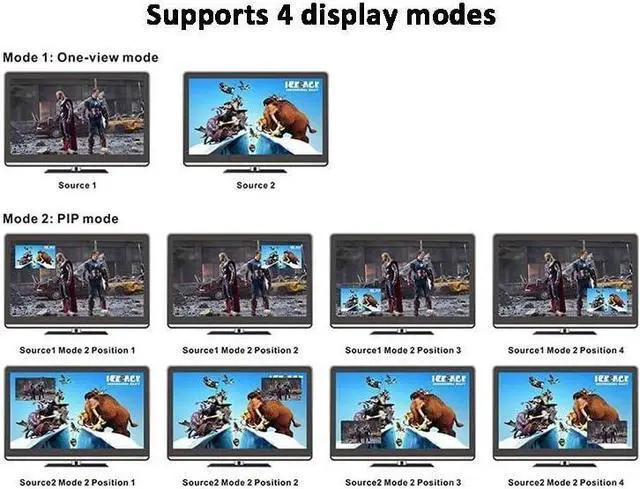

- Support multiplexed HDMI 2-input and 1-output and 4 display modes
- Connect to PC via RS232 tool, controlled via host-computer software(the software and 232 code list we will send through email if customer need)
- Support scaler up, scaler down function, reach Full HD 1080P(1080P,1080I,720P, 1024x768,1360x768 five resolution).
- With Remote control and RS232 cable, 1 year limited warranty by HUIERAV
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

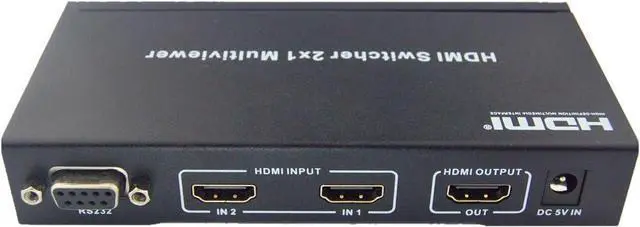

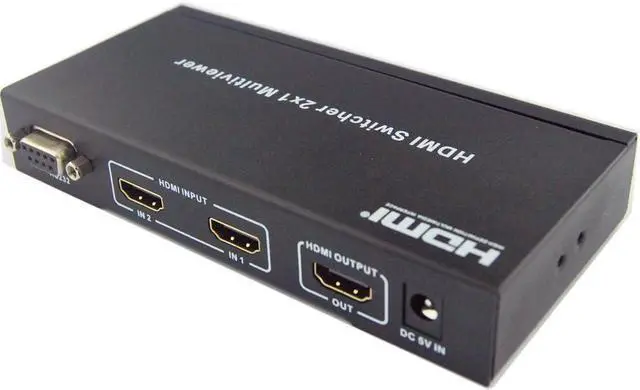

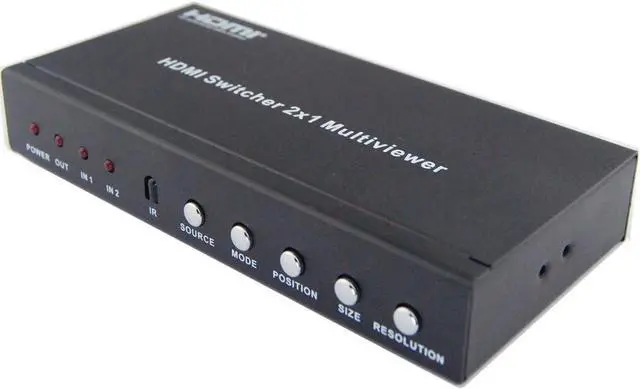

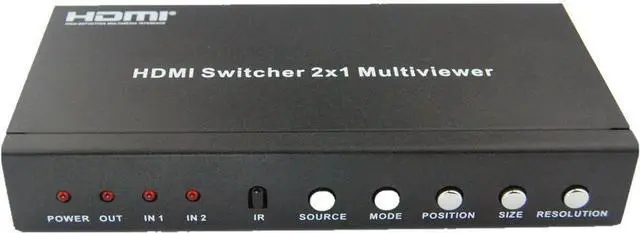

HDMI 2x1 Multi-Viewer Seamless Switcher With PIP |Support Scaler UP&Down HDMI 1.3a Full HD 1080P| 4 Picture Mode| RS232 Control
Features:
1.Compliant with HDMI 1.3a,HDCP 1.2
2.Supports multiplexed HDMI 2-input and 1-output and 4 display modes
3.Supports up to 1080p High Definition resolution
4.Support scaler up, scaler down function
5.Support multi output resolution
6.Support digital audio format LPCM/AC3/DTS
Specifications:
1.Video Bandwidth: 225MHz[6.75Gbps]
2.Input Ports: 2 × HDMI (Female type)
3.Output Ports: 1 × HDMI (Female type),
4.Audio output: PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1
5.Input Resolution: 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz,
1080i50/60Hz,1080p24/30/50/60Hz,800x600@60,1024x768@60,1280x720@60,1920x1080@60;
6.Output Resolution: 1080p,1080i,720p,1024x768,1360x768
7.ESD Protection Human Body model:±8 kV (air-gap discharge)±4 kV (contact discharge)
8.Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
9.Dimensions: 70 mm (W)×140mm (D)×25 mm (H)
10.Weight: 300 g
11.Chassis Material: Metal
12.Silkscreen Color: Black
13.Operating Temperature: 0 °C~40 °C/ 32 °F~104 °F
14.Relative Humidity: 20~90 % RH (non-condensing)
15.Power Consumption (Max): 10W
Packing:
1. HDMI 2x1 Multi-Viewer 1pcs
2. Power Adaptor 1pcs
3. Remote Control 1pcs
4. User Manual 1pcs
Warranty:
1 Year Limited Warranty by HUIERAV
Features:
1.Compliant with HDMI 1.3a,HDCP 1.2
2.Supports multiplexed HDMI 2-input and 1-output and 4 display modes
3.Supports up to 1080p High Definition resolution
4.Support scaler up, scaler down function
5.Support multi output resolution
6.Support digital audio format LPCM/AC3/DTS
Specifications:
1.Video Bandwidth: 225MHz[6.75Gbps]
2.Input Ports: 2 × HDMI (Female type)
3.Output Ports: 1 × HDMI (Female type),
4.Audio output: PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1
5.Input Resolution: 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz,
1080i50/60Hz,1080p24/30/50/60Hz,800x600@60,1024x768@60,1280x720@60,1920x1080@60;
6.Output Resolution: 1080p,1080i,720p,1024x768,1360x768
7.ESD Protection Human Body model:±8 kV (air-gap discharge)±4 kV (contact discharge)
8.Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
9.Dimensions: 70 mm (W)×140mm (D)×25 mm (H)
10.Weight: 300 g
11.Chassis Material: Metal
12.Silkscreen Color: Black
13.Operating Temperature: 0 °C~40 °C/ 32 °F~104 °F
14.Relative Humidity: 20~90 % RH (non-condensing)
15.Power Consumption (Max): 10W
Packing:
1. HDMI 2x1 Multi-Viewer 1pcs
2. Power Adaptor 1pcs
3. Remote Control 1pcs
4. User Manual 1pcs
Warranty:
1 Year Limited Warranty by HUIERAV
