20 Meters 1500V Solar Photovoltaic Wire Red Black Single Core 4mm2/6mm2 12/10AWG Cable Tinned Copper XLPE Jacket for PV Panels(4mm2 12AWG)

Cables

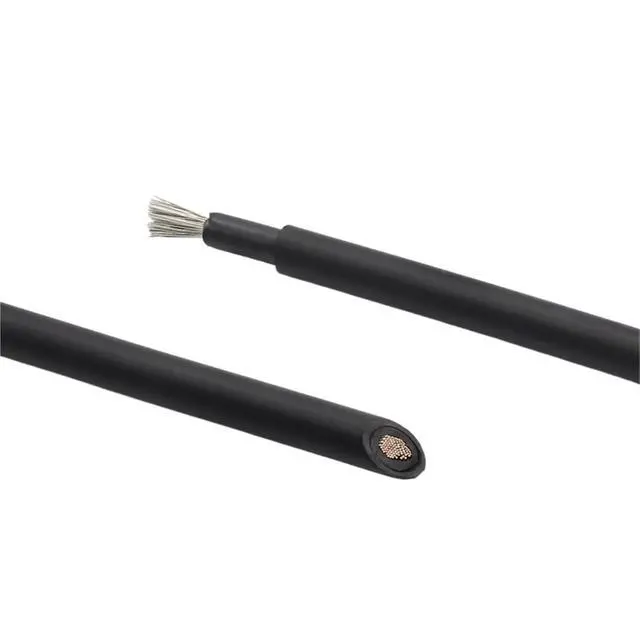

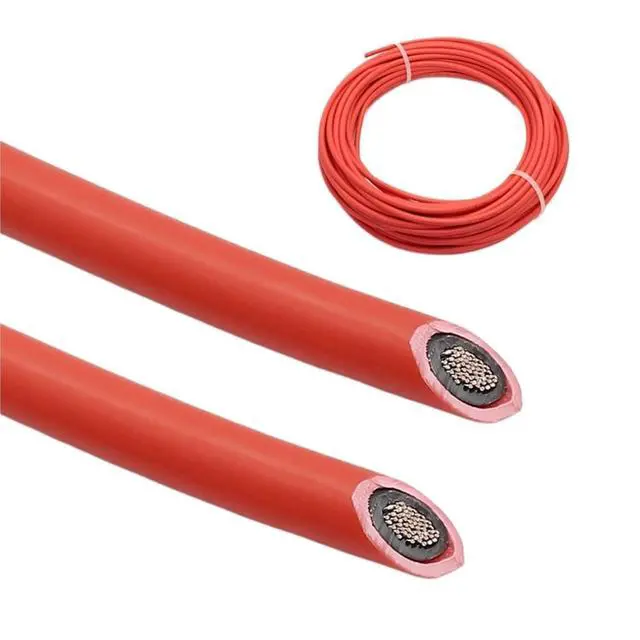

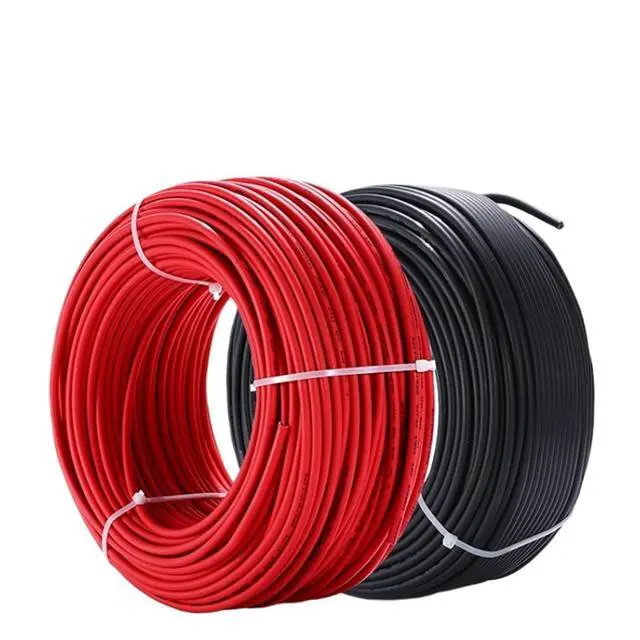

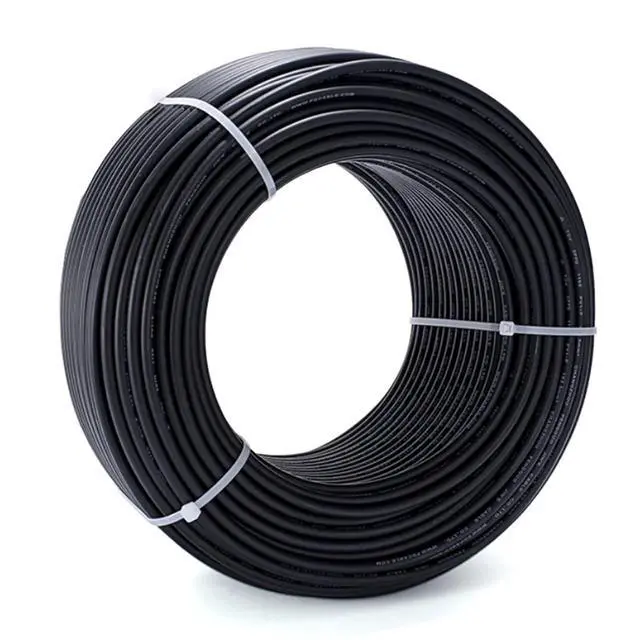

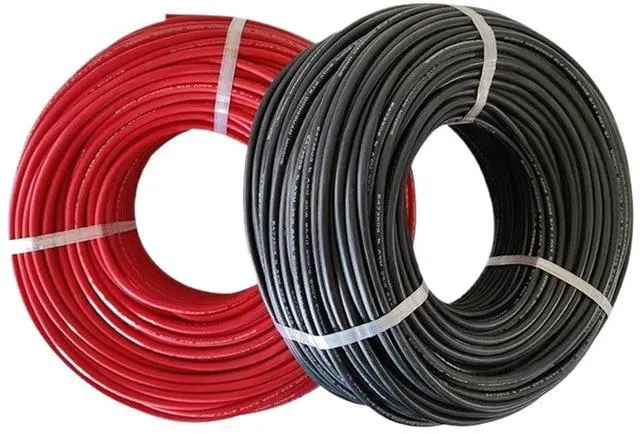

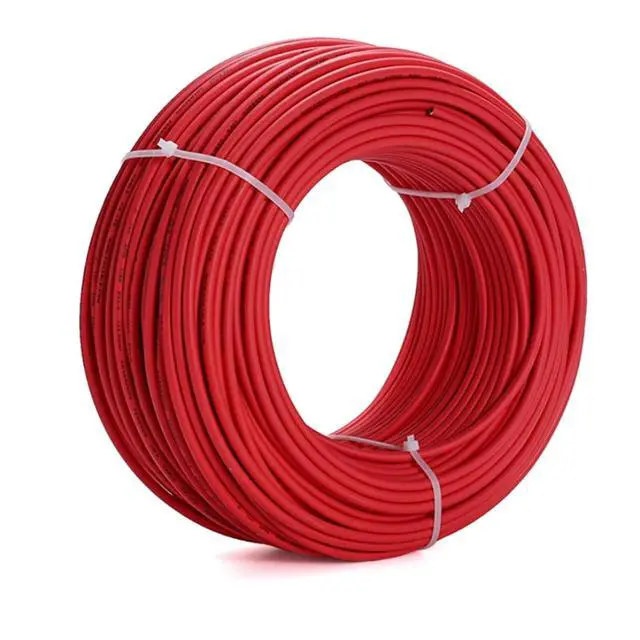

20 Meters 1500V Solar Photovoltaic Wire Red Black Single Core 4mm2/6mm2 12/10AWG Cable Tinned Copper XLPE Jacket for PV Panels
Products Packing:
4mm2: 20m Black+20m Red
6mm2: 20m Black+20m Red
Products Description:
1,Conductor: Stranded, tinned copper,
2,Inner insulation: XLPE
3,Outer jacket: PVC
4,Color: Black and Red
Technical specification:
1,Nominal voltage: 600/1000V AC
2,Test voltage: AC 2.5 KV
3,Temperature rating: -40°C~90°C wet or dry,
4,Ambient temperature :> 25 years (TUV) -40°C~ + 90°C
Material propertied/standards:
1,Fire performance: IEC 62930
2,Smoke emission: IEC 62930
3,Low fire load: DIN 51900
4,Approvals: TUV & UL
==========
Jacket : PVC
Conductor Material : Copper
Application : Industrial
Type : Low Voltage
Insulation Material : XLPE
Model Number : 4mm2 6mm2 Cable
Color : Red/Black
Size : 12/10/AWG 4mm2/6mm2
Packing : Red+Black
