10-Pack RJ45 Cat6A Slim Profile UTP Unshielded Keystone Jack (Yellow)
- 90-degree punch-down installation snap-in Cat. 6A RJ45 keystone jack
- Small size best for 3-port and 6-port high-density wall plates and patch panels
- Wire IDC suitable for 23 to 26AWG solid and stranded wires
- Nickel-plate plug contacts with 50u gold-plated for low-loss data transmission
- Pointed wire IDC for fast and easy separating color-coded wires installation
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

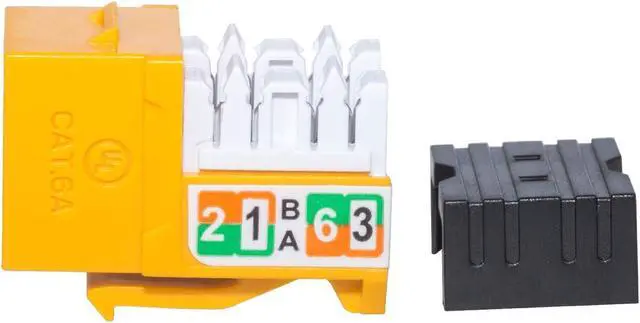

LINKOMM RJ45 Slim Profile Series of Keystone Jack

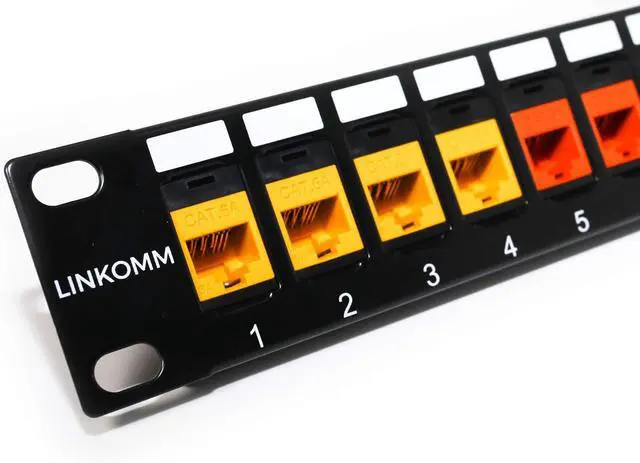

LINKOMM Slim Profile Keystone Jack is a 90-degree wire connection and slim profile for high-density Ethernet cabling installation. It is commonly used onto 3-port, 6port wall plates and 1 Unit 48-Port patch panels. It can be mounted onto surface mount boxes, keystone wall plates, or patch panels. T568A and T568B wiring map are labeled and easy to read. The strong and fire-retardant plastic housing features guarantee the best quality.
Material
- Jack Housing: ABS+PC UL 94V-0
- Jack Contact Bracket: PBT and Glass Fiber, UL 94V-0
- Jack Contact Material: Phosphor Bronze with Nickel Plated
- Jack Contact Finish: 50 micro-inch Gold plated on Plug contact
- IDC Housing: PC UL 94V-2
- IDC Terminal: Phosphor Bronze with Tin Plated
- PCB: FR4, UL 94V-0
Performance
- T568A & T568B wiring
- Insertion Force: 20N max. (IEC 60603-7-4)
- Retention Strength: 7.7kg between jack and plug
- Operation Temperature -10 to 60 (ISC/IEC 11801, ANSI/TIA 568 C.2)
- Jack Mating Cycles: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4)
- IDC: Suitable for 23-26AWG stranded and solid wire, compatible with 110 punch down tool
- Transmission performance is in compliance with ANSI/TIA 568 C.2 standard
LINKOMM Slim Profile Keystone Jack is a 90-degree wire connection and slim profile for high-density Ethernet cabling installation. It is commonly used onto 3-port, 6port wall plates and 1 Unit 48-Port patch panels. It can be mounted onto surface mount boxes, keystone wall plates, or patch panels. T568A and T568B wiring map are labeled and easy to read. The strong and fire-retardant plastic housing features guarantee the best quality.
Material
- Jack Housing: ABS+PC UL 94V-0
- Jack Contact Bracket: PBT and Glass Fiber, UL 94V-0
- Jack Contact Material: Phosphor Bronze with Nickel Plated
- Jack Contact Finish: 50 micro-inch Gold plated on Plug contact
- IDC Housing: PC UL 94V-2
- IDC Terminal: Phosphor Bronze with Tin Plated
- PCB: FR4, UL 94V-0
Performance
- T568A & T568B wiring
- Insertion Force: 20N max. (IEC 60603-7-4)
- Retention Strength: 7.7kg between jack and plug
- Operation Temperature -10 to 60 (ISC/IEC 11801, ANSI/TIA 568 C.2)
- Jack Mating Cycles: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4)
- IDC: Suitable for 23-26AWG stranded and solid wire, compatible with 110 punch down tool
- Transmission performance is in compliance with ANSI/TIA 568 C.2 standard
