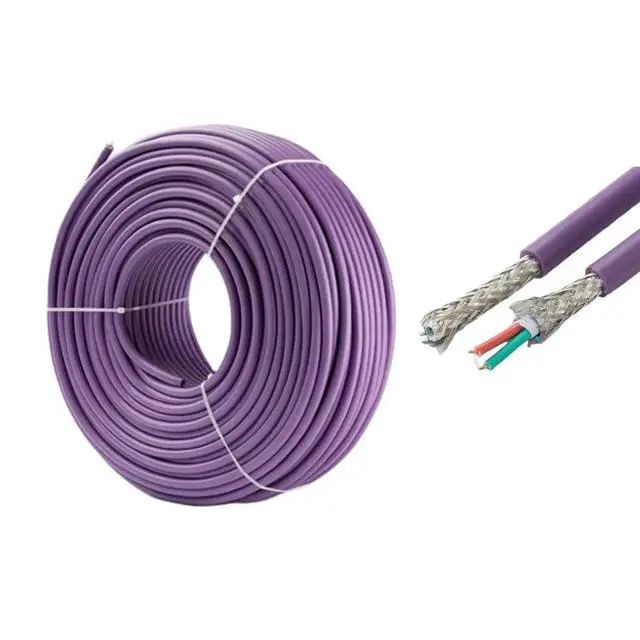

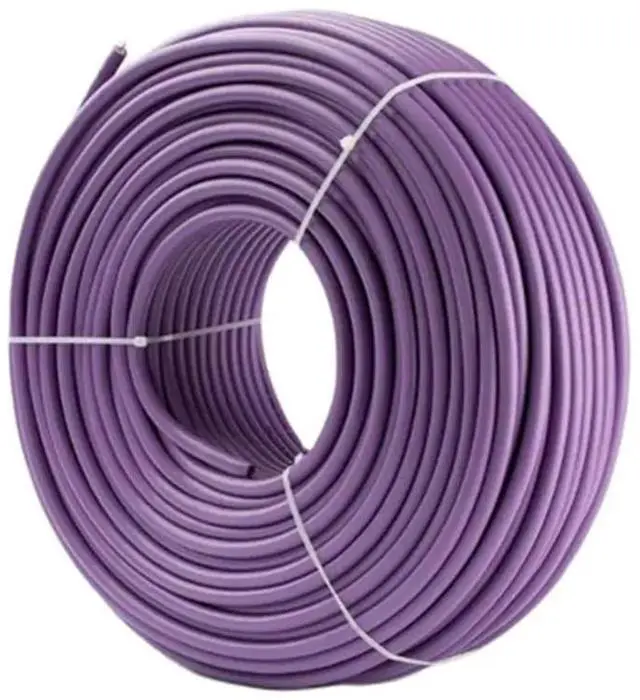

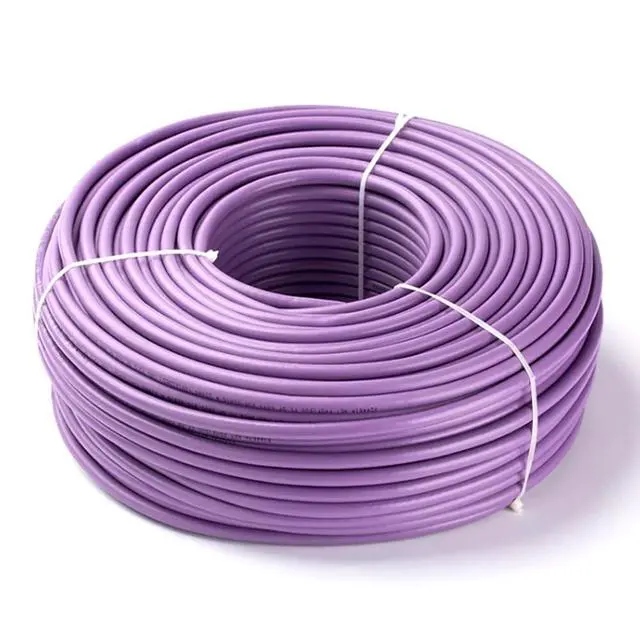

Profibus DP Bus Cable 6XV1830-3EH10 6XV1830-0EH10 2-core RS485 Shielded Multi-Stranded Wire (30 Meters, Purple)
- 1. Profibus DP fast connection standard cable, bus cable radial symmetrical design, allowing the use of stripping tools, can quickly and easily assemble the bus connector. Standard bus cables are specifically designed for assembly.
- 2. Solid bare copper wire conductor, 2 core and synthetic pair, the core line is red and green.
- 3. Aluminum foil, bare metal wire braided double shield, PVC outer sheath.
- 4. Comply with VDE 0472 standard; Class B test (IEC332.1).
- 5. Working parameters: single line transmission specifications: 1000m, plus repeater can be extended to 10000m
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Profibus DP fast connection standard cable, bus cable radial symmetrical design, allowing the use of stripping tools, can quickly and easily assemble the bus connector. Standard bus cables are specifically designed for assembly.Comply with VDE 0472 standard; Class B test (IEC332.1).Working parameters: single line transmission specifications: 1000m, plus repeater can be extended to 10000m

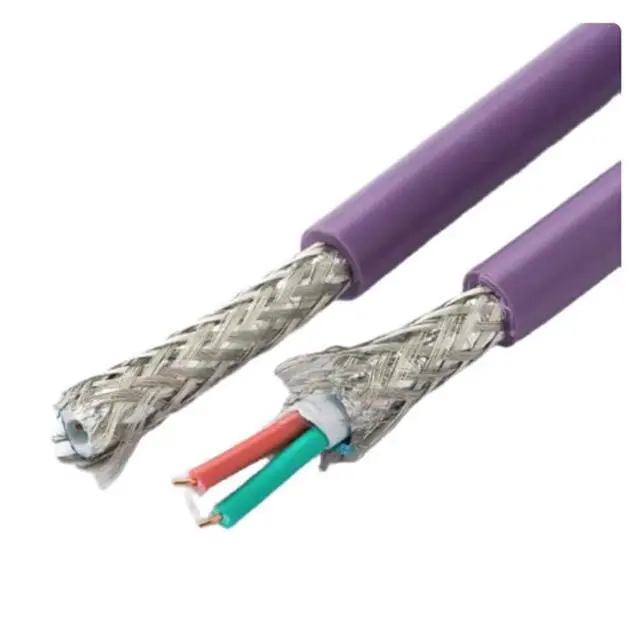

Solid bare copper wire conductor, 2 cores and synthetic pair, the core line is red and green.
Aluminum foil, bare metal wire braided double shield, PVC outer sheath.
6XV1830-0EH10(2-cores, Purple)
6XV1830-3EH10(2-cores, Blue)
6XV1840-2AH10(4-cores, Green)
Color of the cores
Red and Green
Color of the cores
Red and Green
Color of the cores
Red, White, Yellow and Blue
Number of the cores
2 cores
Number of the cores
2 cores
Number of the cores
4 cores
6XV1830-0EH10 Purple 2cores Compatible with Siemens Profinet Industrial Ethernet Siemens compatible cables
Solid bare copper wire conductor, 2 cores and synthetic pair, the core line is red and green.
Aluminum foil, bare metal wire braided double shield, PVC outer sheath.
6XV1830-0EH10(2-cores, Purple)
6XV1830-3EH10(2-cores, Blue)
6XV1840-2AH10(4-cores, Green)
Color of the cores
Red and Green
Color of the cores
Red and Green
Color of the cores
Red, White, Yellow and Blue
Number of the cores
2 cores
Number of the cores
2 cores
Number of the cores
4 cores
6XV1830-0EH10 Purple 2cores Compatible with Siemens Profinet Industrial Ethernet Siemens compatible cables
