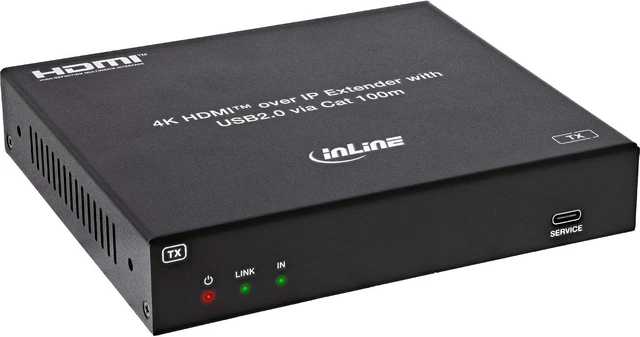

Inline HDMI KVM Extender Over IP Transmitter, 4K 60 Hz, 100 m

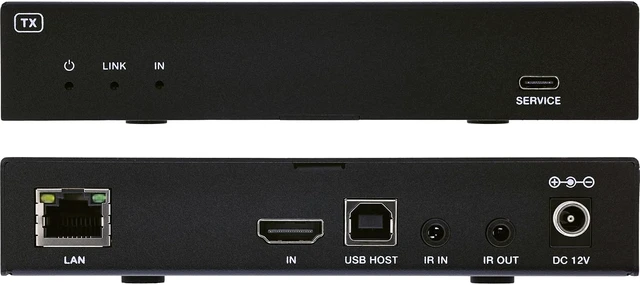

The InLine HDMI KVM Extender over IP Transmitter is the transmitting unit of an HDMI KVM-over-IP system and is operated exclusively in conjunction with the InLine® receiver unit item 57886H. It connects to an HDMI signal source and feeds HDMI, USB and IR signals into an IP-based 1-Gigabit network.
The system supports a maximum resolution up to 4K @ 60Hz with 4:4:4 color sampling and video bandwidth of up to 18 Gb/s. Common HDR formats and current HDCP versions are supported.

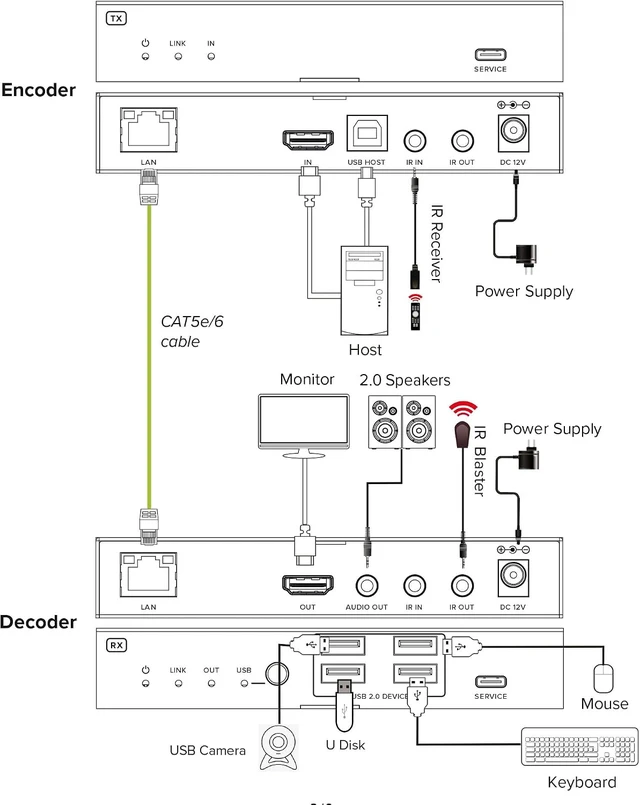

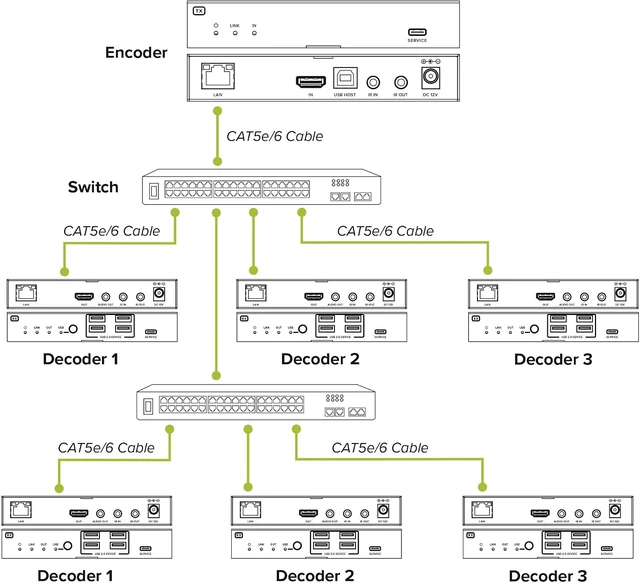

It can be operated as a direct point-to-point connection or via a suitable network switch with Gigabit support. Multiple receiver units output identical image, USB and IR signals without the need for manual assignment. In addition to HDMI transmission, USB 2.0 signals for KVM operation and bi-directional IR control signals are transmitted. Firmware updates and system functions are conveniently done via the integrated service port.


Video
HDMI Standard: HDMI 2.0b
Maximum video bandwidth: 18 Gb/s
HDCP standard: HDCP 2.3 / 2.2 / 1.x
Maximum resolution: up to 4K @ 60Hz (4:4:4)
Colour depth: 8 / 10 / 12 bit, at 4K @ 60 Hz (4:4:4) to 8 bit
Colour spaces: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
HDR formats: HDR10, HDR10+, Dolby Vision, HLG
Audio
Supported audio formats via HDMI: LPCM 7.1CH, Dolby Digital 5.1, Dolby True HD, Dolby Atmos, DTS-HD Master, DTS:X
USB.
USB transmission: USB 2.0.
Network
Network bandwidth: 1000 Mb/s
Transmission distance: up to 100 m over CAT6 cable recommended
IR
IR frequency range: 20 kHz to 60 kHz (wideband).
IR transmission: bi-directional.
Mechanical and environmental data.
Case material: metal.
Colour: black.
Operating temperature: 0°C to +40°C.
Storage temperature: -20°C to +60°C.
Operating Humidity: 20-80% Non-condensing
Permissible humidity (storage): 10-90%, non-condensing
Power supply (external).
Input: AC 100-240V / 50-60Hz
Output: DC 12.0 V / 1.0 A.
Output power: max. 12.0 W.
Average operating efficiency (230 V / 50 Hz): 83.13%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Low load efficiency (10%) (230V / 50Hz): 76.80%
Box contents:
1 x HDMI KVM Extender over IP - Transmitter (Main Unit)
1 x IR transmitter cable (1.5 m).
1 x IR receiver cable (1.5 m).

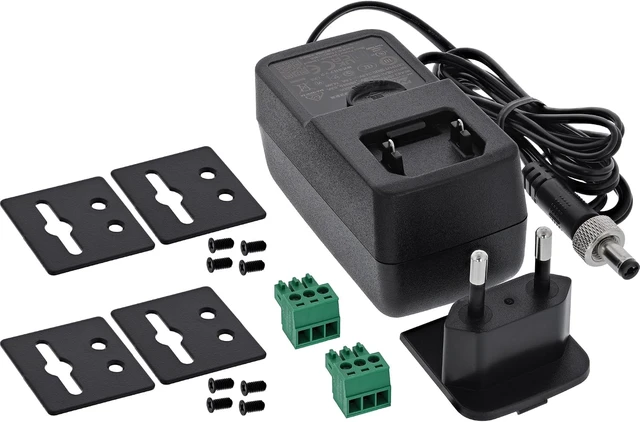

1 x power supply (DC 12.0 V / 1.0 A, lockable).
2 x mounting brackets.
4 x screws (M3 x 6).
1 x user manual (German/English).
