Inline HDMI KVM Extender Over IP Transmitter, Full HD, USB KVM, IR
- HDMI KVM over IP transmitter: It is used to feed Full HD picture signals and USB control signals into an HDMI KVM over IP system.
- Central system source: Computer, server or media player are connected directly to the transmitter and operated centrally.
- Scalable Multiple Receiver Operation A single transmitter can supply multiple compatible receiver units simultaneously with identical image and control signal.
- Integrated KVM and IR function: USB control signals and infrared commands are reliably transmitted between receiver and host system.
- Flexible network integration: Operate as a direct point-to-point connection or via a suitable network switch with Gigabit support.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

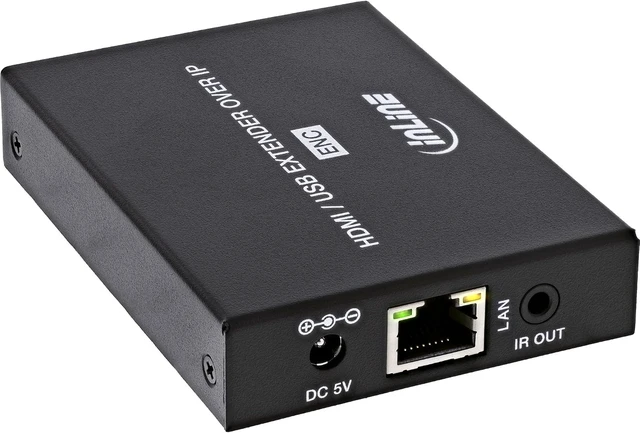

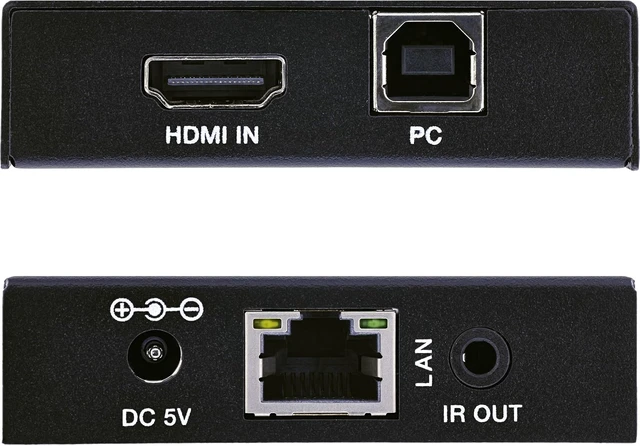

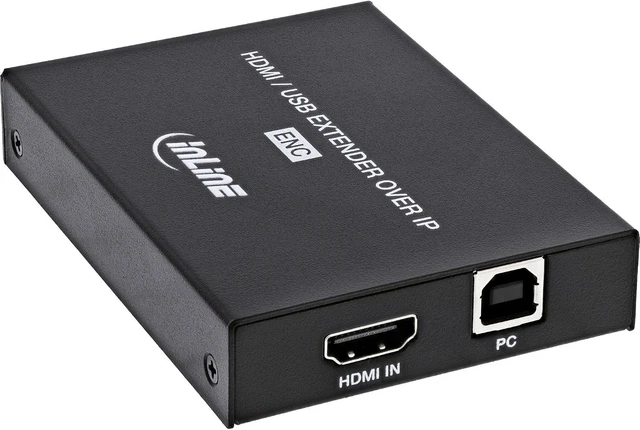

The InLine HDMI Full HD KVM Extender over IP transmitter is the transmitting unit of an HDMI KVM over IP system and is used to feed HDMI image signals as well as USB control signals into an IP-based network. The transmitter connects directly to a computer, server or media player and transmits image and control signals to one or more receiver units. Connected receiver units allow monitors, USB keyboards and USB mice to be operated in remote workstations. In addition, the transmitter supports the transmission of infrared control signals, so that the connected HDMI signal source can be operated from a distance.

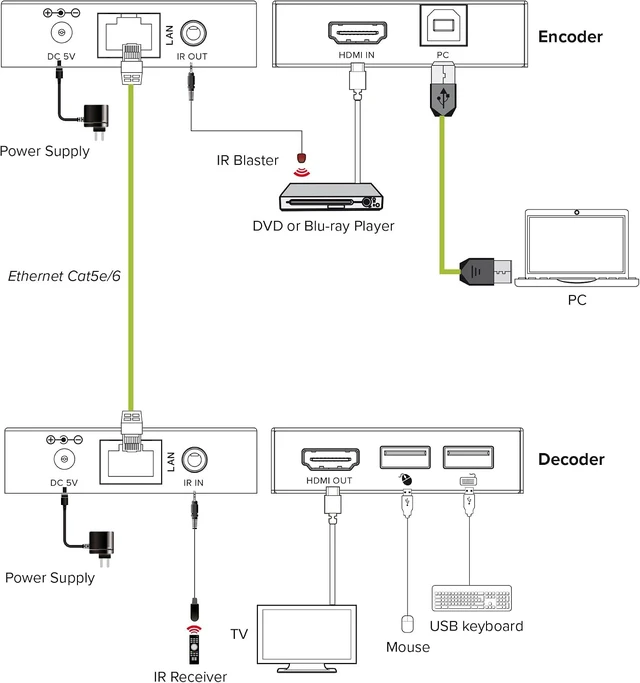

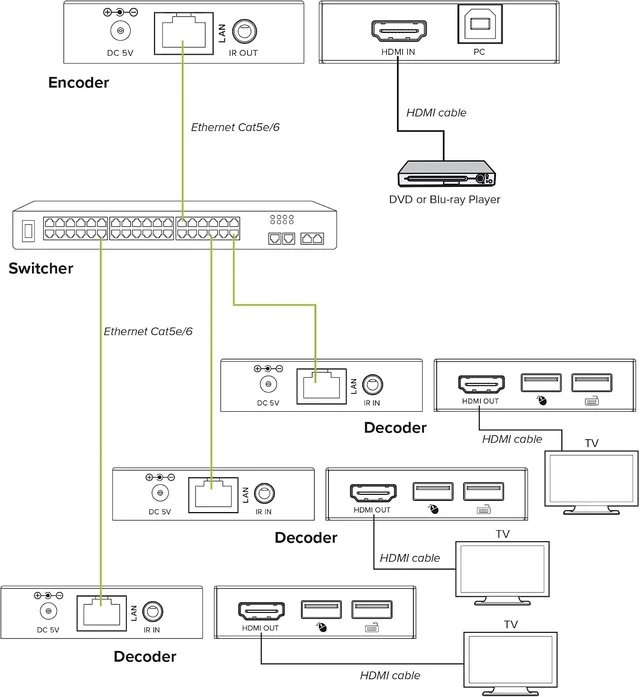

Operation is carried out exclusively in conjunction with the InLine HDMI-KVM-over-IP receiver unit item 57885L. The connection can be realized as a direct point-to-point link or via a suitable network switch with Gigabit support. Independent use of the transmitter is not provided. When networked the transmitter can power multiple receiver units simultaneously, all of which output the same image and control signal.
Video
Connectivity technology: HDMI over IP (H.265)
HDMI Standard: HDMI 1.4
HDCP standard: HDCP 1.4
Maximum video bandwidth: 6.75 Gb/s
Maximum input resolution: 1920 x 1200 @ 60Hz
Colour spaces: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Colour depth: 8 / 10 / 12 bit
Audio
Audio transmission: via HDMI
Supported audio format: LPCM 2.0
Sampling rates: 32 / 44.1 / 48 kHz.
USB / KVM
USB Standard: USB 1.1
USB function: forwards keyboard and mouse control data to the connected host system
Network
Network interface: 1 x RJ45 (Gigabit Ethernet)
Network operation: Direct connection or operation via suitable network switch with Gigabit support
IR
IR transmission: one-way (from receiver to transmitter)
Supported IR frequency range: 20KHz to 60KHz
Mechanical and environmental data.
Case material: metal.
Colour: black.
Operating temperature: -10°C to +50°C.
Storage temperature: -20°C to +60°C.
Permissible humidity: 20-90% non-condensing
Power supply (external).
Input: AC 100-240V / 50-60Hz
Output: DC 5.0 V / 1.0 A.
Output power: max. 5.0 W.
Average operating efficiency (230 V / 50 Hz): 79.70%
Power consumption at zero load (230 V / 50 Hz): 0.09 W
Low load efficiency (10%) (230V / 50Hz): 76.78%
Box contents:
1 x HDMI KVM Extender over IP - Main Unit (Transmitter)
1 x IR transmitter cable (1.5 m).
1 x power supply (DC 5.0 V / 1.0 A).
1 x user manual (German/English).
