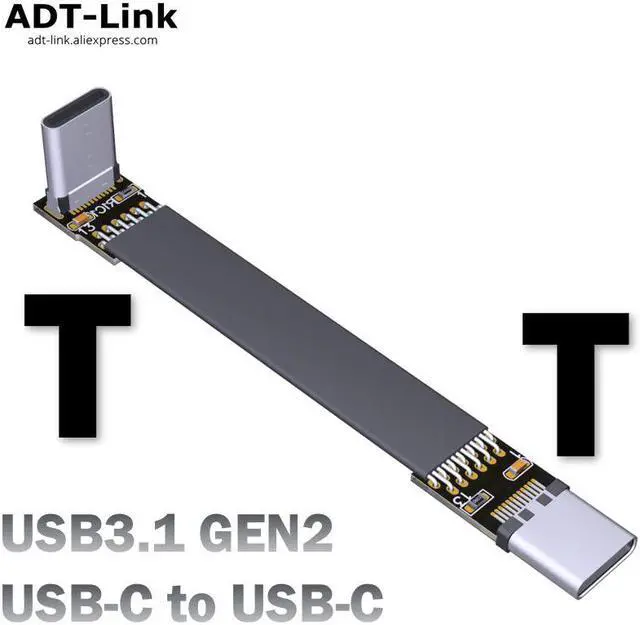

Shield FPV USB 3.1 Type C To Type C Extension Cable 90 degree Adapter FPC Ribbon Flat USB C Cable 3A 10Gbps EMI shielding

ADT- USB 3.1 type C to USB 3.1 Type C Flat Cable

Brand name: ADT-

Product name: USB 3.1 flat Cable

Product model: USS series

Transfer speed: support of increased bandwidth up to 10Gbps

Current capacity: 3A (Length within 50cm supports 3A, within 2m supports 1.5a)

Wire length: 3 ~ 300 cm, the length can be customized,

Application:  GPS navigator, Pi 4 raspberry Pi microcontroller development board, built-in USB device extension switch use, convenient for brushless head, steering engine head, small s head, SLR handheld head USB power supply and AV transmission and so on

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 40cm black arrow in the figure below.

Product advantages:

Material advantages: use German patented imported wire, use high quality gold-plated connectors, high frequency support HDMI 2.0 stable transfer. PCB uses high-quality low-resistance high-quality materials, PCB workmanship precision, PCB uses high TG sheet, copper thickness is thickened to 1oz; connector gold-plated conductive performance, can reduce the black screen blue screen splash caused by increased oxidation rust resistance Flower screen problem.

Design advantages: differential signal without via design, no CAF micro short circuit phenom, high speed signal transmission without parasitic capacitance and parasitic inductance signal attenuation interference problem, power circuit enhanced wiring design, PCB board miniaturization design, can reduce mechanism interference , no card hardware, product installation is easy.

Q&A:

Photo:
