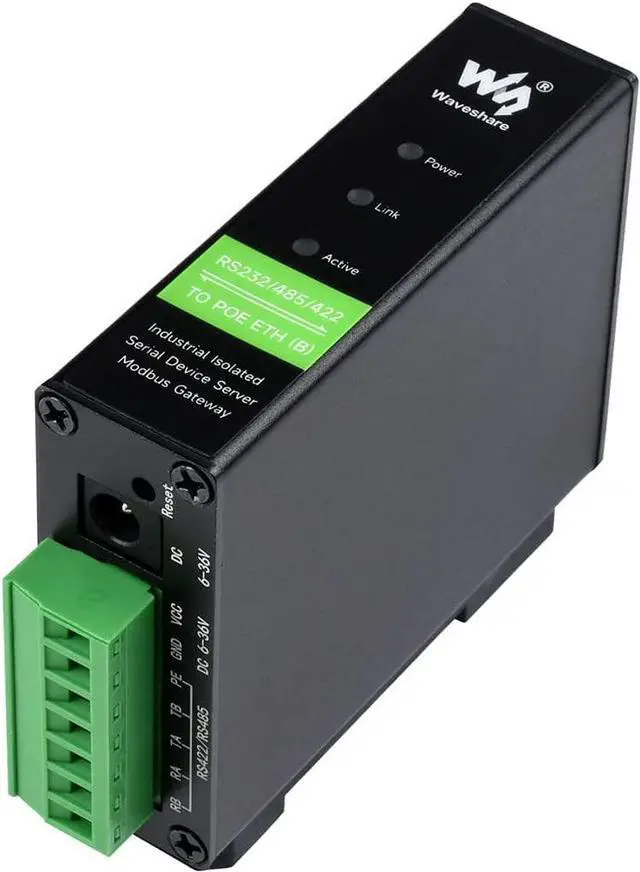

waveshare RS232/485/422 to RJ45 Ethernet Converter, TCP/IP to Serial, Modbus Gateway Support, Industrial Isolated Rail-Mount RS232/485/422 Serial Server with POE Function, Multi Communication Modes

Overview

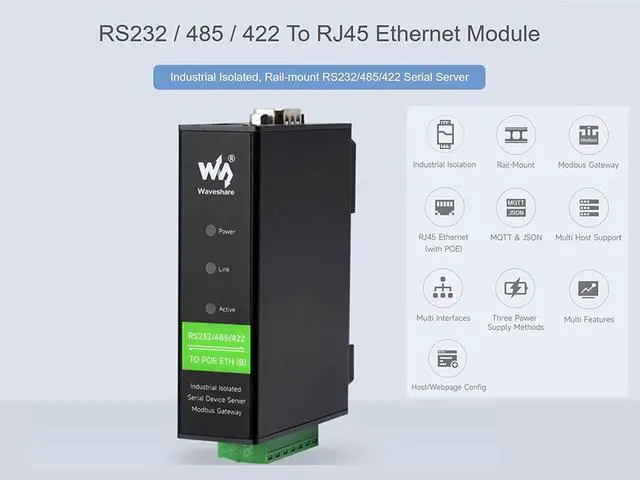

Rail-Mount Serial Server, RS232/485/422 to RJ45 Ethernet Module, TCP/IP to serial, With POE Function

Specifications
Product type---- Serial server, Modbus Gateway, MQTT Gateway

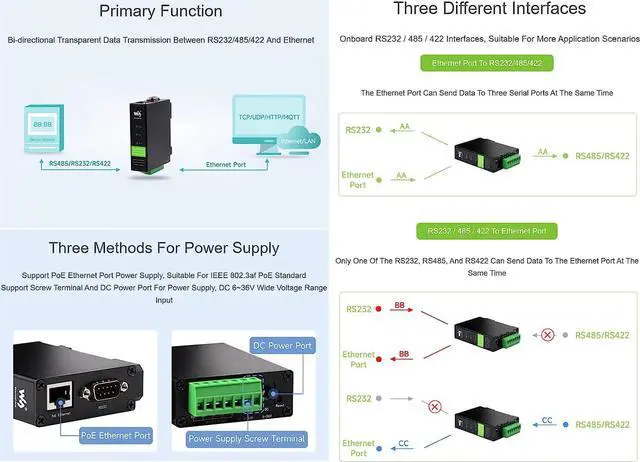

Primary function---- Bi-directional transparent data transmission between RS232/485/422 and Ethernet
Communication interface---- RS232 port × 1; RS485 port × 1; RS422 port × 1; Ethernet port × 1
Power supply---- DC power port, 6 ~ 36V DC screw terminal, or PoE port

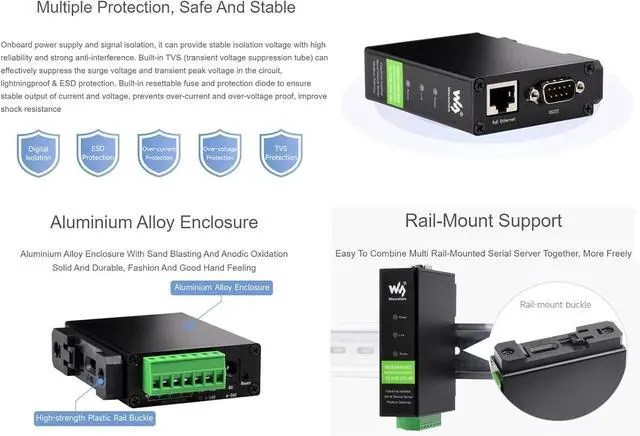

Isolation protection---- Power isolation, Signal isolation

Communication interface
Ethernet---- PoE network port, support IEEE 802.3af standard, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port---- Isolated RS232/485/422

Serial parameters
Baud rate---- 300 ~ 115200 bps
Parity bit---- none, odd, even, mark, space
Data bits---- 5 ~ 9 bits
Flow Control---- no flow control

Software
Protocol---- ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS

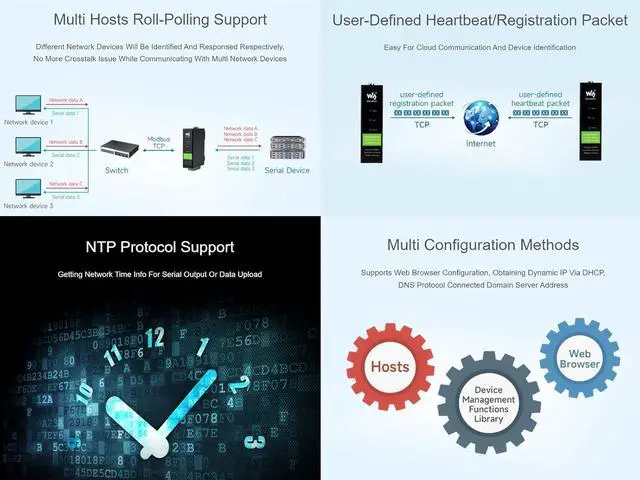

Configuration method---- host, web browser, device management functions library
Communication method---- TCP/IP direct communication, VCOM

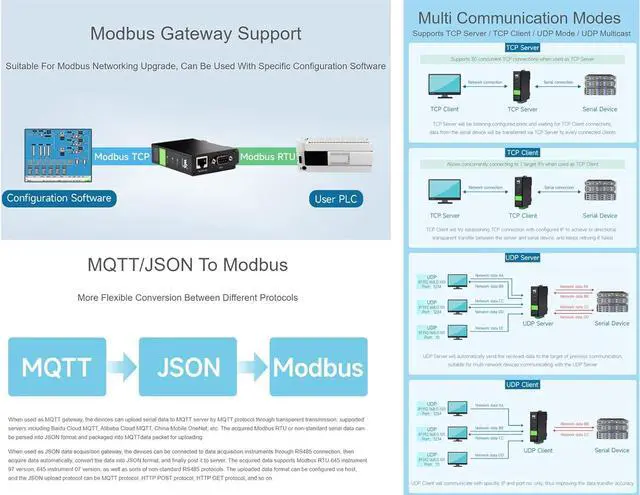

Operating mode---- TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast

Other
Operating temperature---- -40 ~ 85
Humidity range----5% ~ 95% relative humidity

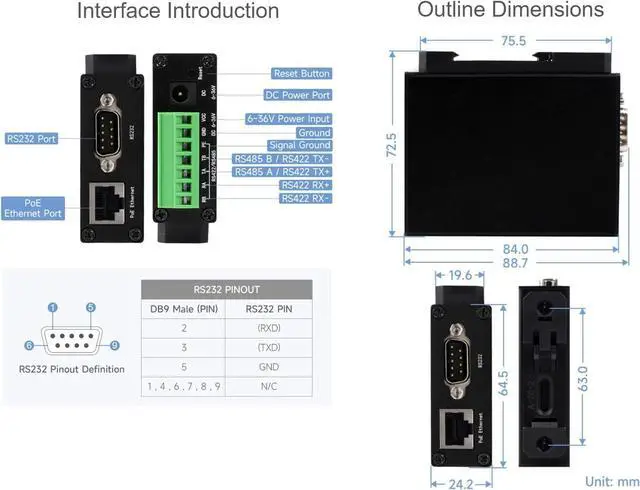

Dimensions---- L × W × H: 88.7 × 64.5 × 24.2 mm

Package Content
1. RS232/485/422 TO POE ETH (B) x1

NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
