Waveshare 2-Ch RS485 to RJ45 Ethernet Serial Server, Dual Channels RS485 Independent Operation, Rail-Mount Industrial Isolated Serial Module, PoE Ethernet Port

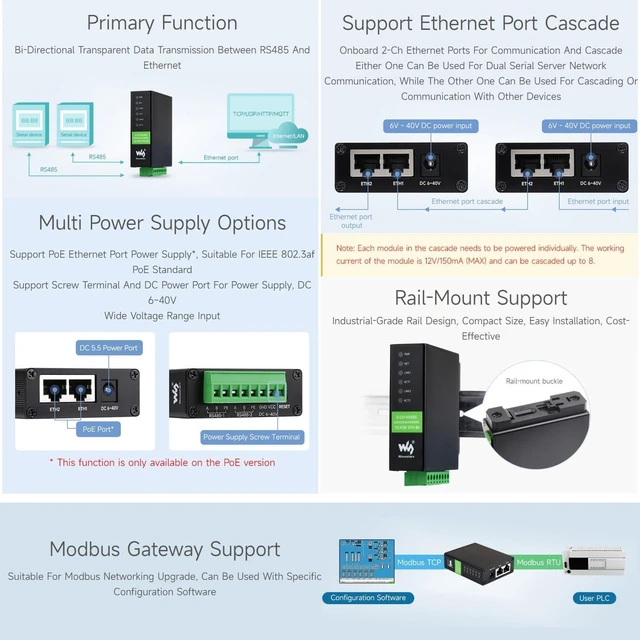

This is a 2-ch RS485 device data acquisitor / IoT gateway designed for the industrial environment. Dual RS485 can work simultaneously without interfering with each other. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, and network switch. The module features dual RS485 and dual Ethernet ports (PoE function optional), uses a DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal for power input. The case with rail-mount support, is small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.

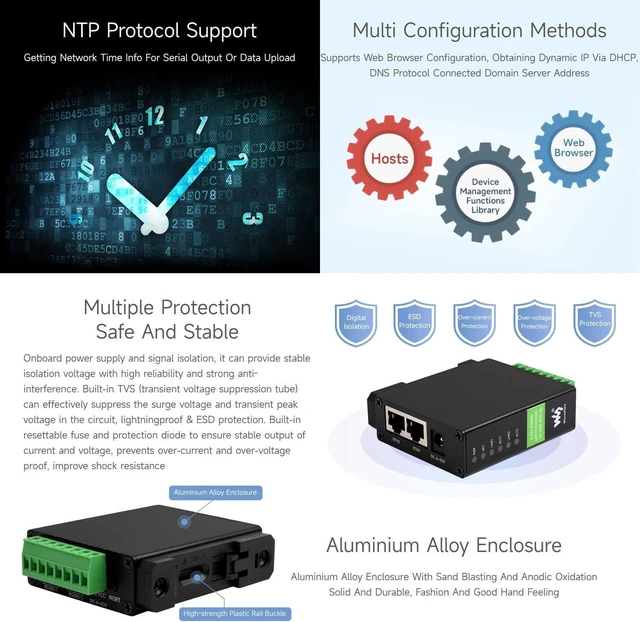

Getting Network Time Info For Serial Output Or Data Upload
Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP, DNS Protocol Connected Domain Server Address
Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock proof performance
Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation Solid And Durable, Fashion And Good Hand Feeling
2-Ch RS485 To RJ45 Ethernet Serial Server, Dual Channels RS485 Independent Operation, Dual Ethernet Ports,Rail-Mount Industrial Isolated Serial Module Features At A Glance NTP Protocol Support Multi Configuration Methods Multiple Protection, Safe And Stable Aluminium Alloy Enclosure
