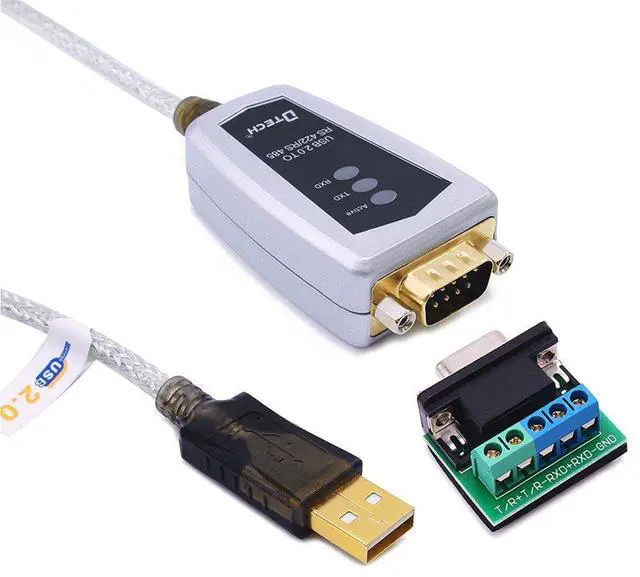

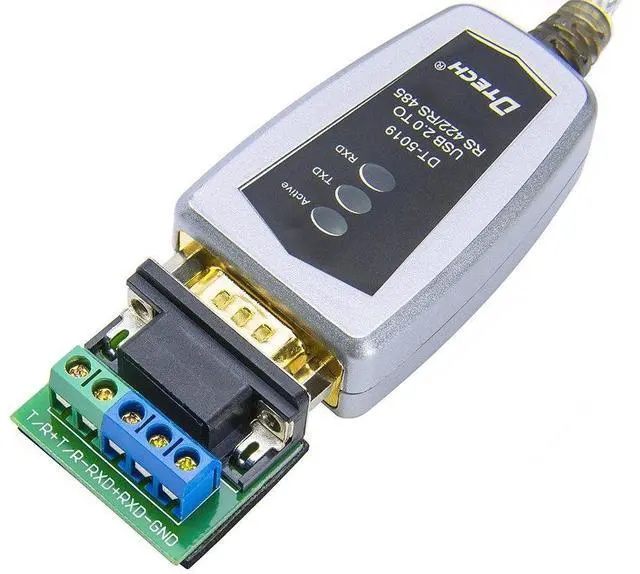

USB to RS422 RS485 Serial Port Adapter Cable with FTDI Chipset 5 Position Terminal Board for Windows 11 10 8 7 XP Mac (4 Feet)
- USB to RS485/RS422 converter It easily lets you connect RS485 or RS422 device directly to your Laptop PC computer USB port
- RS485 Serial to USB adapter is ideal for industrial environment -provides 600w surge protection and 15KV ESD isolated protection on signal pins to protect costly and often sensitive control equipment against electrical damage
- USB to RS485 cable adapter is with high performance quality processor chip (FTDI-chipset FT232) and I/O auto conversion circuitry which makes RS 485 to USB convertor one of the most reliable dongle on the market
- 4ft USB serial RS-485 RS-422 adapter cable supports windows 11 10 8 7, Mac and more; plug-and-play, No power supply needed
- There are no IRQ and COM port conflicts, since the port do not require any additional IRQ, DMA, memory as resources on the system; RS485 for Half duplex and RS422 for Full duplex communication
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
USB RS485 adapter cable devices with FTDI chipset allows you to connect RS422 or RS485 serial devices to your computer via USB.
By taking advantage of the USB bus, the USB/RS485 Serial converter makes it easier than ever to add RS-422 / RS-485 serial ports and serial devices to your system.
Industrial USB to RS 422 / 485 Serial Adaptor Cord is a high quality industrial USB plug and play dongle designed to instantly add a RS485/RS422 port to your PC or Mac system via USB interface. USB to Serial cable RS485 is the ideal solution for connecting industrial devices such as laboratory testing and measuring equipment, monitoring devices, material handling equipment, and many more devices where mission critical applications are required.
Specific
RS422/RS485 TIA/EIA Standard
USB2.0; compatible USB 1.1
Baud rate: 300bps to 921Kbps

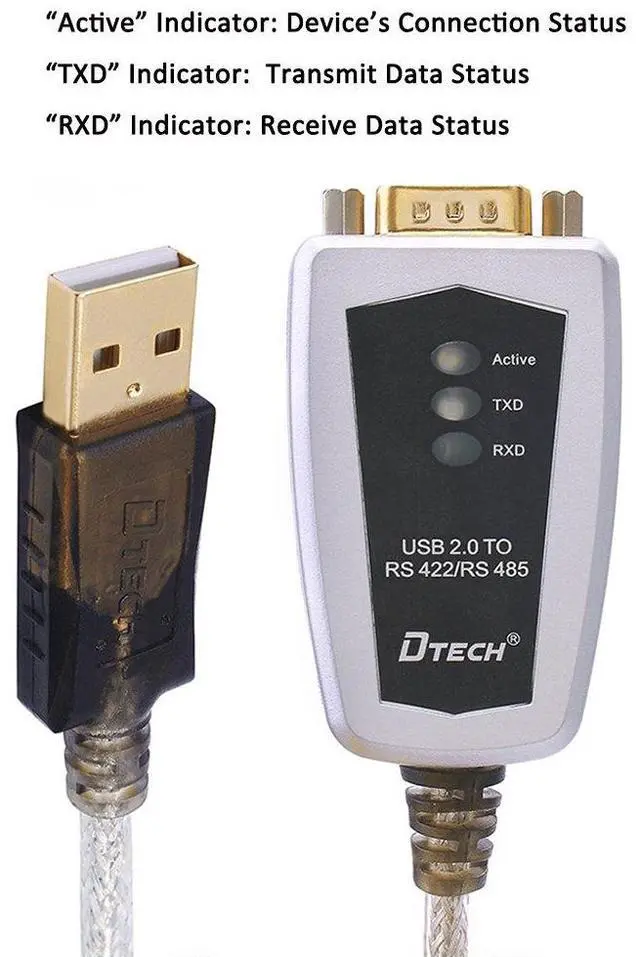

Indication LED's for Power, TX and RX
No IRQs, DMA or required; No IRQ Conflicts
Automatic send data control. Auto detection of data speed; Zero delay automatic transmission
Automatic hand-shaking protocol supported
Built-in static and surge protection up to 600W; 15KV ESD protection (Electro-Static discharge)
Serial to USB adapter supports multiple terminals up to 32 RS-485 or RS-422 devices
up to 1200 meters for RS-485/422 end

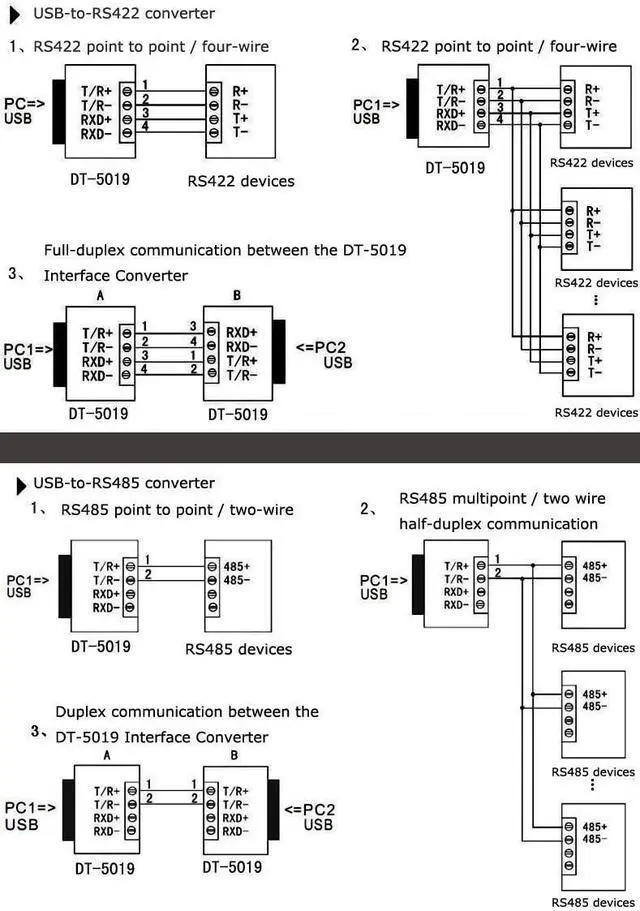

Working modes: asynchronous; point-to-point or point-to-multipoint; 2-line half duplex and 4-line full duplex.
Application fields: Factory automation system, Distributed control system, Other 485/422 serial device wireless network, LED INFO display equipments, PLC control and management, SCADA, measuring instruments and monitoring system, CNC management, Medical treatment/medication automation, Building automation, Check on work attendance/ Human resource management.
Original Packing Included

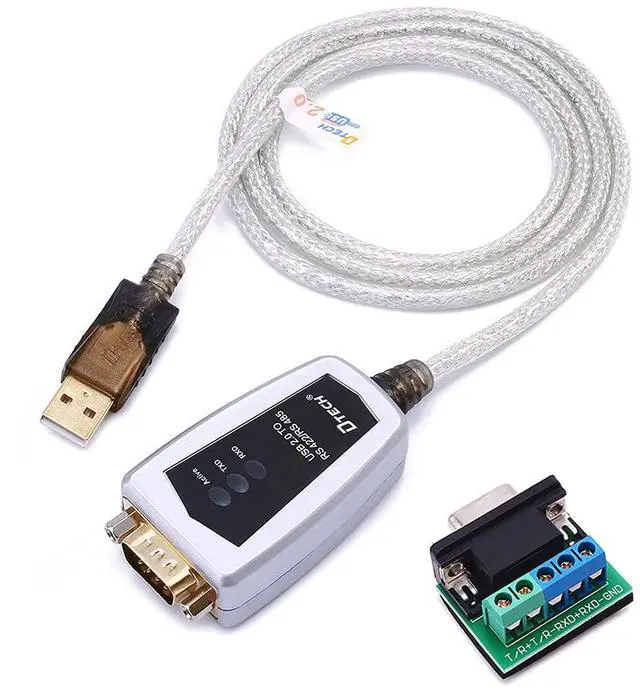

1 x USB to RS-422 RS-485 Adapter Cable 4ft

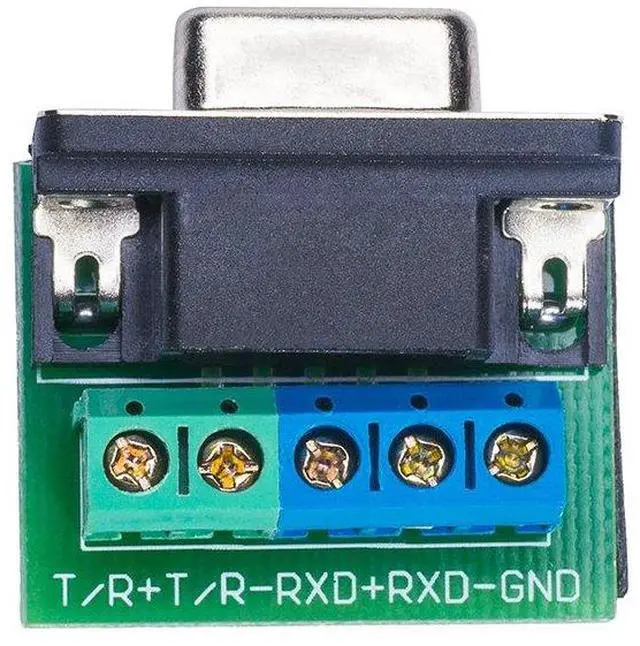

Terminal Board
1 x CD software driver
