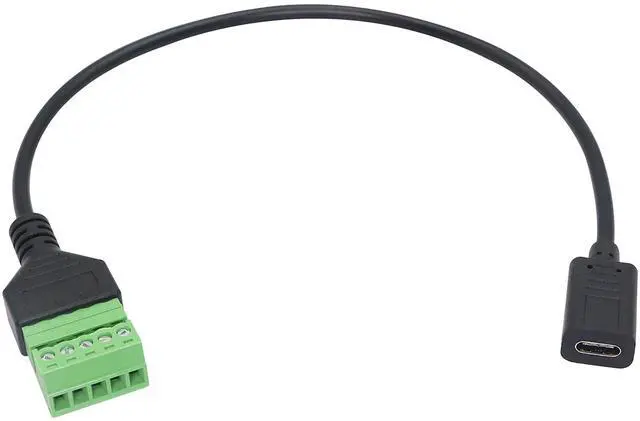

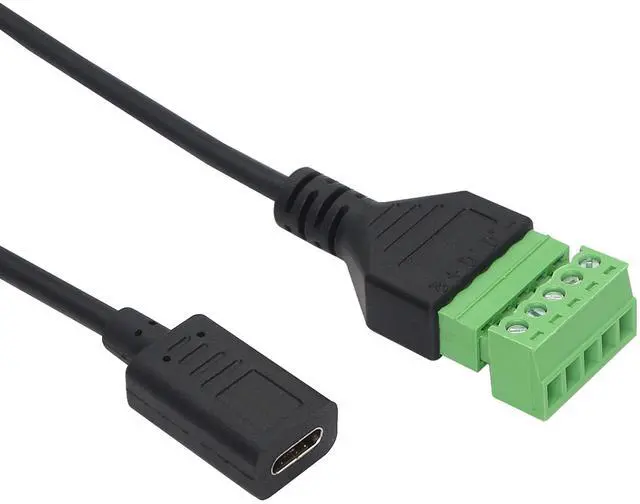

BUCIER USB C Terminal, Type C Female Screw Terminal Block Connector Solderless Pluggable 5P Block Extension Cord Transfer Data & Charging for Type-C Interface Devices (USB C Female)
- Type C Female With Screw Terminal Block Cable can extend the length of the USB cable and DIY high-quality cables for data transmission and charging. The cable is 30cm long.
- USB-C Solderless terminal is fixed with screws, no soldering required. You only need to use stranded or solid wires and a small screwdriver (give screwdriver) to create custom wiring jigs. Simple and convenient, saving time and effort.
- This TypeC Cable of 5 Pin pluggable screw terminal can connect a shielded wire, made cable has shielding function, can effectively shield the interference of external signals.
- This Type-c terminal cable socket is USB2.0, the bandwidth is 480MB/S, theoretically it can transmit 60MB of data per second (actual speed is about 20MB-60MB/S according to different cable lengths), the signal is stable and safe.
- Compact design and reliable connection are compatible with wide, suitable for mobile phones, tablets, computers and other devices with USB Type-C interfaces.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

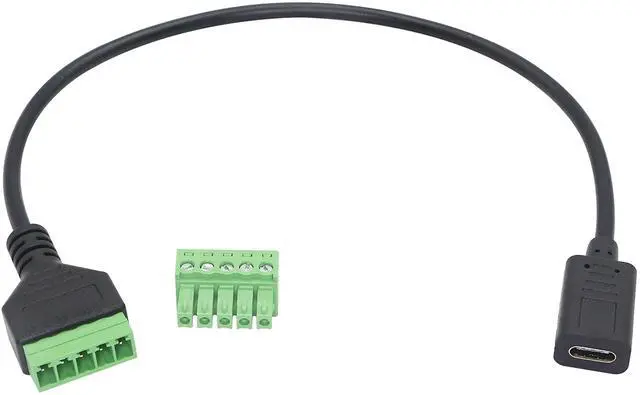

Pluggable design Terminals
Pluggable design terminal for flexible switching of all USB 2.0 solderless wires without rewiring
5-pin (way) bolt screw terminal pluggable connector can be plugged into the typec plug, Then connect the socket to the other wires, The length of the typec cable can be extended.
Detailed wiring

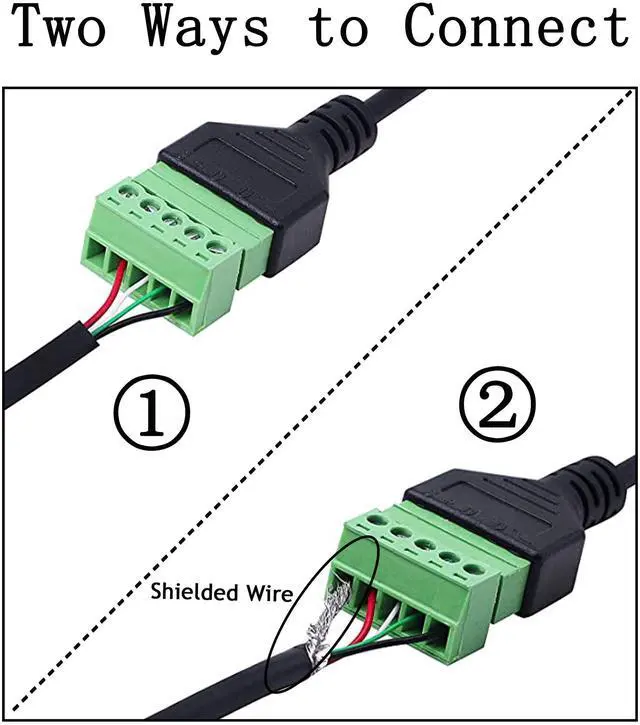

There are two ways for wiring the solderless usb c extension, connecting with or without shielded wires..ow the tips provided by the head to connect one by one. After confirming that it can be used normally, seal it with electrical tape to avoid leakage.
1 screwdriver is included, no need to prepare additional screwdriver, which really saves time and effort
Wiring Notes
When wiring the screw terminal connectors, just loosen the top screw of the terminal and put it into the corresponding cable (you need to open the outside and put it into the copper wire part inside)
Screw Termainal Line description
S : Shielded wire
+ : Positve dlectrode(Red)
D- : Data(White)
D+: Data(Green)
- : Negative electrode(Black)v Please connect in the above order)
Product Specification
1, Product function: data transmission, charging extension function
2, Product Plug: USB 2.0 type c male
3, Product terminals: 5P pluggable screw terminals screw connector USB shielding cover
4, Product Material: Copper
5, Product Line Diameter: OD4.0mm

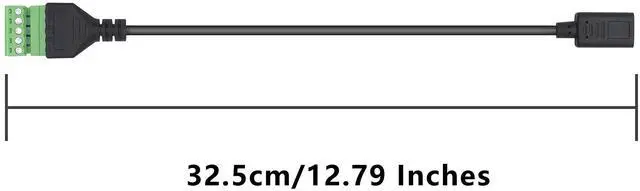

6, Cable Length: 30cm
7, Wiring Mode: solder free, terminal screw fixing Applicable
8, Compatitive Cell Phones, PC, Notebook, and other interface devices with USB TypeC
Package

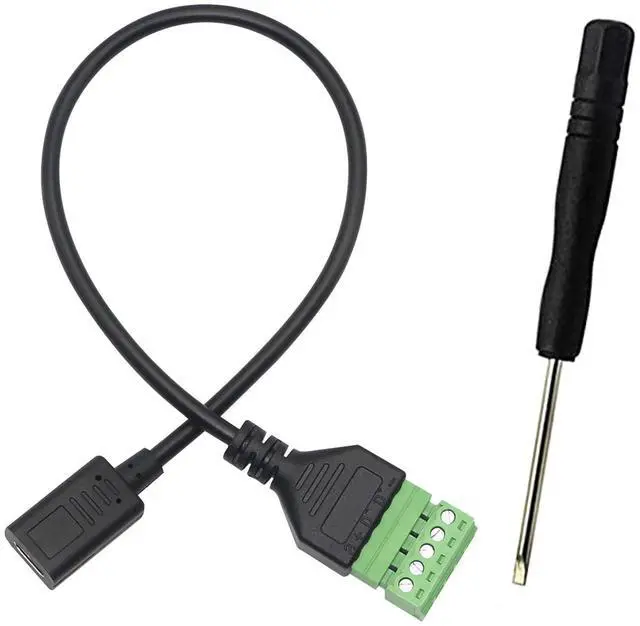

USB C Female to 5P Solderless Terminal cable*1
Screwdriver*1
