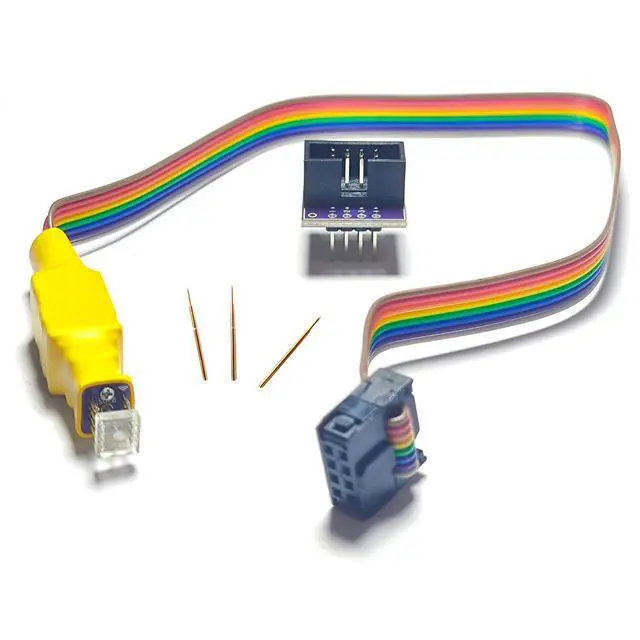

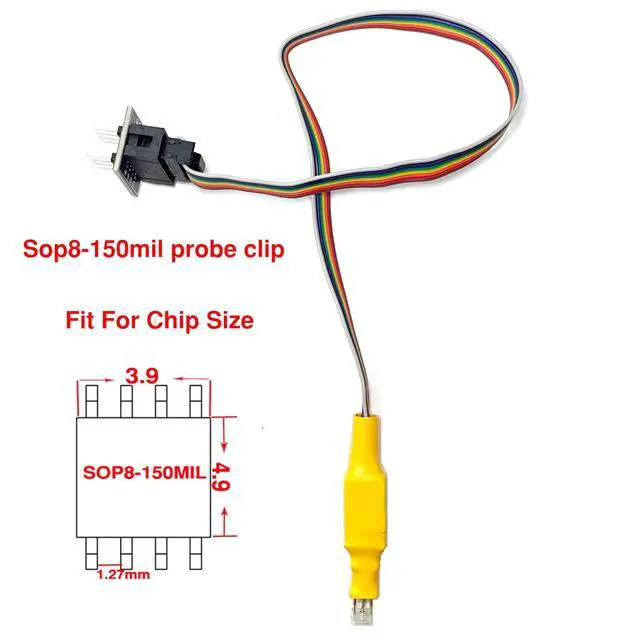

T76 Programmer for with Xgecu T56 Tl866ii T48 Replacement IC Probe Clip Reader Writer Support Eprom ISP Chip PIC NAND Flash EMMC GAL CPLD VGA BGA Socket Tester (T76+SOP8 150MIL)
- The T76 programmer supports:T76 programmer is the update version of T56 programmer26, 27, 28, 29, 37, 39, 49, 50 series parallel ROM, EPROM, EEPROM;24, 25, 35, 45, 85, 93, 95 series serial EEPROM; P-NAND FLASH, customizable to add new chip models;SPI NAND (SD NAND/SD cards); EMMC/EMCP;microcontroller series programming;GAL/CPLD programmable logic device programming;VGA tool and VGA ISP programming;SRAM chip testing;High-performance 54/74F/LS/HC CMOS4000 series IC logic test. common EEPROM, EPROM, FLASH chips,support robust microcontroller and programmable logic device (GAL/CPLD) and with the capability to customize and add new chip models. the chip models will be updated normally.

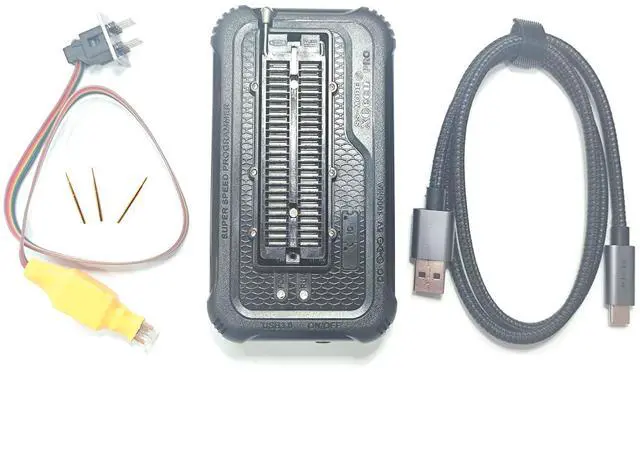

- The T76 features: high-performance 32-bit RISC-V MCU + FPGA controller, paired with a high-speed USB 3.0 Type-C interface. This configuration provides data transfer speeds up to 140MB/sec (EMMC 5.1 actual transfer rate), multiple times faster than traditional programmers! Whether you are reading or writing
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The T76 programmer IO design:Adopts a high-quality USB 3.0 Type-C aluminum gray braided cable for stable and reliable signal transmission.VCC voltage adjustable from 1.2V to 6.5V (64-level adjustable), and VPP voltage adjustable from 6.5V to 25V (64-level adjustable).IO communication signal voltage adjustable from 1.2V to 3.6V (64-level adjustable).VCC current limit adjustable from 120mA to 450mA, VPP current limit at 150mA, both with overcurrent protection.Supports 5V <1A power supply, with a static power consumption of just 150mA (tested in standby mode).Offers comprehensive external power multi-protection, including over-voltage, reverse connection, over-current, and low-voltage tips. Adapter Quality: Most off our adapters are use gold-plated pin header,Better contact between the adapter and the programmer: The adapter uses high-quality spring-loaded sockets, which have strong resilience, can better read and write chips and have a long service life. T76 programmer Size: With dimensions of only 12mm x 7mm x 2.8mm, the T76 is lightweight and portable, allowing you to perform chip programming anytime, anywhere.Small machine, big function,The T76 Programmer will become an indispensable and reliable assistant for your work and study! Whether you are an electronic engineer, a repair technician, or a DIY enthusiast, the T76 can bring you an unprecedented efficient, convenient, and reliable chip programming experience.
