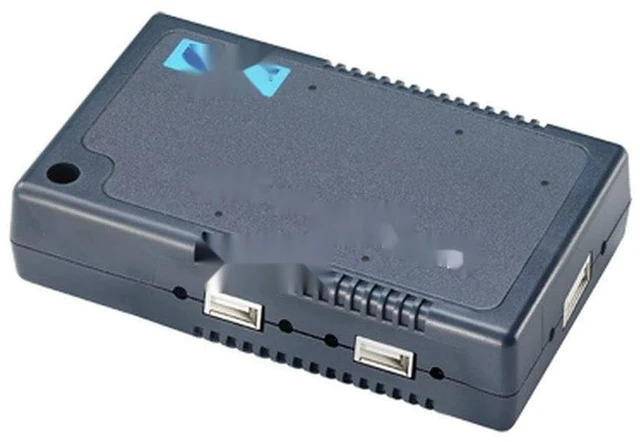

5-Port High-Speed USB 2.0 Isolator 480 Mbps DIN-Rail mounting USB-4622

5-port High-speed USB 2.0 Hub
Main Features
5 downstream USB 2.0 ports
Compatible with USB 2.0 High-speed, USB 2.0 Full-speed, USB 1.0
480 Mbps high-speed data transfer
LED indicator
Suitable for DIN-rail mounting
One lockable USB cable included
10 ~ 30 VDC power input (power adapter not included*)
USB-4622 is a USB 2.0 hub capable of connecting at most 5 USB salve modules.
It supports the USB 2.0 high-speed mode that can achieve 480Mbps data transmitting rate, realizing the USB-4700 series' high performance for heavy-loaded applications.
The 's unique lockable cable design secures the slave module connections, the cable from being unplugged accidently.
USB-4622-CE
General
Power Consumption
24 V @ 36 mA
Dimensions
132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
Bus
USB 2.0
Ports
Upstream x 1 (Type B); Downstream x 5 (Type A)
Supply Current
500 mA max. per channel
Compatibility
USB 2.0 High-speed, USB 2.0 Full-speed, USB 1.0
Transfer Speed
480 Mbps/12 Mbps/1.5 Mbps
DC Power Input
10 ~ 30 VDC
Description
USB-4622-CE
CIRCUIT MODULE, 5-port USB 2.0 Hub
Other optional accessories, cable and connectors, need order seperately.

Description

1960004544
Mounting BKT USB-4711 A1

1960005788
VESA mounting kit for USB DAC modules A1
