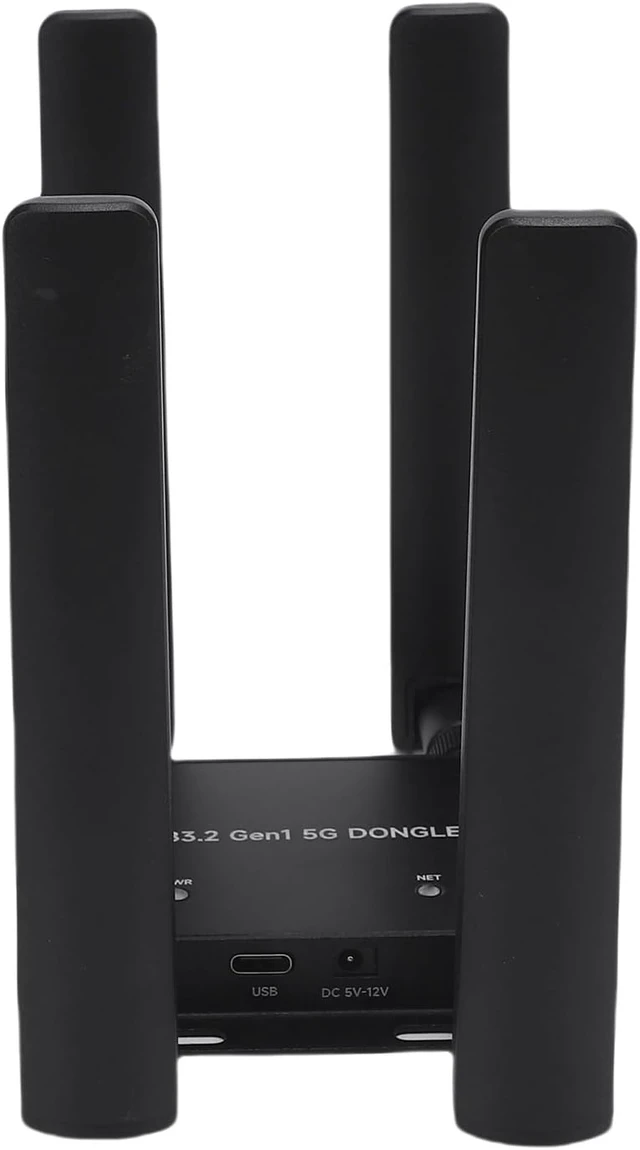

Dpofirs USB3.2 Gen1 5G Dongle Expansion Board with Quadruple Antennas for Raspi PC CPE, Aluminum Alloy Housing

1. PC connection: USB3.2 Gen1 5G Dongle on bootable Type-C interface, supports USB access to Raspi or PC for 5G networks, firmware: external power supply or external power supply offer

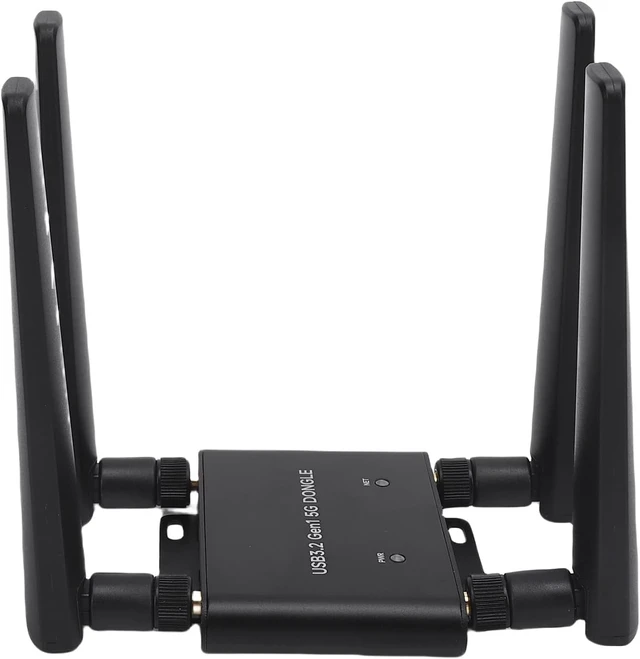

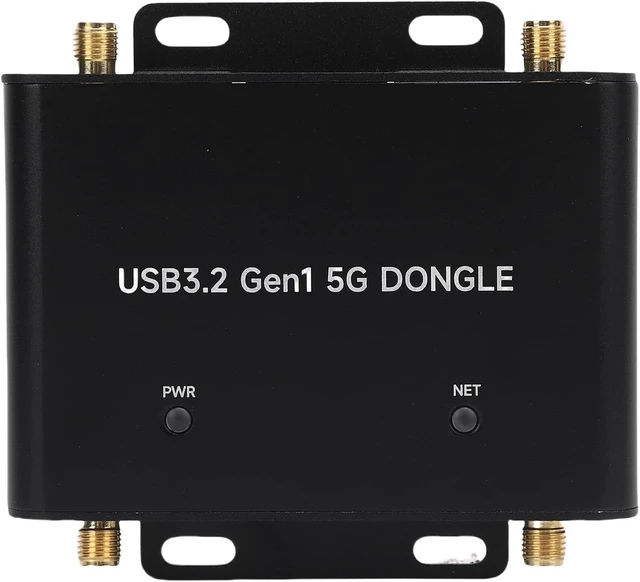

2. Easy Installation and Use: 5G Dongle Inboard 4 Channel 4 to SMA Antenna Interface, Fixed Antenna Easy to Install Directly. Power supply, network indicator, easy to check whether module working status and 5G DEBUG can be checked
3. Power supply: 5G dongle integer power conversion switching, support DC 3.5 Jack 5~12V voltage supply, also support USB3.2 -Interface 5V 2A power supply

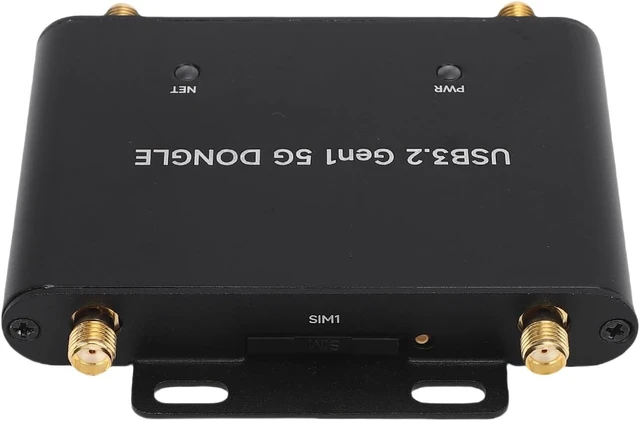

4. Dual card slot: dongle 5g on board 1 standard SIM card slot and 1 ESIM card slot. Dual card slot can be activated by command switch
5. Typical Application:USB3.2 Gen1 5G Dongle Expansion Board can be used for CPE, Internet of Things, Live Video, Telemedicine, Smart Security
6. Shelp Strong: USB3.2 Gen1 5G Dongle supports industry aluminum alloy.

Technical details:
Item Type: USB3.2 Gen1 5G Dongle
Material: aluminium alloy.
5G Standard: 3GPP R15
Chipset: for Snapdragon X55
Working frequency:
Sub-6g: N1, N2, N3, N5, N7, N8, N12, N20, N28, N38, N40, N41, N66, N71, N77, N78, N79
LTE-FDD: B1, B2, B4, B4, B7, B8, B12, B13, B17, B18, B19, B20, B25, B26, B29, B30, B32, B66, B66, B66, B66, B66, B66, B66, B66, B66, B66, B66, B66, B66, B66, B66, B6B66, B66 66, B66, B66, B66, B71 WCDMA: B1, B2, B3, B4, B5, B8
GNSS: GPS, Glonass, Beiidou, Galileo and QZSS
Data transmission:
Sub-6g: 2.4 Gbit / S (DL) / 500 Mbit / S (UL)
LTE: approx. 1GBIT / S (DL) / 200MBIT / S (UL)
HSPA+: approx. 42Mbps (DL) / 5.76Mbps (UL)
Software Function:
operating: support for , support for
Communication protocol: Support for TCP/IP, IPv4, IPv6, Multi , FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
Dial up Internet access: RNDIS, NDIS, PPP, MBIM
Support SMS: MT, MO, CB, Text, PDU
Firmware upgrade: supports firmware update
