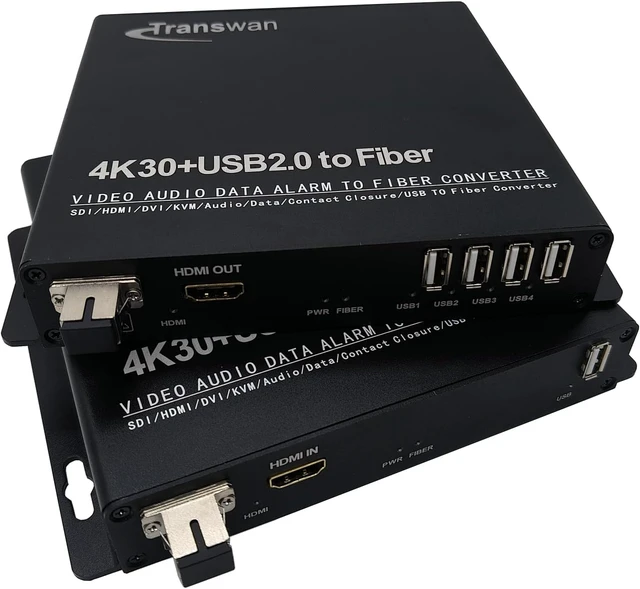

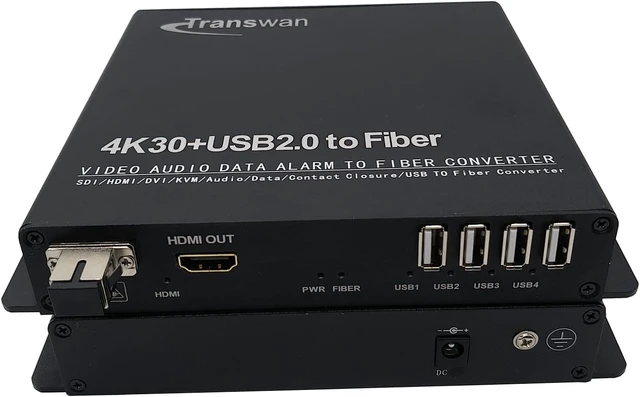

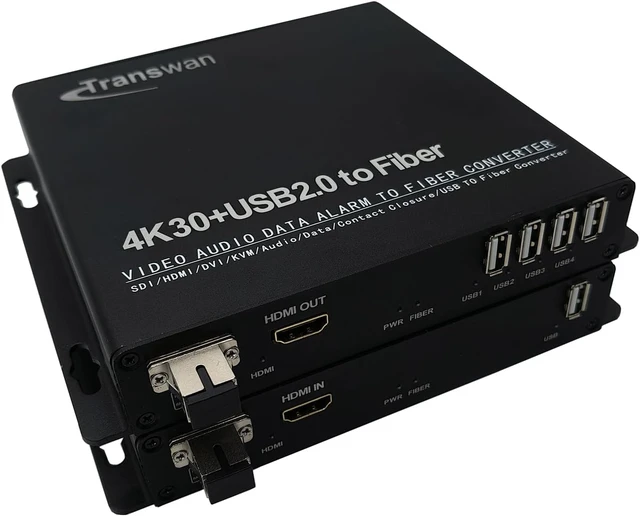

4K HDMI Over 1 Fiber Extender with 4 Ports USB 2.0 Hub & 4K HDMI (4K @30Hz) to 5 Km SMF, Extending Touch Screen to Control PC

Performance:
Compliance:HDMI v1.4, HDCP v1.4, DVI v1.0 HDMI Input / HDMI Output:19-pin female HDMI connectors
HDMI Input / HDMI Output:19-pin female HDMI connectors
Optical Input / Output:1 x SC optical connectors
Mechanical:
Construction:Extruded Aluminum enclosure with black anodized finish
Dimensions: 175mm×154mm×30mm
Weight:1.5kg per pair
Environmental:
Operating Temperature:0° to +50° C
Storage Temperature:-20° to +70° C
Humidity (storage / operating):10% to 90% (non-condensing)
Power Requirements:
Power Source:Both Tx and Rx units must be powered using the supplied external AC power adapters
External AC Power Adapter:Input: 100~240VAC / 50-60Hz, 0.5A Output: 5VDC, 4.0A
Maximum Power Consumption:TX Unit: 5 watts RX Unit: 20 watts


Application
Perfect for extended use of HDTV, LCD monitors, digital projectors, plasma TV's and other equipment requiring HDMI to Fiber conversion.

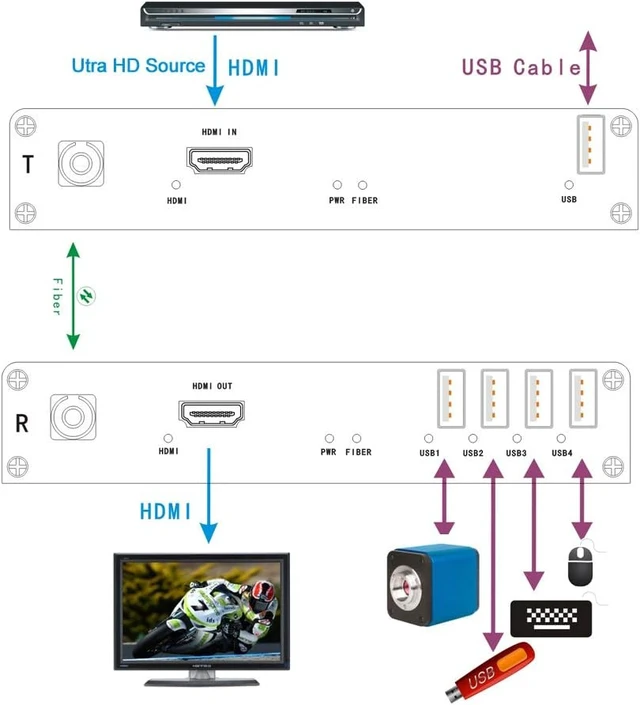

Aplication of Extending the touch Screen
1). Video and Audio Transmission
4KP30 HDMI Signal from PC is converted into optical signal by BY-HDMI-427-Tx Transmitterthen transmit over Single-mode Fiber to the Local BY-HDMI-427-Rx Receiver which converts back to the HMDI Signal and output to the touch screen.
2).Touch Control:
The USB control signal from the touchscreen is converted into an optical signal by BY-HDMI-427-Rx, transmitted back to the remote computer via fiber optic, enabling remote control.

USB interface:
TX:1 port, connect to PC/ HDMI source
RX:4 ports, connect to USB devices, max 500mA

Package:
1. 1 x transmitter.
2. 1 x receiver.
3. 2 x Power Adapters with US/UK/EU/AU plug
