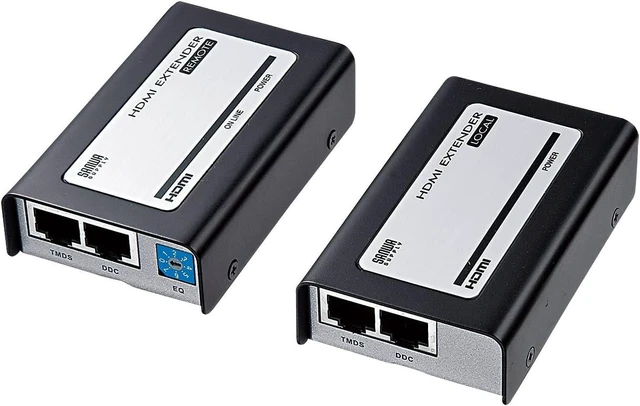

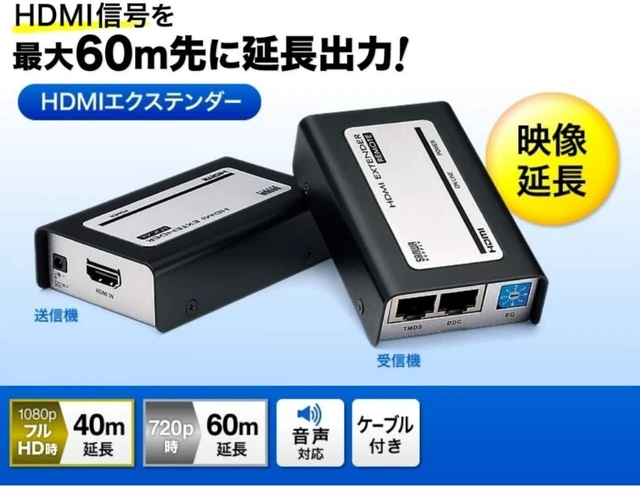

Sanwa Supply VGA-EXHD HDMI Extender with Full HD/HDCP Support, 1080p, Up to 40m

Features:

This HDMI extender can extend HDMI signals up to 40 meters at WUXGA (1920 x 1200 dots) resolutions up to 40 meters and 720p (1280 x 720 dots).

The high-quality HDMI image signal can also be used to extend the audio signal at the same time.

This product is HDCP (High-bandwidth Digital Content Protection).

Display must also be HDCP compatible.

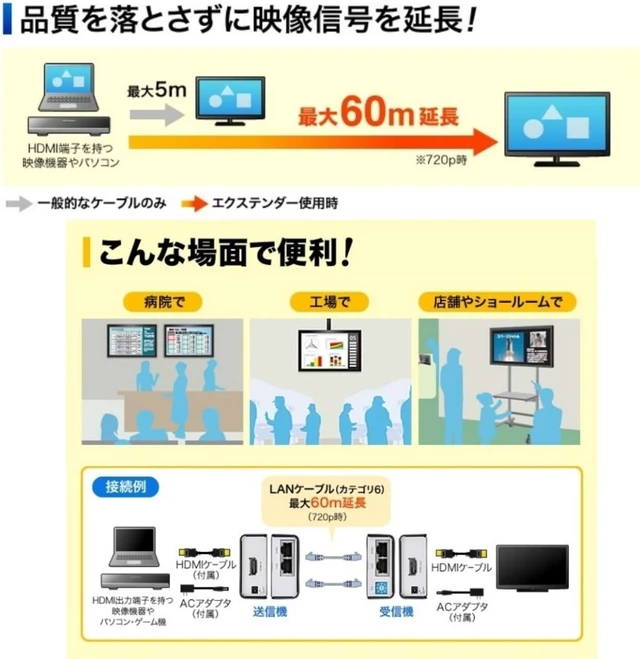

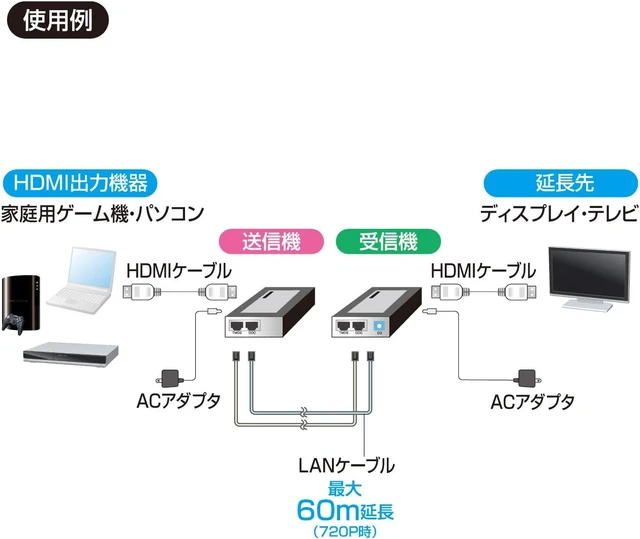

The transmitter and receiver set can be extended by using 2 LAN cables between the units.

Using a 250 MHz transmission frequency bandwidth of LAN cable (Category 6), it can transmit high definition HDMI signal with minimal signal loss.

Uses LAN cable (Category 6), so it is easy to handle and has excellent cost performance. This product requires 2 LAN cables (Category 6). Not included. Please purchase separately. )

Supports HDMI Ver.1.3b and supports Deep Color and DolbyTrueHD.

In environments where HDMI devices are difficult to install such as factories and construction sites, this is perfect for installing only the display that is extended, and when installing HDMI output devices in a far away environment.

Comes with a wall mounting kit so you can install it on the wall.


RoHS compliant product.



Specifications:

Maximum display resolution: 1920 x 1,200 dots (WUXGA) *Maximum extension of 1920 x 1080 dots (full HD / 1080p) *Can be extended up to 40 m (1,280 x 720 dots (720p) *Can be extended up to 60 m

Extension cable length: 60m (max)

Cable extension distance varies depending on resolution.

HDCP: Yes

Display must also be HDCP compatible.

Bandwidth: 2.25Gbps max.

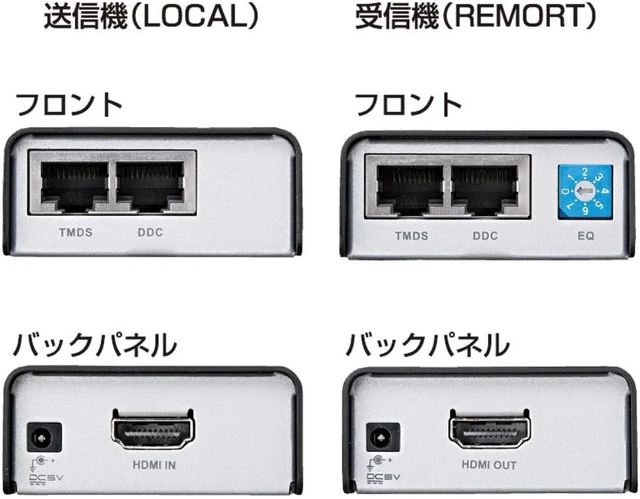

Interface: Input / HDMI Type A (19pin) Female x 1 Output/RJ-45 Female x 2 Input/RJ-45 Female x 2 Output/HDMI Type A (19pin) Female x 1

Standard: HDMI Ver.1.3b/DVI Ver.1.0

Current Consumption: Transmitter/1.22W (max) Receiver/0.95W (max)

Environment conditions: Operating temperature / humidity: 32 - 122°F (0 - 50°C), 80% or less (without condensation), Storage temperature / humidity: -4 - 140°F (-20 - 60°C), 85% or less (without condensation).

Material: Steel (case)

Size: Transmitter/W90×D55×H24mm (Body Size) Receiver/W90×D55×H24mm (Body Size)

Weight: Transmitter/160g Receiver/160g

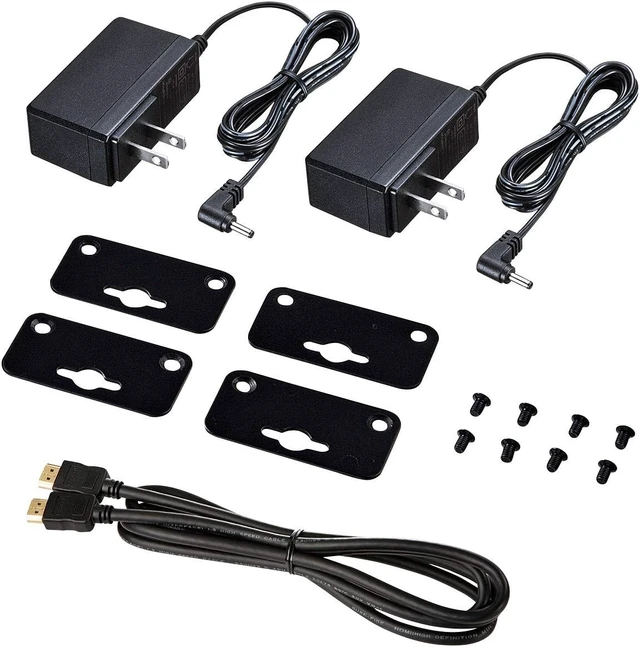

Accessories: AC adapter (DC5V 2.6A) x 2, HDMI cable (5.9 ft (1.8 m) x 1, wall mount kit x 4, instruction manual (English language not guaranteed).

HDMI specification: HDMI Ver.1.3b

PCM: 8ch (7.1ch)

Dolby Digital/DTS: Yes

DVD Audio: Support

SACD: Yes

Other specifications: *Dolby Digital Plus, Dolby True HD compatible *DTS-HD High Resolution Audio, DTS-HD Master Audio compatible.

Resolution: 1080p (1920 x 1020), WUXGA (1920 x 1200)

Color depth: 12bit/RGB36bit, Deep color *Only if the HDMI input and output device connected supports deep color.

Color gamut standard: xvYCC compatible

Device Control: Not supported.

Lip sink: not supported. The connected HDMI input and output devices support deep color.
