PCI-e to 4 Ports USB 3.2 GEN 1 (5Gbps)(USB Type-C +USB Type A w/ Internal 19Pin USB 3.0 Dual Port) PCI Express Card, Power by 15pin SATA w/ Full-Profile & Low-Profile Bracket
Limited time offer, ends 07/22 By YuXuan Technology
- PCIe to 4 port USB 3.2 GEN 1 add on card
- Data transfer speed up to 5Gb/s
- 1 X USB Type-C & 1 x USB Type-A external ports
- 1 x USB 3.0 20pin internal interface for front panel
- Power by SATA
- w/ Full-Profile and Low-Profile Mounting Bracket
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

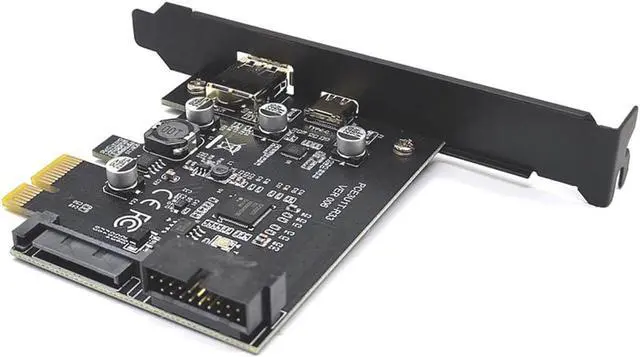

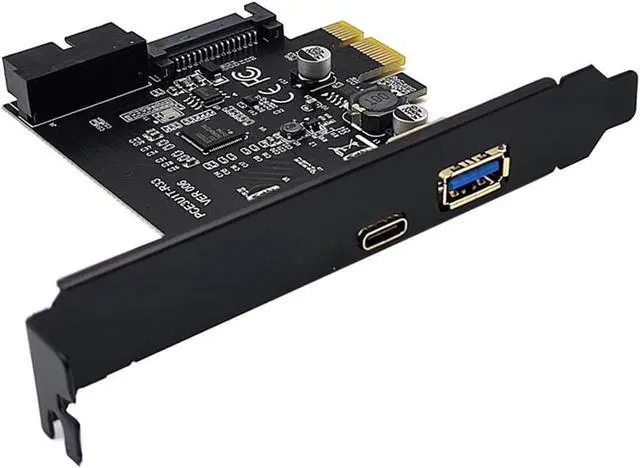

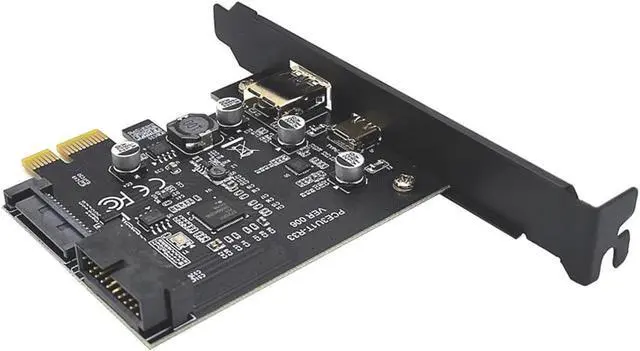

PCIe x1 to USB 3.2 GEN1 Type-C Expansion Card
Features
Add 4 USB 3.0 ports(1 x USB Type-C+1 x Type A + 20 Pin Internal) through a PCI Express slot
Compatible with PCI-Express 2.0 standard
Compatible with Super Speed USB 3.2 GEN 1 (5Gbps) standard, backwards to USB 2.0 and USB 1.1
Maximum transfer speed: 5Gbps
Power by SATA 15pin
Supports PCIe 1x, 4x, 8x, 16x Slot
Support Windows XP / 2003 / Win7 / Win8 / Vista / Linux
Interface:
Bus Type: PCI Express
PC Case Mounting: Full-Profile PCI Slot Cover (Low-profile bracket including )
Interface: USB 3.2 GEN 1 Port
Data Transfer Speed: USB 3.0 - 5 Gbit/s
Connector Type (s): 1 - PCI Express x1 Male
External Ports: 1 - USB Type-C Female & USB Type-A Female
Internal Ports: 2 x US 3.0 Internal Ports (20 pin connector)
Internal Power Interface: 1 - SATA 15pin
SPECIFICATION
Type: PCIe to USB Type-C Expansion Card
Input: PCIe x1 Slot, Compatible with PCIe x1, x4, x8, x16 Slot
External Output: USB 3.2 GNE-1 Type-C and USB 3.0 Type-A Female
Internal Output: USB 3.0 Internal 20Pin Header
Power: PCIe Slot
Enhanced Power Interface: SATA Power Interface
Data Transfer Speed: 5Gbps
PCI-Express Spec: Compatible with PCI-Express 2.0 standard
OS Request: Support Windows XP / 2003 / Win7 / Win8 / Vista / Linux
Installation: Full-Profile and Low-Profile PCI Bracket

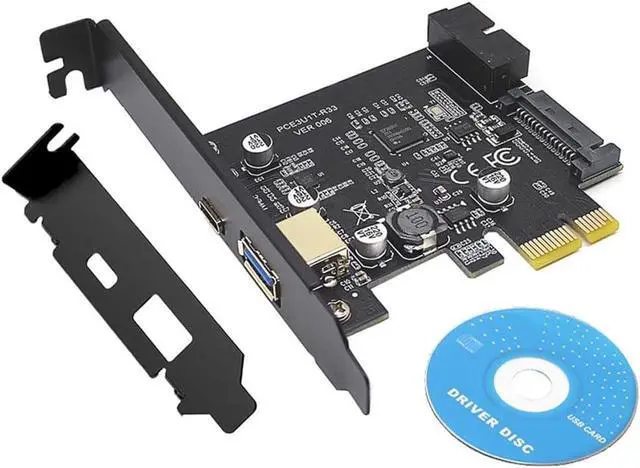

Package Contents: PCIe to USB 3.2 Card, Low-Profile Bracket, CD Driver
Features
Add 4 USB 3.0 ports(1 x USB Type-C+1 x Type A + 20 Pin Internal) through a PCI Express slot
Compatible with PCI-Express 2.0 standard
Compatible with Super Speed USB 3.2 GEN 1 (5Gbps) standard, backwards to USB 2.0 and USB 1.1
Maximum transfer speed: 5Gbps
Power by SATA 15pin
Supports PCIe 1x, 4x, 8x, 16x Slot
Support Windows XP / 2003 / Win7 / Win8 / Vista / Linux
Interface:
Bus Type: PCI Express
PC Case Mounting: Full-Profile PCI Slot Cover (Low-profile bracket including )
Interface: USB 3.2 GEN 1 Port
Data Transfer Speed: USB 3.0 - 5 Gbit/s
Connector Type (s): 1 - PCI Express x1 Male
External Ports: 1 - USB Type-C Female & USB Type-A Female
Internal Ports: 2 x US 3.0 Internal Ports (20 pin connector)
Internal Power Interface: 1 - SATA 15pin
SPECIFICATION
Type: PCIe to USB Type-C Expansion Card
Input: PCIe x1 Slot, Compatible with PCIe x1, x4, x8, x16 Slot
External Output: USB 3.2 GNE-1 Type-C and USB 3.0 Type-A Female
Internal Output: USB 3.0 Internal 20Pin Header
Power: PCIe Slot
Enhanced Power Interface: SATA Power Interface
Data Transfer Speed: 5Gbps
PCI-Express Spec: Compatible with PCI-Express 2.0 standard
OS Request: Support Windows XP / 2003 / Win7 / Win8 / Vista / Linux
Installation: Full-Profile and Low-Profile PCI Bracket
Package Contents: PCIe to USB 3.2 Card, Low-Profile Bracket, CD Driver
