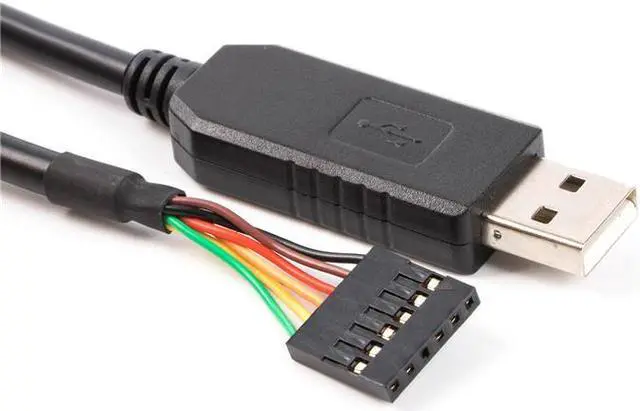

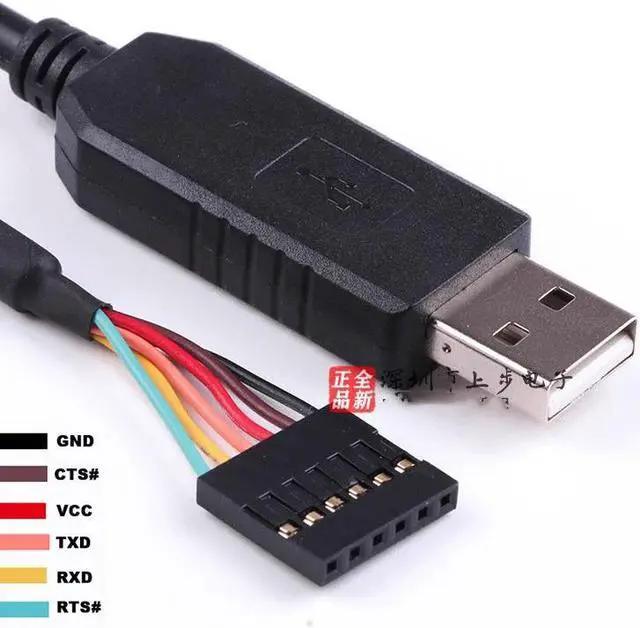

TTL-232R-3V3, USB to TTL serial converter, FTDI original chip, 1.8M, 3.3V
- FTDI based USB to TTL Serial Cable are designed using the the standard FT232RL chipset.
- The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.

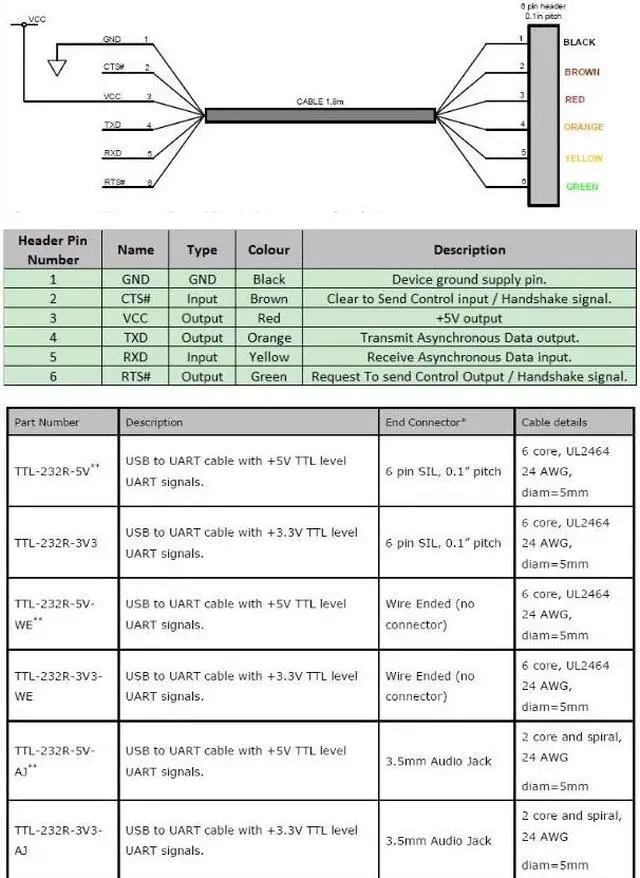

- The cables are available with a 6-way SIL, 0.1 connector
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The TTL-232R-3V3 cable is a USB to TTL serial UART converter that utilizes the FT232RQ USB to serial UART interface chip device and can handle all USB signals and protocols This cable provides a fast and simple solution for connecting USB to TTL serial interface Each cable includes an internal circuit board with an FT232R chip on the USB end On the other end is a 6-pin SIL 0.1 pitch connector. This cable supports FTDIChip-ID and has a unique USB serial number set on the FT232R This feature can create a password protected file transfer connection
USB 2.0 full speed compatibility
1.8 meters long and supports 3Mbaud data transfer rate
USB drive required
The FT232RQ on the board provides a single chip USB to asynchronous serial data transmission interface
The entire USB protocol is supported by cables
Directly connected to the controller UART or I/O pin
Internal EEPROM and user writable area
3.3V output allows for external logic power supply through USB port
Low USB bandwidth consumption
Communication and Networking
industry
wireless
Sensing and Instrumentation
USB 2.0 full speed compatibility
1.8 meters long and supports 3Mbaud data transfer rate
USB drive required
The FT232RQ on the board provides a single chip USB to asynchronous serial data transmission interface
The entire USB protocol is supported by cables
Directly connected to the controller UART or I/O pin
Internal EEPROM and user writable area
3.3V output allows for external logic power supply through USB port
Low USB bandwidth consumption
Communication and Networking
industry
wireless
Sensing and Instrumentation
