Aomoproing USB to TTL Serial 3.3V Adapter Cable TX RX Signal 4 Pin 0.1 inch Pitch Female Socket PL2303 Prolific Chip Windows 10 8 7 XP Vista (6ft, Black)

6-Foot PL2303TA chip USB to TTL serial adapter cable for 3.3 V logic level serial communication (rx, tx, vcc and GND)

This USB TLL serial converter is built with Prolific PL2303 chip, FTDIs royalty-free VCP allow for communication as a standard COM port; a great conversion data cord to meet with your needs of debugging, boot-loading, programming, etc.

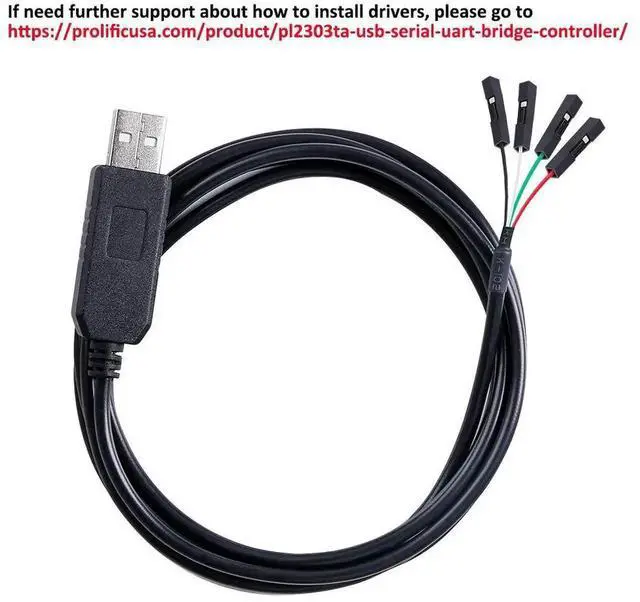

NOTE: If any installation or usage issues, please email us or you may download a driver and usage guide on Prolific official website

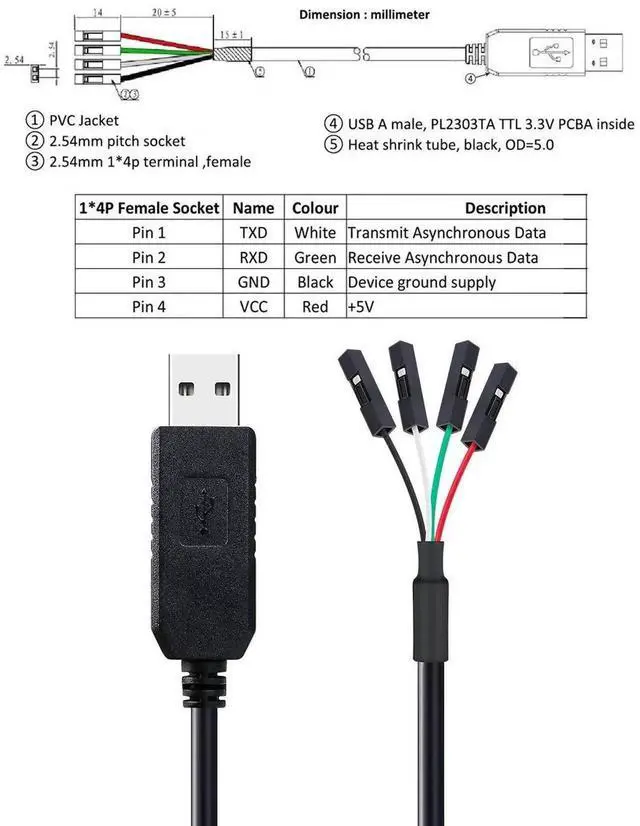

The original PL2303 chip is embedded in the USB-A end; 4 way 0.1 header connector with GND (ground), VCC (5V), RX and TX at 3V3 logic level.

Applications:

Upgrading Legacy Peripherals to USB

Interface Microcontroller UART or I/O, FPGA / PLD to USB

Industrial Control

USB Software / Hardware Encryption Dongles

...

Features

- The I/O pins of the USB to serial adapter wire are configured to operate at 3.3V logic level - Entire USB protocol handled by the electronics in the cable;

- UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity;

- Data transfer rates from 300 to 3M baud rate at TTL levels;

- Internal EEPROM with users writable area; - Supply voltage comes from USB bus, no external supply required;

- UHCI / OHCI / EHCI host controller compatible

Specific

Interface A: USB 2.0 type A Male Port

Interface B: 4 pin Female Socket flying leads

Chip: Prolific PL2303TA Supports Windows 2008, XP and XP 64-bit, Vista and XP 64-bit, CE 4.2, 5.0 and 6.0; Windows 7, 8, 8.1, 10 (32 and 64-bit);

Cable Colour: Black

Wire Length: 1.8 Meter

Whats Included

1 x USB to Serial TTL Level Converter Cable 6ft
