Aomoproing OTG USB-C Type-C Male Host to Type-C Male Target Data Flat Slim FPC Cable 13cm for FPV Disk Phone Laptop
- OTG USB-C Type-C Male Host to Type-C Male Target Data Flat Slim FPC Cable 13cm for FPV Disk Phone Laptop
- This cable enables you to connect devices with USB-C connection e.g. FPV Disk Phone to a free USB-C port.
- Two different connector for the cable:
- Type C connector 1 is needed to connect to the USB Host. There are pulled down to GND through a 5.1K resistor.
- Type C connector 2 is needed to connect to the USB device. There are pulled up to PWR through a 56K resistor.
- The cable only transfer DC5v power and USB 2.0 Data (480Mbps). Not work for PD20V power.
- This cable is flat and soft ,specially oriented brushless gimbal application ,suit for cameras with usb port.
- We ship the cable and connector separately, you need to assembly it yourself. Please refer the belowing assembly guide.
- Cable length: 13cm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

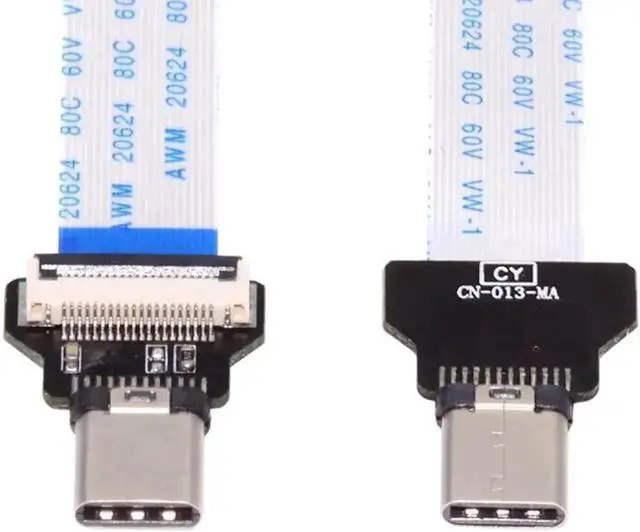

OTG USB-C Type-C Male Host to Type-C Male Target Data Flat Slim FPC Cable 13cm for FPV Disk Phone Laptop

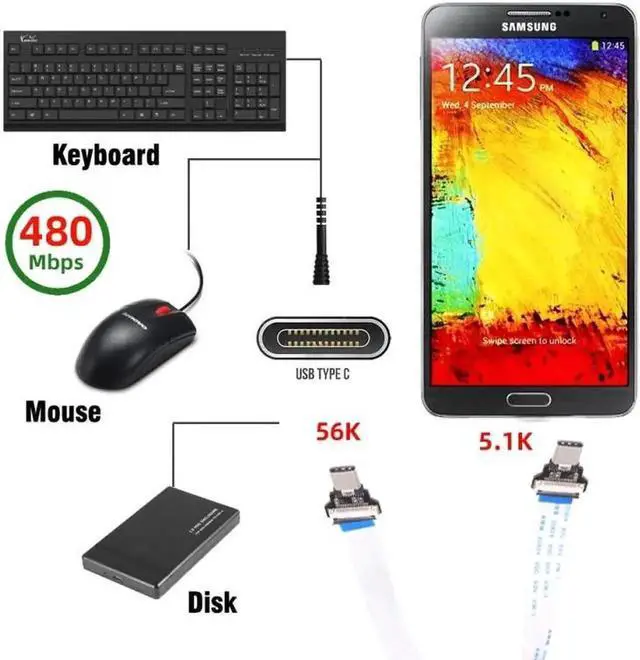

This cable enables you to connect devices with USB-C connection e. g. FPV Disk Phone to a free USB-C port.
Two different connector for the cable:

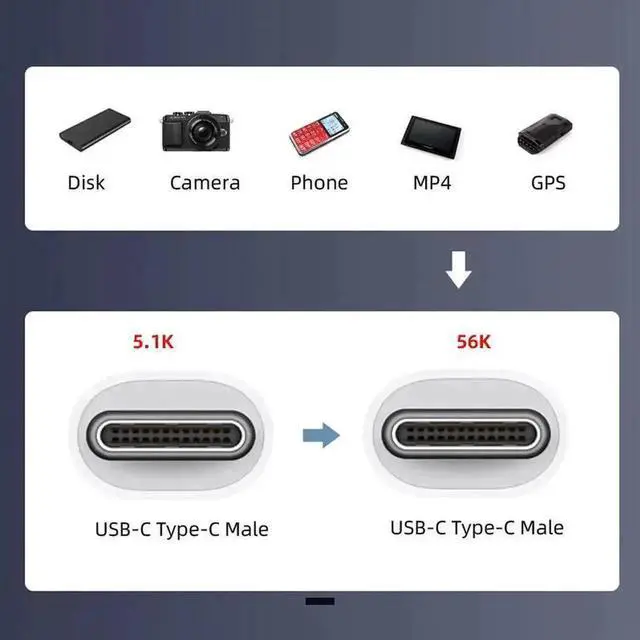

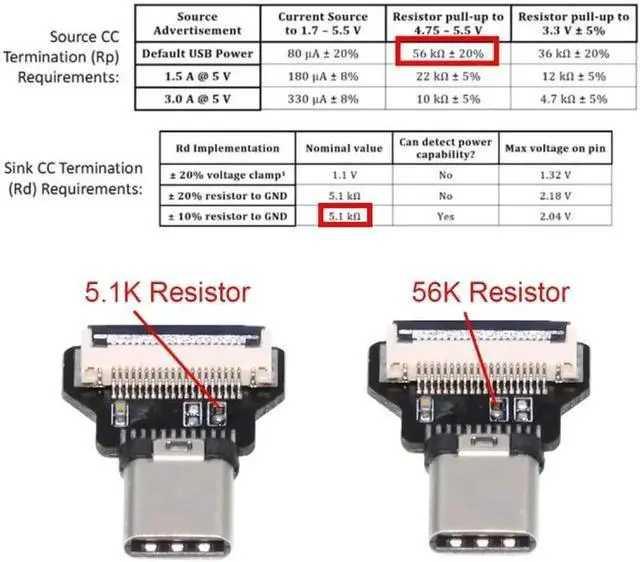

Type C connector 1 is needed to connect to the USB Host. There are pulled down to GND through a 5.1K resistor.
Type C connector 2 is needed to connect to the USB device. There are pulled up to PWR through a 56K resistor.

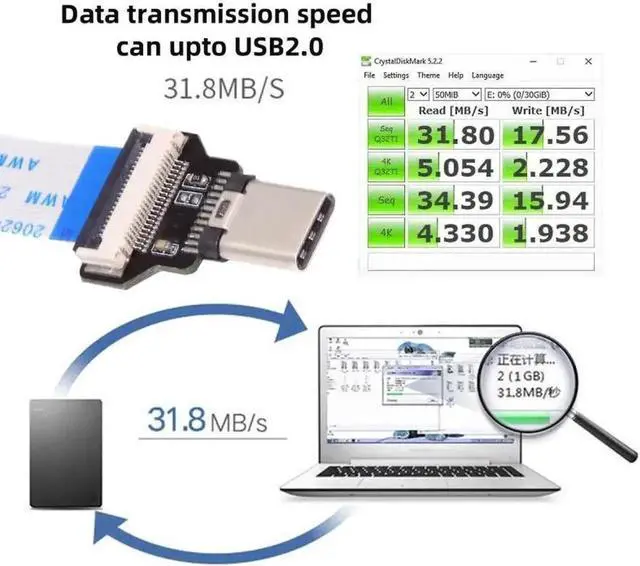

The cable only transfer DC5v power and USB 2.0 Data (480Mbps). Not work for PD20V power.
This cable is flat and soft, specially oriented brushless gimbal application, suit for cameras with usb port.

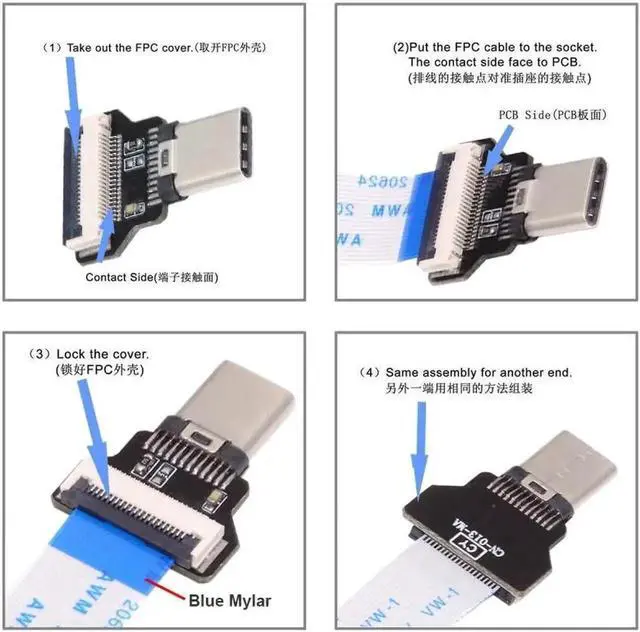

We ship the cable and connector separately, you need to assembly it yourself. Please refer the belowing assembly guide.
Cable length: 13cm
