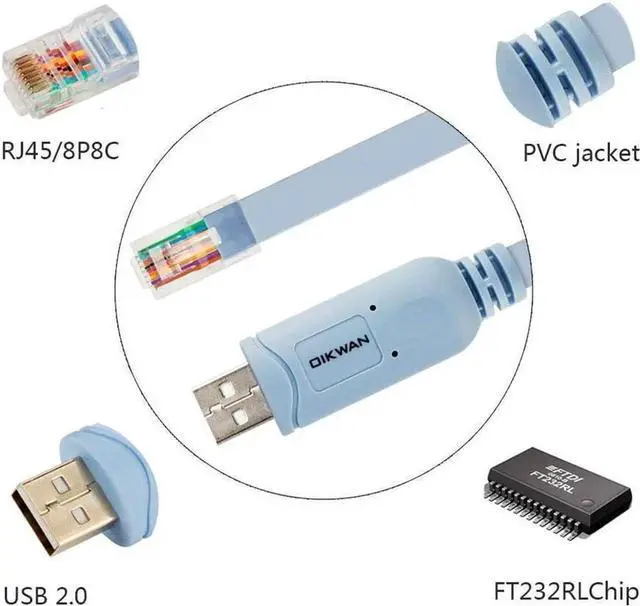

Aomoproing USB to RJ45 Console Cable 10ft, FTDI Chip USB Console Cable Compatible with Cisco, Huawei, HP, Arista, Opengear, Aruba, Juniper Routers Switches, Supports Windows, Mac, Linux

Console cable: 6FT-USB-RS232-RJ45 console cable. It's used for debugging and configuring network equipment, not ethernet cable

Works for console portthis USB to rj45 console cable Replaces COM port RS232 (DB-25/DB-9) serial port perfectly, connects to any laptop/PC's USB port directly to a console port like a charm. No more RS232 Female and male adapters 32 and 64 bit operating systems are both support. except Chrome OS

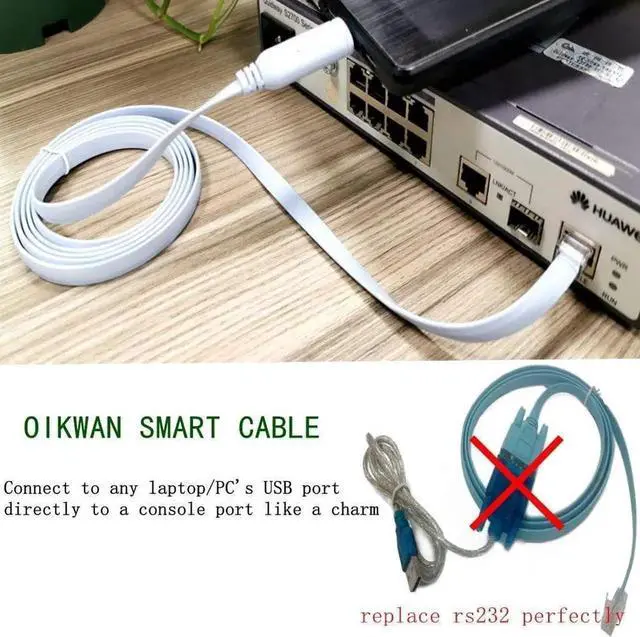

Essential tools for network engineersThe Cisoc Console Cable It's designed for that a PC or laptops USB port connect to the console port with their Cisco modem, router, firewall, switch or other Serial based Cisco device. Cisco, Juniper, NETGEAR, Ubiquity, LINKSYS, TP-Link, huawei, H3C, HP, 3com compatibly.

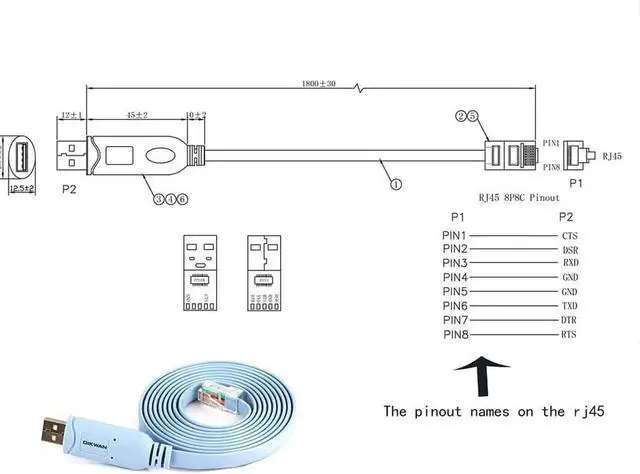

The pinout namesCisco usb console cable USB 2.0 ( 1.1 compatible);

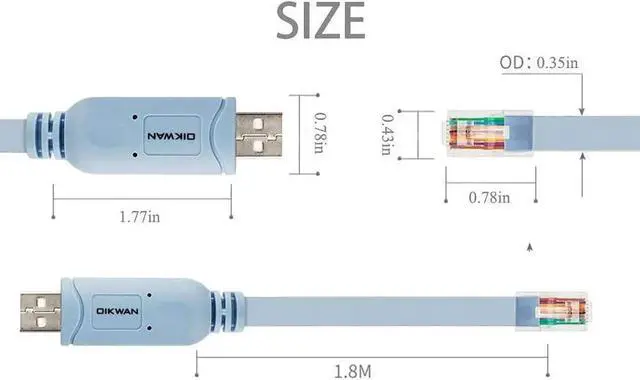

CONSOLE's DTE Pinouts: RTS (1), DTR (2), TXD (3), GND (4), GND (5), RXD (6), DSR (7), CTS (8); the RJ45 pinout names is 1-CTS, 2-DSR, 3-RXD, 4-GND, 5-GND, 6-TXD, 7-DTR, 8-RTS. Cable length 1.8 m/6ft, Maximum RS232 speed 500kbaud
