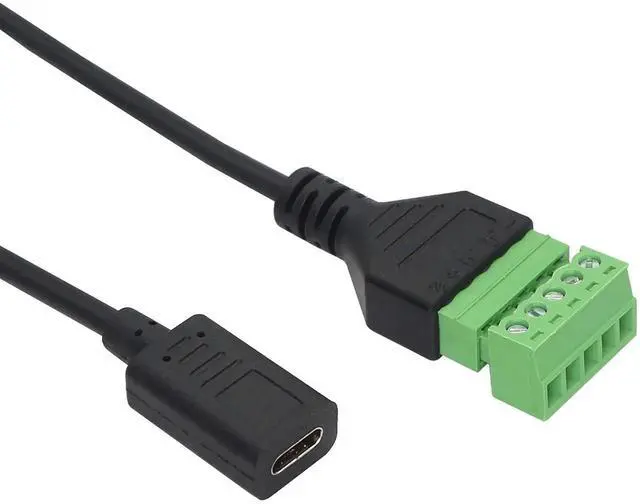

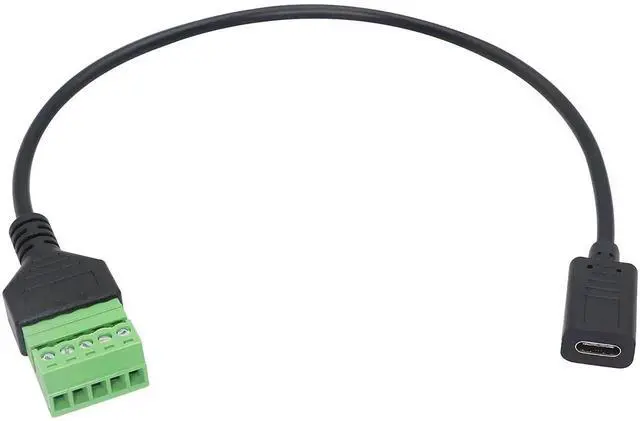

Aomoproing USB C Female Screw Terminal Block Connector, Solderless Pluggable 5P Extension Cord, Data & Charging Adapter for Type-C Devices

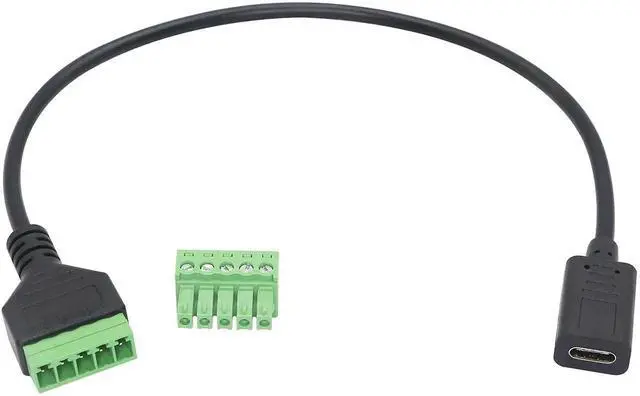

Pluggable design Terminals

Pluggable design terminal for flexible switching of all USB 2.0 solderless wires without rewiring

5-pin (way) bolt screw terminal pluggable connector can be plugged into the typec plug, Then connect the socket to the other wires, The length of the typec cable can be extended.

Detailed wiring

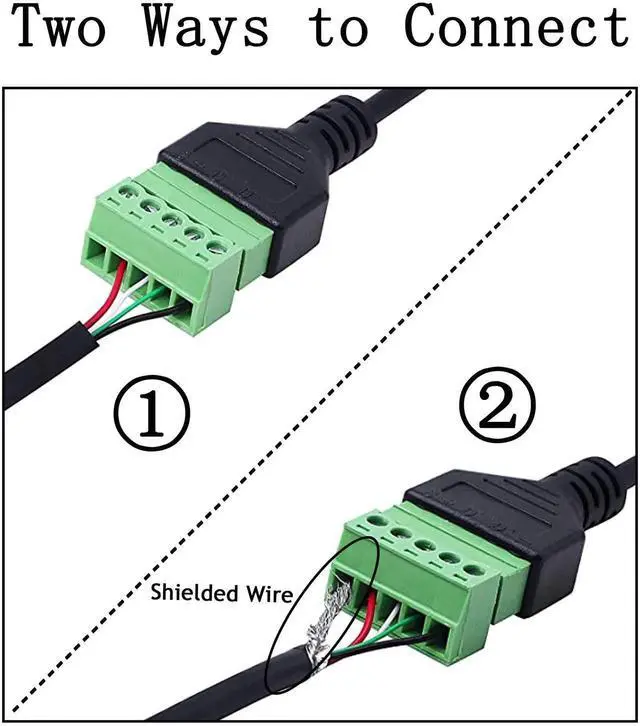

There are two ways for wiring the solderless usb c extension, connecting with or without shielded wires..ow the tips provided by the head to connect one by one. After confirming that it can be used normally, seal it with electrical tape to avoid leakage.

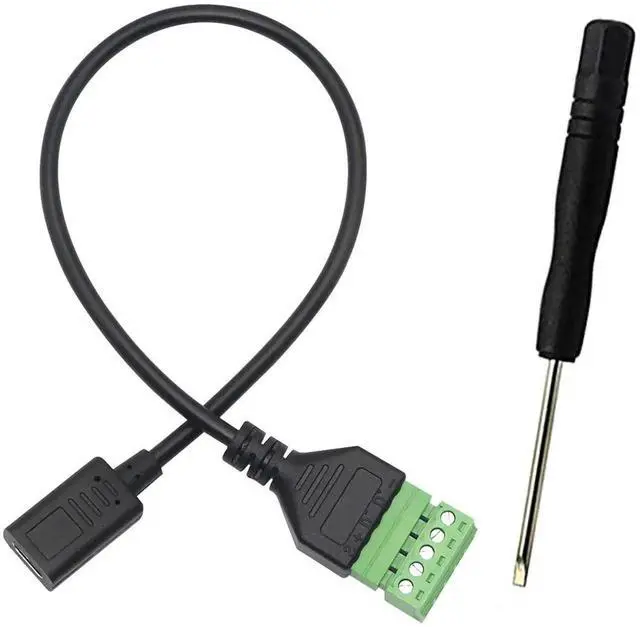

1 screwdriver is included, no need to prepare additional screwdriver, which really saves time and effort

Wiring Notes

When wiring the screw terminal connectors, just loosen the top screw of the terminal and put it into the corresponding cable (you need to open the outside and put it into the copper wire part inside)

Screw Termainal Line description

S : Shielded wire

+ : Positve dlectrode(Red)

D- : Data(White)

D+: Data(Green)

- : Negative electrode(Black)v Please connect in the above order)

Product Specification

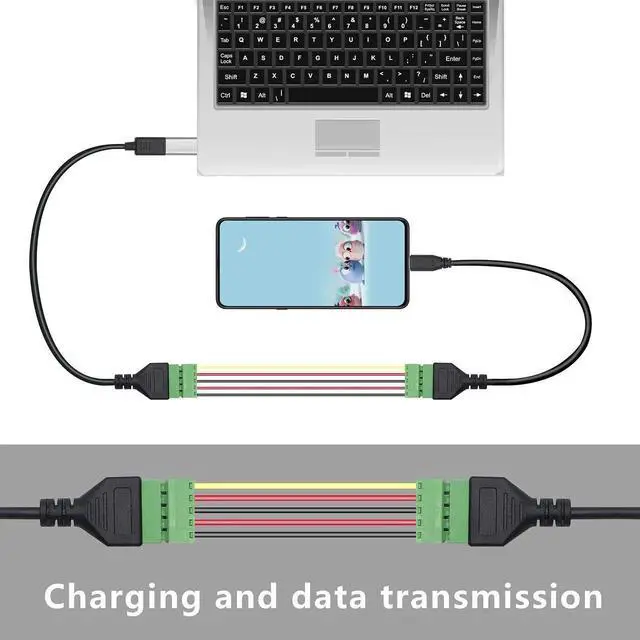

1, Product function: data transmission, charging extension function

2, Product Plug: USB 2.0 type c male

3, Product terminals: 5P pluggable screw terminals screw connector USB shielding cover

4, Product Material: Copper

5, Product Line Diameter: OD4.0mm

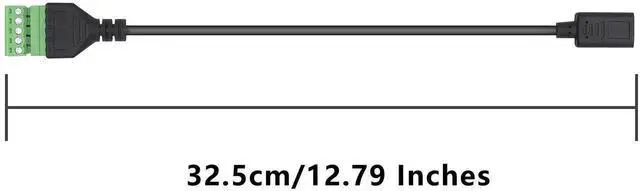

6, Cable Length: 30cm

7, Wiring Mode: solder free, terminal screw fixing Applicable

8, Compatitive Cell Phones, PC, Notebook, and other interface devices with USB TypeC

Package

USB C Female to 5P Solderless Terminal cable*1

Screwdriver*1
