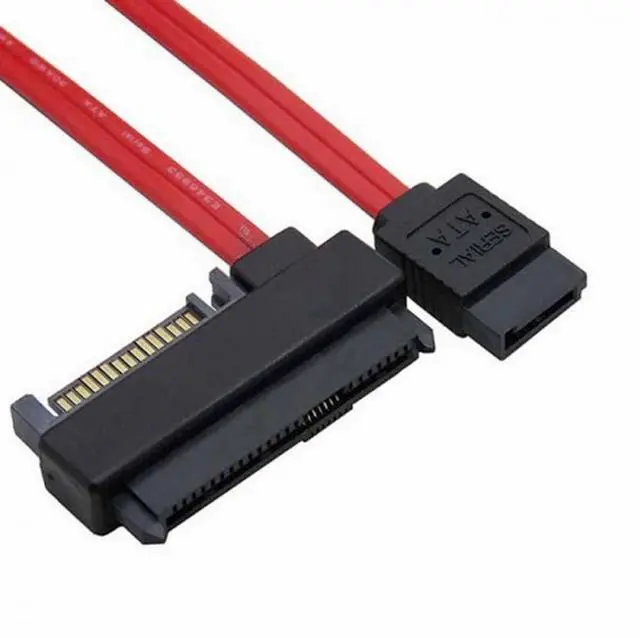

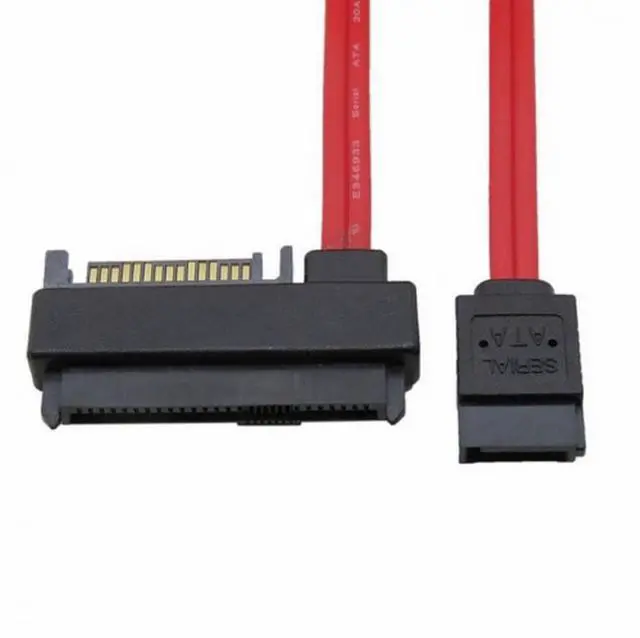

SFF-8482 SAS 29 Pin to 7 Pin SATA Hard Disk Drive Raid Cable with 15 Pin SATA Power Port
- SFF-8482 SAS 29 Pin to 7 Pin SATA Hard Disk Drive Raid Cable with 15 Pin SATA Power Port
- The SFF-8482 is a connector design for interfacing a connection for SAS drives, both SAS Hard drives and SAS SSD drives.
- The SFF-8482 is a 29-pin connector with a plastic body, and configured with 15 pins that support the power requirements of the drive, and (2) groups of 7 pins that carry the SAS data signals.
- The SFF-8482 supports 2 SAS ports (lanes) to/from the drive.
- Note:
- 1. It can connect the SATA hard disk to SATA motherboard.
- 2. It can connect the SAS hard disk to SAS motherboard.
- 3. It can't connect the SAS hard disk to normal SATA motherboard. (it will be worked if your motherboard has the SAS chipsit, Otherwise can't work.)
- 4. It can't connect the SATA hard disk to normal SAS motherboard. (it will be worked if your hard disk has the SAS chipsit, Otherwise can't work.)
- This SAS cable to 1x SATA with 50 cm length, enables you to connect a SAS HDD with SFF 8482 port to a SAS compatible SATA controller (hybrid controller).
- 7 Pin SATA Connector to 15 Pin Male Power Connector and 29 Pin SAS Connector.

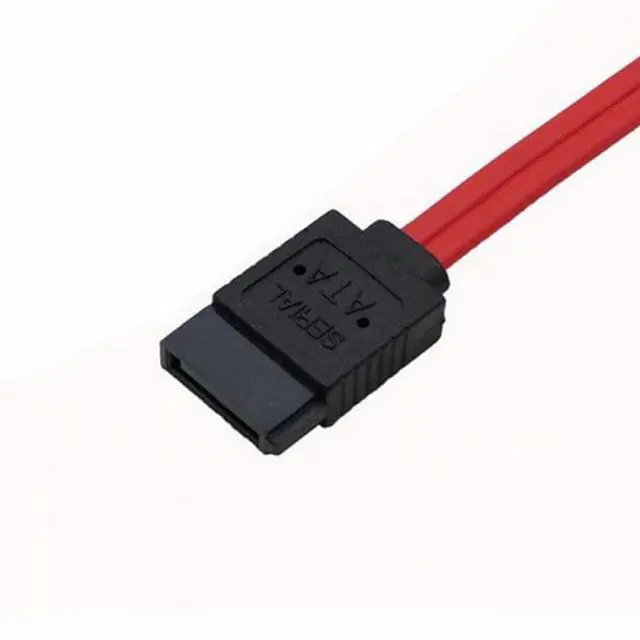

- Connector Details: 1 x 7 Pin Serial ATA Male.
- Connector Details: 1 x 15Pin Male.
- Connector Details: 1 x 29 Pin SAS.
- Length: 50cm(approx).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SFF-8482 SAS 29 Pin to 7 Pin SATA Hard Disk Drive Raid Cable with 15 Pin SATA Power Port
The SFF-8482 is a connector design for interfacing a connection for SAS drives, both SAS Hard drives and SAS SSD drives.
The SFF-8482 is a 29-pin connector with a plastic body, and configured with 15 pins that support the power requirements of the drive, and (2) groups of 7 pins that carry the SAS data signals.
The SFF-8482 supports 2 SAS ports (lanes) to/from the drive.
Note:
1. It can connect the SATA hard disk to SATA motherboard.
2. It can connect the SAS hard disk to SAS motherboard.
3. It can't connect the SAS hard disk to normal SATA motherboard. (it will be worked if your motherboard has the SAS chipsit, Otherwise can't work.)
4. It can't connect the SATA hard disk to normal SAS motherboard. (it will be worked if your hard disk has the SAS chipsit, Otherwise can't work.)
This SAS cable to 1x SATA with 50 cm length, enables you to connect a SAS HDD with SFF 8482 port to a SAS compatible SATA controller (hybrid controller).
7 Pin SATA Connector to 15 Pin Male Power Connector and 29 Pin SAS Connector.
Connector Details: 1 x 7 Pin Serial ATA Male.
Connector Details: 1 x 15Pin Male.
Connector Details: 1 x 29 Pin SAS.
Length: 50cm(approx).
