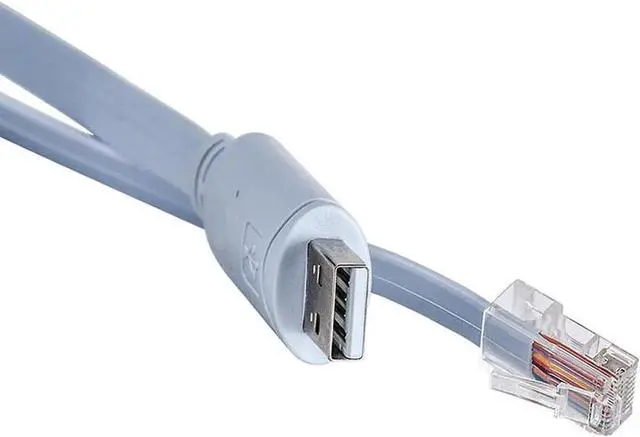

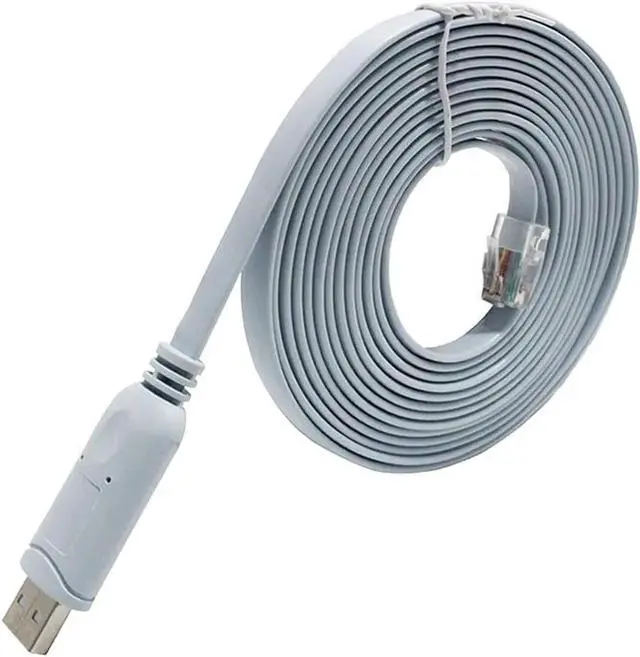

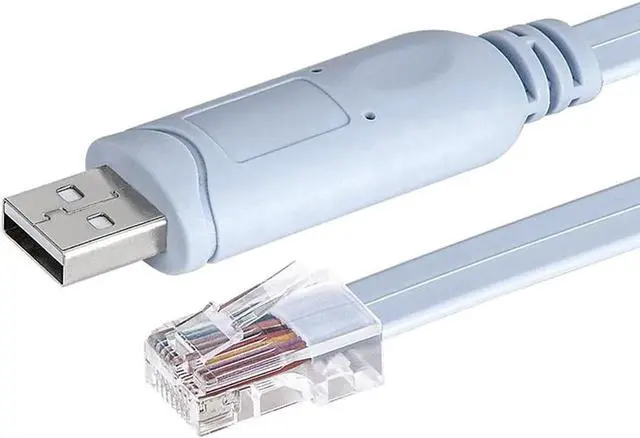

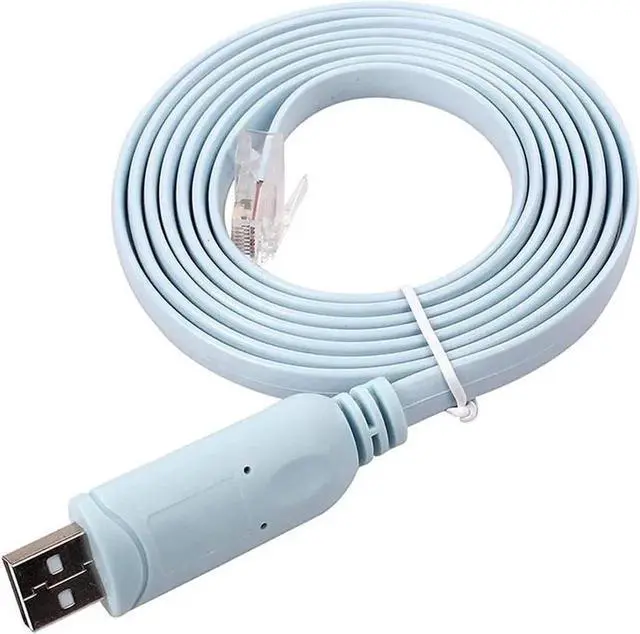

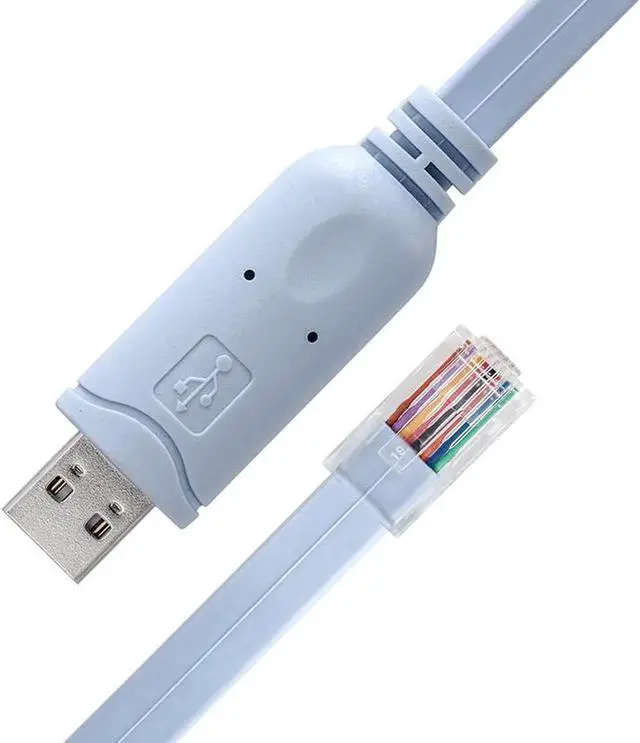

JAENFONG USB Console Cable,USB to RJ45 FTDI Chip Serial RS232 Console Cable,T232+ZT213 USB2.0 RS232 to RJ45 Console Cable/Rollover Cable for Routers/AP Router/Switch/ - 6FT

Features:

USB console cable adapter connects from the USB port of a computer to the RJ45 console port of a networking switch or router;

RJ45 to USB console cable connects new computers and laptops without a serial port

Console cable provides a convenient solution for configuring equipment with a console port;

A snagless RJ45 connector protects the tab from being torn off and stuck in the console port

Popular FTDI Chipset, Using FT232+ZT213 High Quality Imported Chip ensures its compatibility.

Windows 10 and the latest macOS usually include FTDI drivers as part of the OS when using this FTDI USB cable

Rollover cable reverses all 8 pins to connect from a computer to a network switch, RJ-45 DTE Pinouts RTS (1), DTR (2), TXD (3), GND (4), GND (5), RXD (6), DSR (7), CTS (8) USB ROLLOVER CABLE directly connects to a router, switch, server or wireless access point for configuration from the console port;

Full support for 32-bit and 64-bit Windows, MAC, Linux and Android, except Chrome OS

Compatible with JUNIPER, 3COM, Huawei Router Switches

Drivers are available which allow FTDI devices to work with the following operating systems: Windows 10 Windows 8.1 Windows 8.1 x64 Windows 8 Windows 8 x64 Windows Server201 2 Windows Server 2008 R2 Windows 7 Windows 7 x64 Windows Server 2008 Windows Server 2008 x64 Windows Vista Windows Vista x64 Windows Server 2003 Windows Server 2003 x64 Windows XP Windows XP x64 Windows ME Windows 98 Linux Mac OS X Mac OS 9 Mac OS 8 Windows CE. NET (Version 4.2 and greater) Android Windows RT

Specification

Connector A: USB 2.0 Male

Connector B: RJ45 Serial Port (NOT ethernet port)

Chipset: FTDI FT232+ZT213 Length: 6 feet

Color: Blue
