JAENFONG USB 3.0 / 3.1 Gen 2 IDC 20Pin to USB 3.1/3.2 Type-E A-Key Motherboard Internal USB Header Adapter Converter for Type C Front Panel Chassis Bracket (Straight Type-180 degree)

Feature

Providing a convenient solution for converting the available USB 3.0 / 3.1 Gen2 IDC 20pin header of a motherboard into a USB 3.1 /USB 3.2 A-Key (Type-E) 20 Pin Female;

Compatible with all of common motherboards with USB 3.0 19 pin header;

Connector A (motherboard): USB 3.0 internal 19/20 pin motherboard male housing header;

Connector B (front panel): USB 3.1 motherboard header 20 pin ( Type-E) A-Key front panel female header;

Data transfer speed is up to 10Gbps;

Plug and Play (No driver install is needed);

Support systems: WINXP/WIN7/WIN8/WIN10 32/64BIT/MAC/Linux;

Note: Not compatible with USB 2.0 motherboard IDC connector;

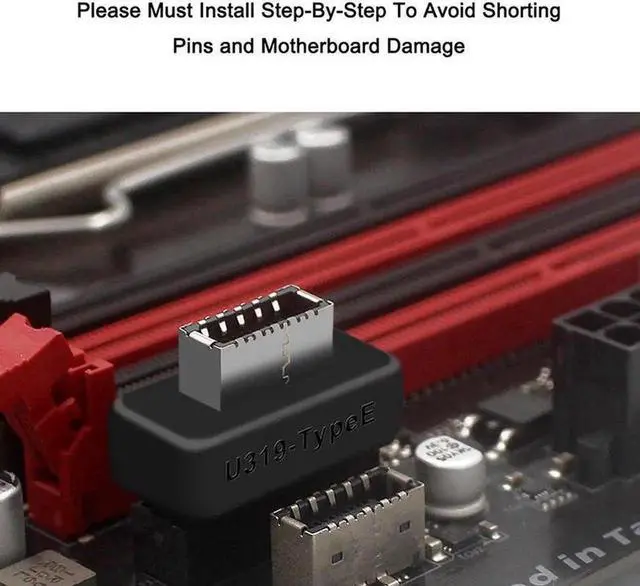

Notice: Must install the adapter step by step to avoid shorting pins and motherboard damage.

1 - Basically turn off your tower, unplug it, wait 10 seconds,

2 - install the male end for USB C in (make sure it's the correct orientation),

3 - Plug the adapter into the USB 3.0 header.

Doing this any other way may casue it either not being recognized, or usb drawing too much power warnings.
