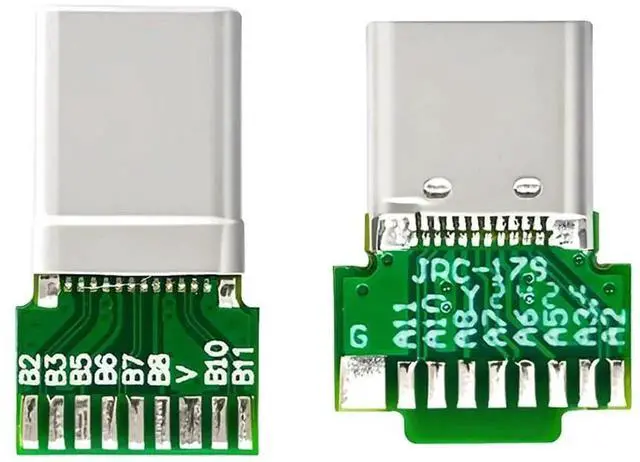

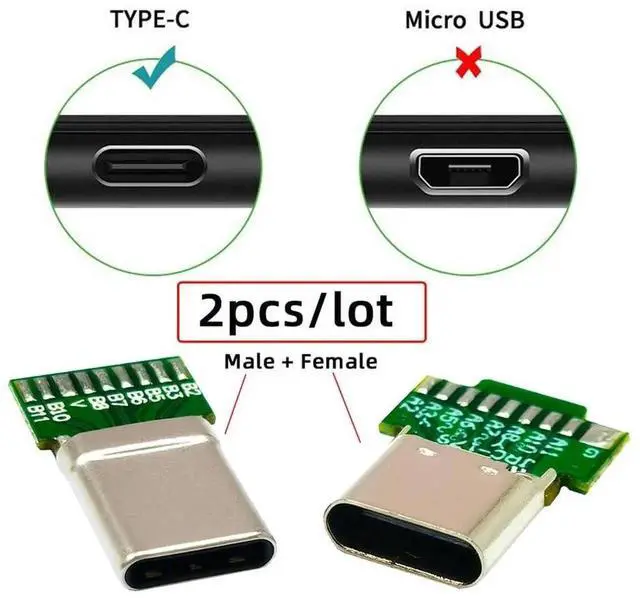

    JAENFONG 2pcs/lot USB-C OEM DIY USB 3.1 Type-C Male & Female Plug Socket Solder Type Connector with PCB

    Be the first to review this product...
    • You need to solder the connector yourself. Proficiency in manual soldering techniques is required.
    • Type C connector is the new design Compatible with phone,Reversible Design for Type C connector.

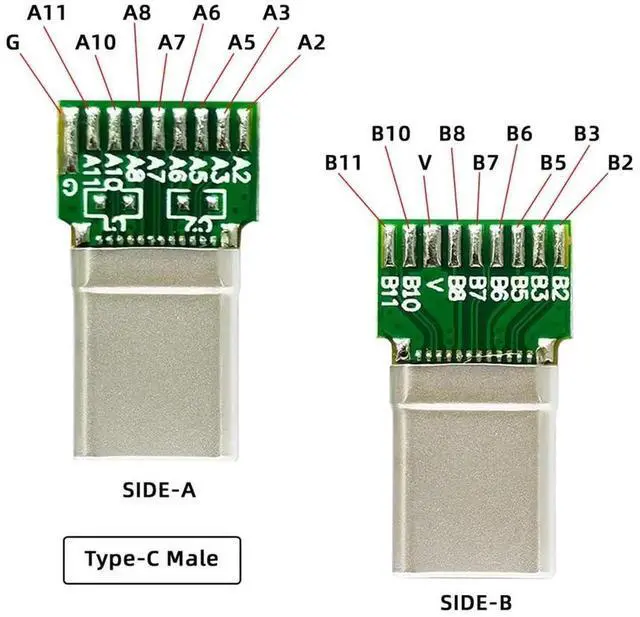

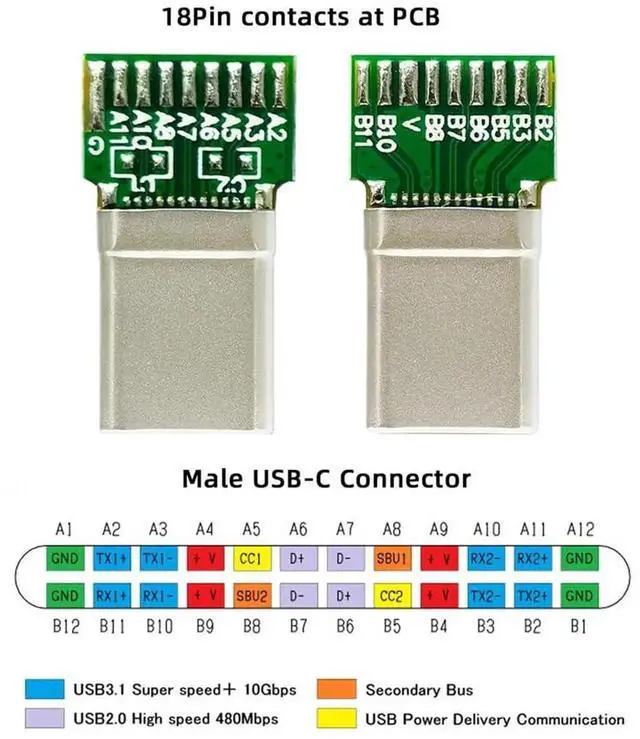

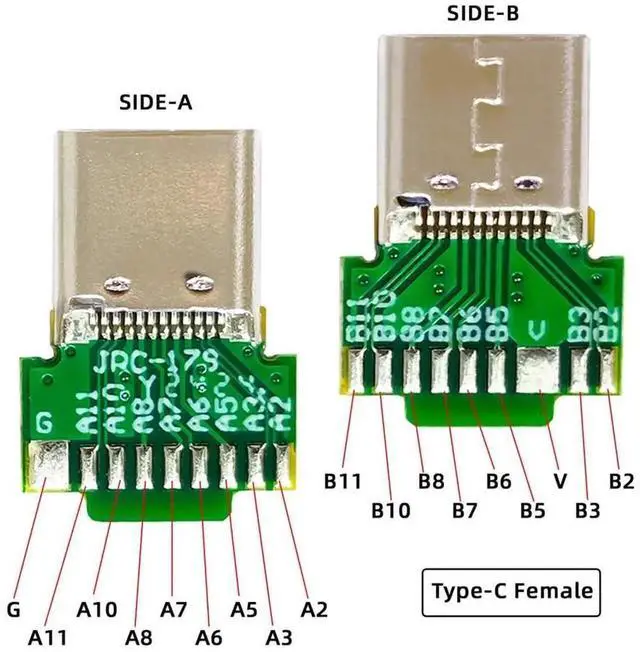

    • Attached with PC Board, The PCB end is 18pin pinout for Type-C 10Gbps Data and 65W Power.
    • Offers a throughput of up to DC 20V3.25A when used with a 65W input power and device. Work for 65W mac, laptop, tablet,phone. This connector will supply power when your USB-C device is in use.
    • Support 10Gbps data transfer rating.Compliant with USB Base Specification 3.1, Output USB3.1 interface and Type-C interface. Compliant with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1. You need to solder the connector yourself. Proficiency in manual soldering techniques is required.
    2. Type C connector is the new design Compatible with phone,Reversible Design for Type C connector.
    3. Attached with PC Board, The PCB end is 18pin pinout for Type-C 10Gbps Data and 65W Power.
    4. Offers a throughput of up to DC 20V3.25A when used with a 65W input power and device. Work for 65W mac, laptop, tablet,phone. This connector will supply power when your USB-C device is in use.
    5. Support 10Gbps data transfer rating.Compliant with USB Base Specification 3.1, Output USB3.1 interface and Type-C interface. Compliant with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
