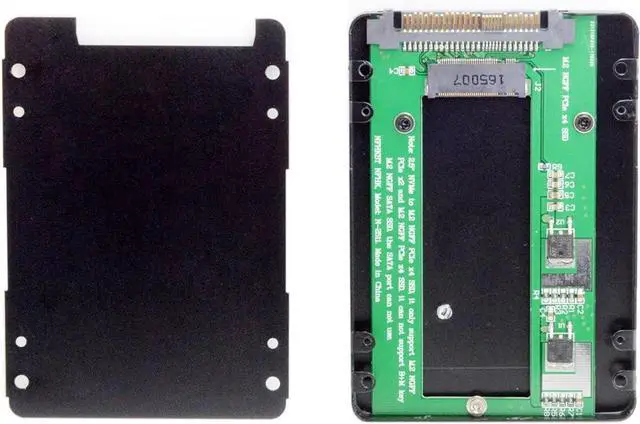

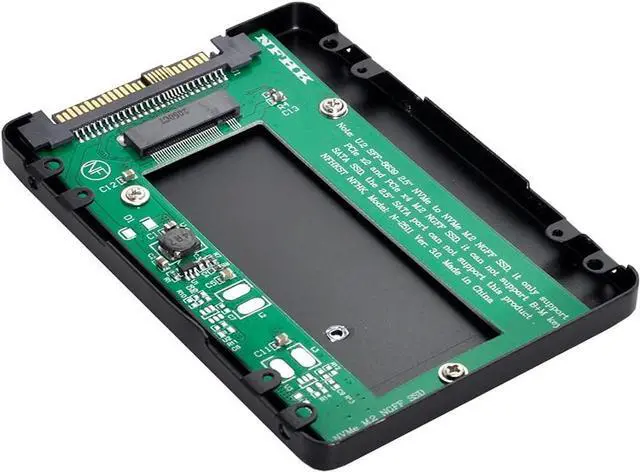

SFF-8639 NVME U.2 to M.2 M-key PCIe SSD Adapter for Mainboard Replace Intel SSD 750 p3600 p3700, With Black Case Enclosure, This converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format.

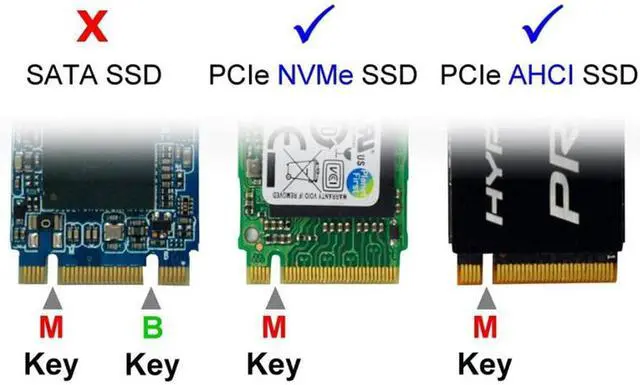

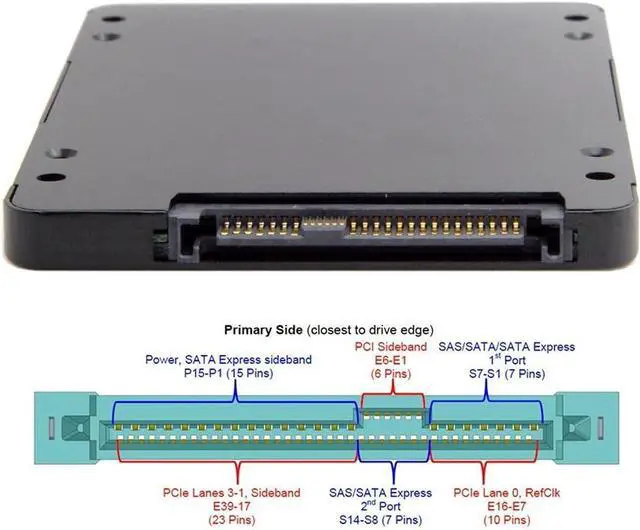

Need M-key or NVME SSD, the B-key or B/M-key SSD t work. The converter can be installed into your system internally through the U.2 68 pin interface. Connector: U.2 SFF-8639 male & 67 pin M.2 key M slot

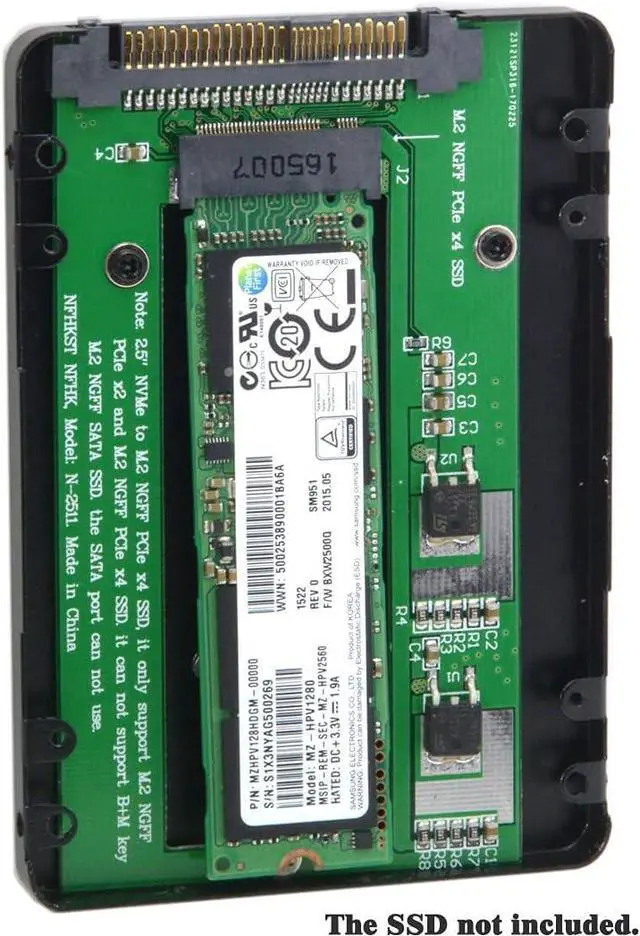

Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M, Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
System requirements: Windows 8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.16 ,A free U.2 SFF-8639 interface or A free SFF-8643 interface

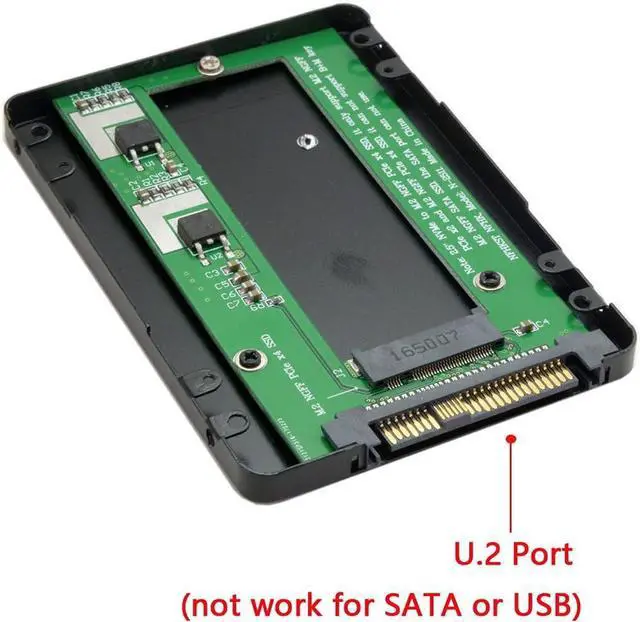

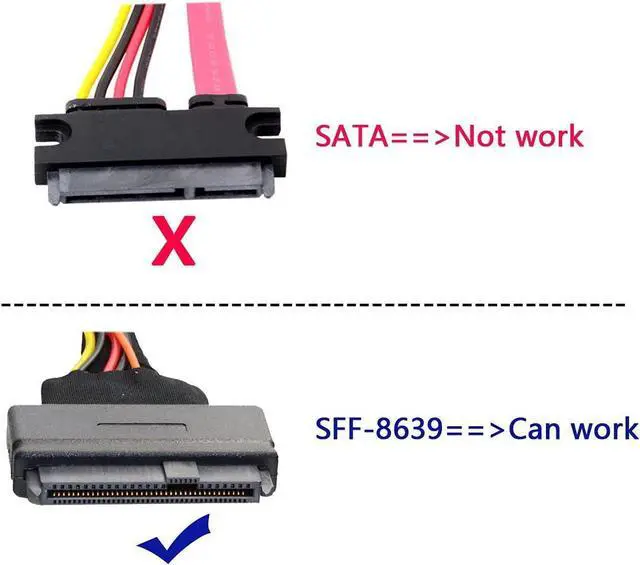

It does not work for SATA port.
