DIY OEM Type-C Female Socket Connector with VL160 Chipset Replace for USB3.0 Type-A Female DIP Type DC 5V Power
- VL160 CC Functional Define Role: Device (UFP, default) or Host (DFP),Plug Orientation Flipped or Not, and control Switch SEL.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
VL160 CC Functional Define Role: Device (UFP, default) or Host (DFP),Plug Orientation Flipped or Not, and control Switch SEL.

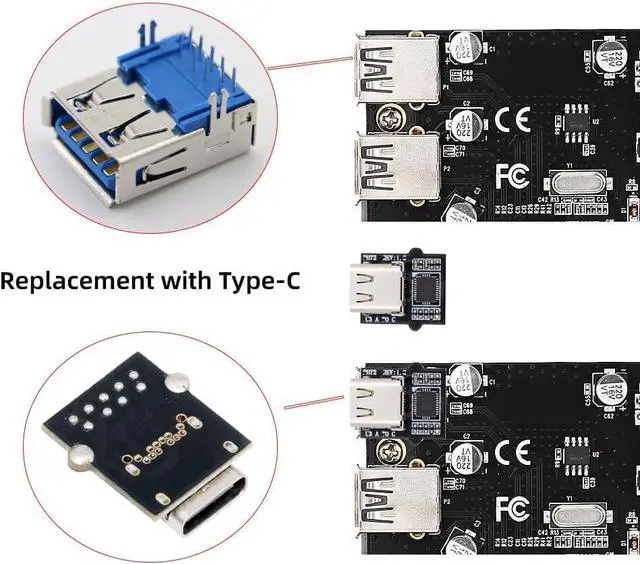

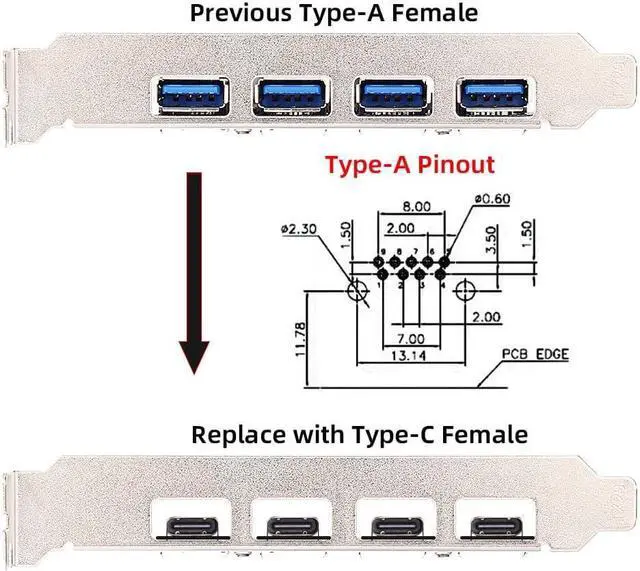

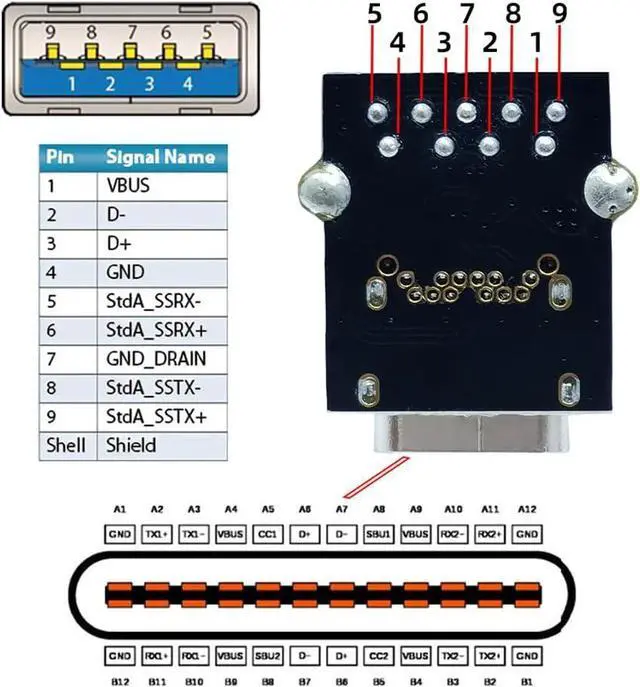

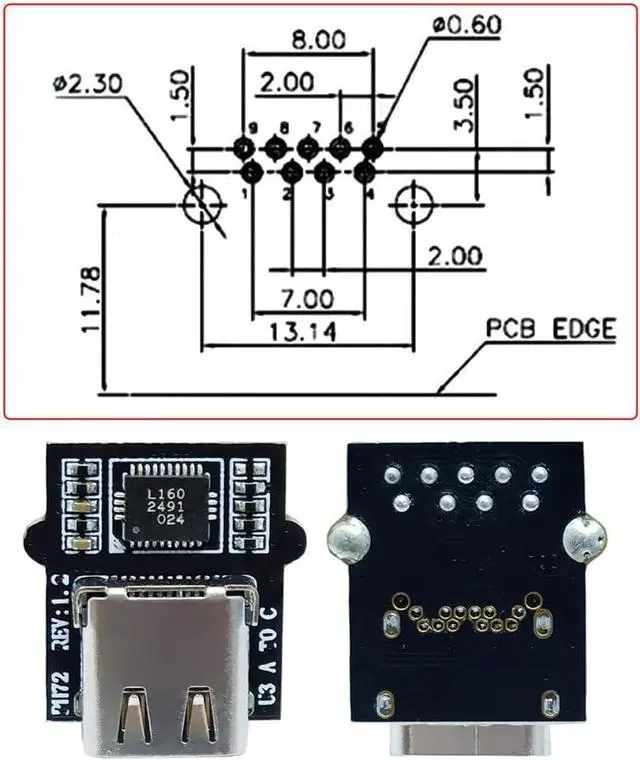

The Type-C female connector is replaced for USB3.0 Type-A DIP Female.For DIY OEM use. You need to solder the connector yourself.

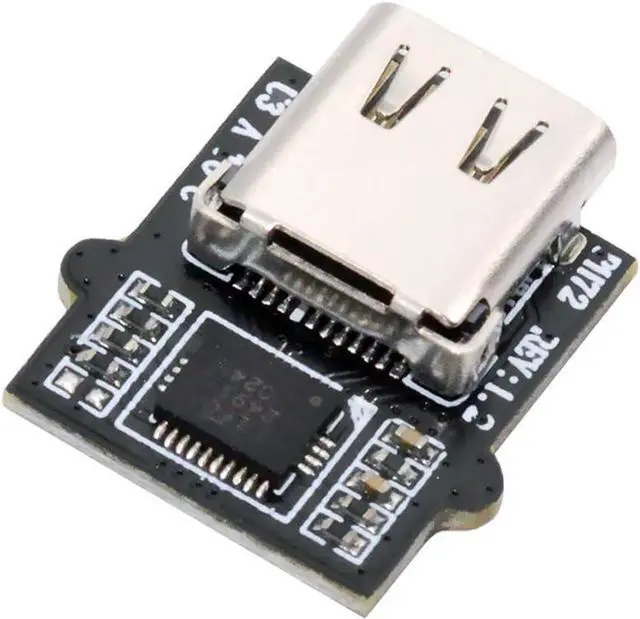

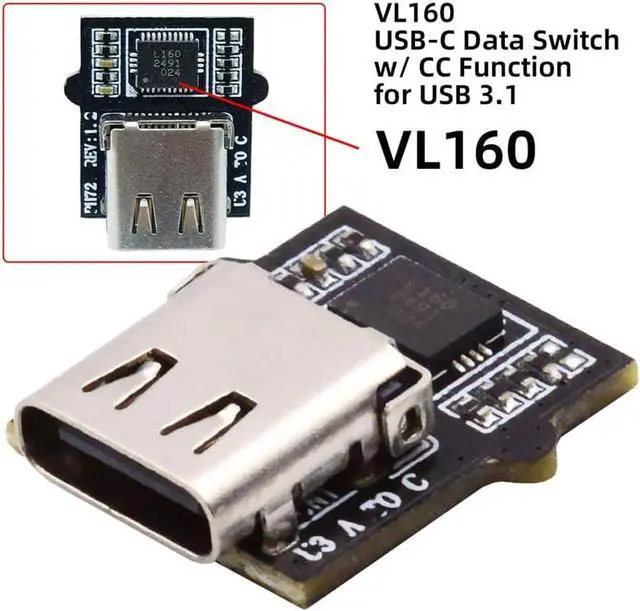

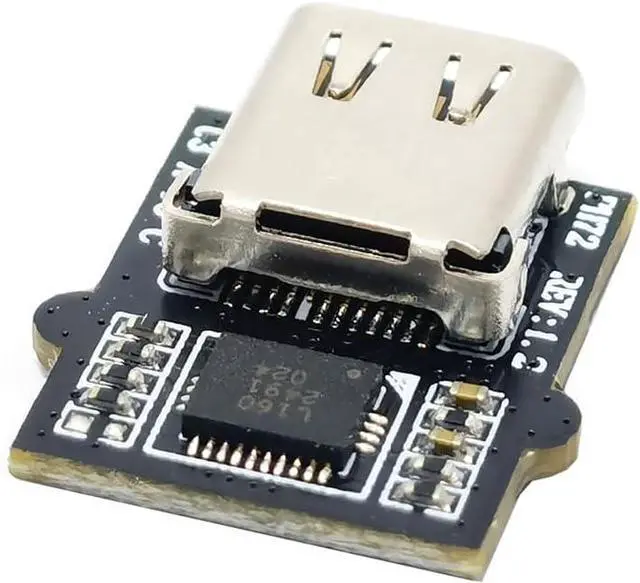

Build-in VL160 chipset. VL160 is USB Type-C 2:4 differential channels mux switch and integrated CC logic function for USB 3.1 type-C application, for mux switch signal performance supports up to USB 3.1. VL160 integrated internal power switch support Vconn 5V supply and with over current protection.
Fast power:Offers a througut of up to DC 5V 3A when used with a Type-C USB2.0 power and device.
DIY OEM Type-C Female Socket Connector with VL160 Chipset Replace for USB3.0 Type-A Female DIP Type DC 5V Power
The Type-C female connector is replaced for USB3.0 Type-A DIP Female.For DIY OEM use. You need to solder the connector yourself.
Build-in VL160 chipset. VL160 is USB Type-C 2:4 differential channels mux switch and integrated CC logic function for USB 3.1 type-C application, for mux switch signal performance supports up to USB 3.1. VL160 integrated internal power switch support Vconn 5V supply and with over current protection.
Fast power:Offers a througut of up to DC 5V 3A when used with a Type-C USB2.0 power and device.
DIY OEM Type-C Female Socket Connector with VL160 Chipset Replace for USB3.0 Type-A Female DIP Type DC 5V Power
