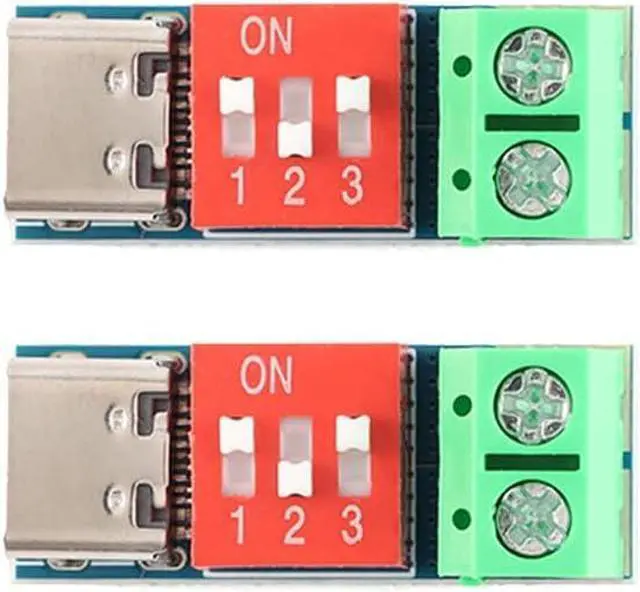

Mini PD Sink PD3.0/2.0, BC1.2 DC-DC Buck Converter Adjustable Power Supply Module 24V to 20V 15V 12V 9V 5V (2 Pack).

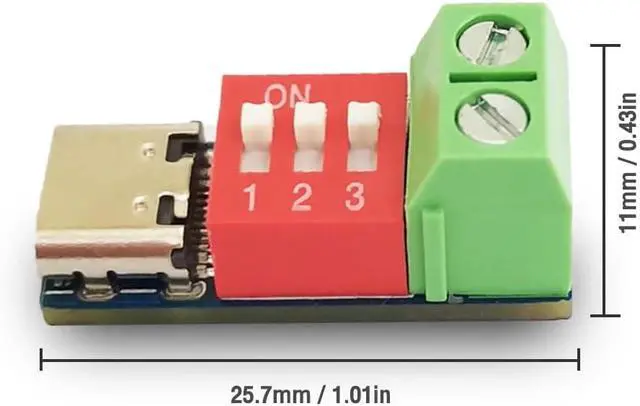

- Very small size, length, width and height are 25.7 x 11 x 11 mm
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Very small size, length, width and height are 25.7 x 11 x 11 mm
Maximum output current can reach 3 A, it is recommended to use below 1.5 for a long time
Output ripple: less than 30 mV; Switching frequency: 1.5 MHz (higher), usually 1 MHz
When using this module with an inductive load, pay attention to the current protection in the back stage. For example, when using a steering gear or motor, a large ripple may be generated, which may affect the chips in the back stage circuit. You can add Zener and capacitor for protection
Package: 2 Buck modules
Maximum output current can reach 3 A, it is recommended to use below 1.5 for a long time
Output ripple: less than 30 mV; Switching frequency: 1.5 MHz (higher), usually 1 MHz
When using this module with an inductive load, pay attention to the current protection in the back stage. For example, when using a steering gear or motor, a large ripple may be generated, which may affect the chips in the back stage circuit. You can add Zener and capacitor for protection
Package: 2 Buck modules
