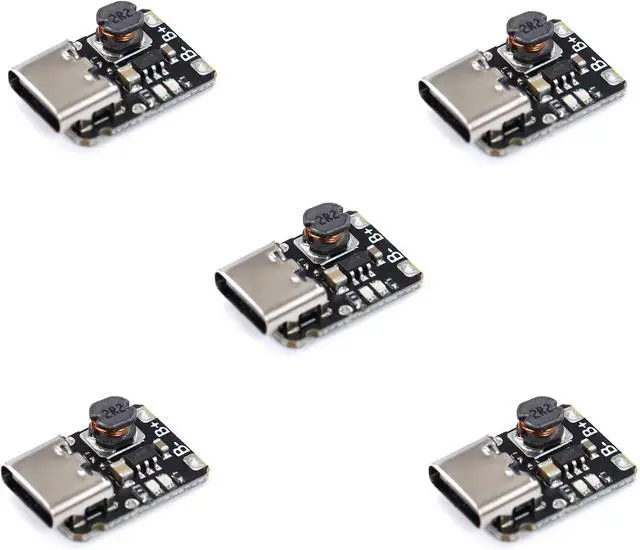

5pcs 5V 1.2A Charging Discharge Module USB Type-C 18650 Lithium Battery Discharge Charger Board with Protection (Replace TP4056 or TP4057).
- 4.5-5.5V power supply, suitable for single lithium battery (parallel connection is not limited), maximum 1.2A, can stabilize 1A current as required
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
4.5-5.5V power supply, suitable for single lithium battery (parallel connection is not limited), maximum 1.2A, can stabilize 1A current as required
Suitable for all types of 3.7 V lithium batteries, including 18650 and aggregate batteries
With overshoot and overdischarge protection, overdischarge protection 2.9 V, charge cut-off voltage 4.2 V
When there is no external input voltage, it automatically switches to output mode, supports small current output of 5V, and supports output of about 450 ma. If the output is 1A, the voltage will be around 4.9V-4.5V depending on the power

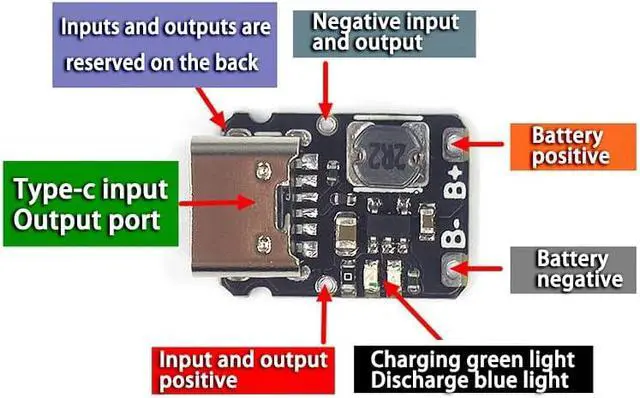

Automatically switch input and output, charge the battery when the external voltage is input, otherwise discharge, the charging green light flashes, the green light is always on when fully charged, the light is not on when discharging without load standby, and the blue light is on when discharging with load. The standby power consumption is approximately 0.8 ma
Suitable for all types of 3.7 V lithium batteries, including 18650 and aggregate batteries
With overshoot and overdischarge protection, overdischarge protection 2.9 V, charge cut-off voltage 4.2 V
When there is no external input voltage, it automatically switches to output mode, supports small current output of 5V, and supports output of about 450 ma. If the output is 1A, the voltage will be around 4.9V-4.5V depending on the power
Automatically switch input and output, charge the battery when the external voltage is input, otherwise discharge, the charging green light flashes, the green light is always on when fully charged, the light is not on when discharging without load standby, and the blue light is on when discharging with load. The standby power consumption is approximately 0.8 ma
