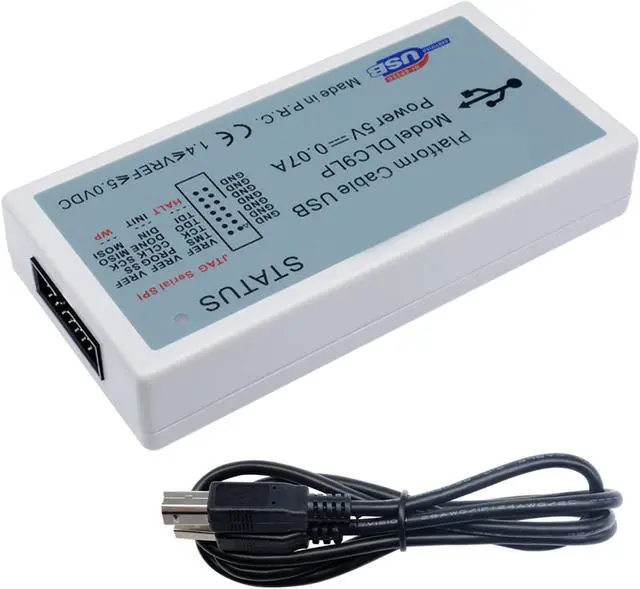

Xilinx Platform Cable USB FPGA CPLD Jtag SPI Download Debugger Programmer DLC9 DLC9LP with USB Type-B Cable DC5V 0.07A Platform Cable USB

Xilinx Platform Cable USB FPGA CPLD Jtag SPI Download Debugger Programmer DLC9 DLC9LP with USB Type-B Cable DC5V 0.07A platform cable usb
Features:
brand new and
The Platform Cable USB ,a USB compatible cable for in-circuit configuration and programming of all Xilinx devices.It derives all operating power from the hub port controller.
No external power supply is required. A sustained slave-serial FPGA configuration transfer rate of 24 s is possible in a Hi-Speed USB environment.
Using CY7C68013A+XC2C256 solution, fully for xilinx Platform Cable USB
Supports all Xilinx devices, FPGA configuration and PROM/CPLD programming;Supports Jtag, Slave-Serial and SPI.
Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V
Selectable clock frequency, supports software automatic frequency adjustment
Supported on for Windows and Hat Linux
Automatically senses and adapts to I/O voltage
clock speeds are selectable from 750 kHz to 24 MHz.

Specifications:
Sizeapprox 110x50x20mm/ 4.33x1.97x0.79in
Model: DLC9LP
Power: 5V 0.07A
Supported Software: Xilinx ISE 8 to ISE 14.7 and up-to-date ISE software/ Xilinx Vivado/ IMPACT/ ChipScope
Microblaze embedded processor debugging
Supported Device: All Xilinx devices, FPGA and PROM/CPLD:/ All Virtex-FPGA families/ All Spartan-FPGA families
XC9500 / XC9500XL / XC9500XV CPLDs/ CoolRunnerXPLA3 / CoolRunner-II CPLDs
XC18V00 ISP PROMs/ Platform XCF00S/XCF00P/XL PROMs
XC4000 series FPGAs/ for Xilinx devices including V7, Z7 etc.

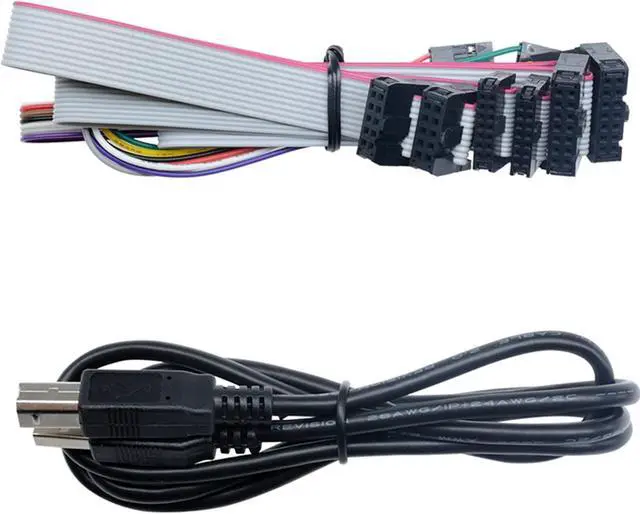

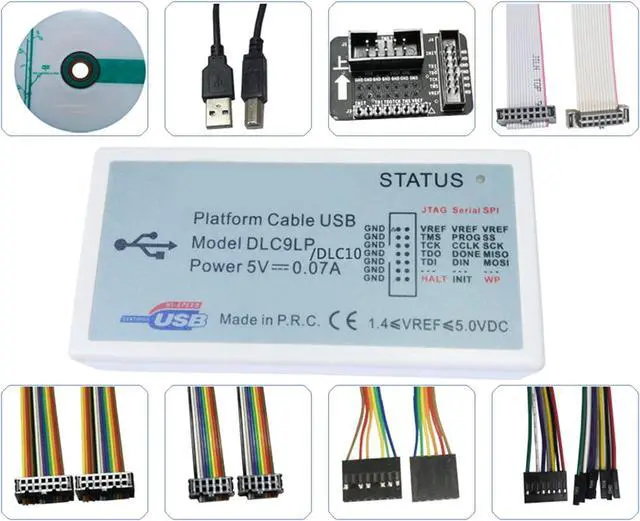

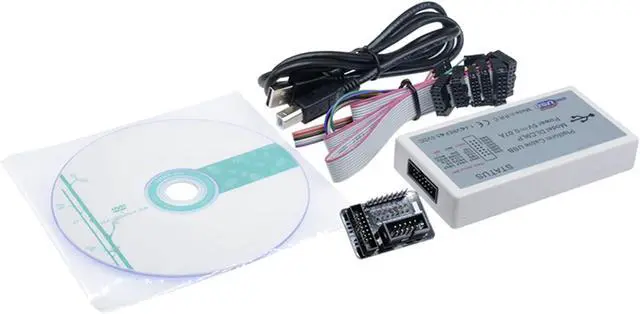

Package Includes:
1 PC x Platform Cable USB
1 PC x Jtag adapter
1 PC x USB 2.0 cable
1 PC x 8-pin to 7-pin separated robin cable
1 PC x 14-pin (2.5mm Jtag flat cable
1 PC x 14-pin (2mm Jtag flat cable
1 PC x 10-pin (2.5mm Jtag flat cable

Note:
Due to the probl
