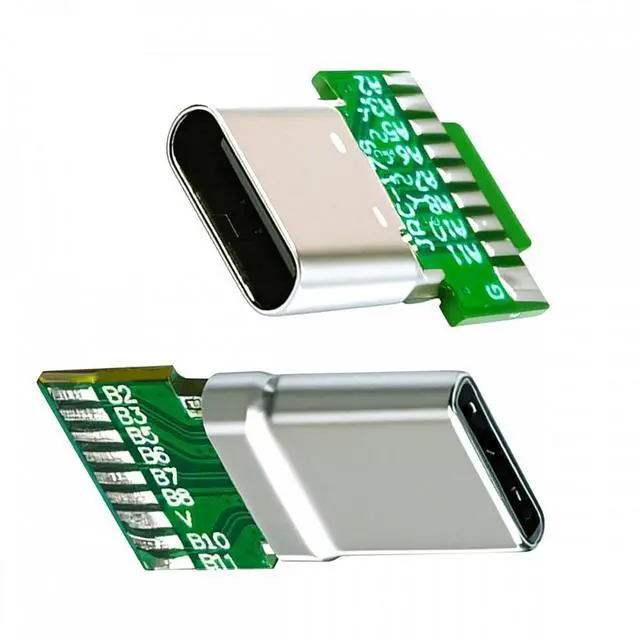

2pcs/lot OEM DIY USB-C USB 3.1 Type-C Male & Female Plug Socket Connector Solder Type with PCB
- 2pcs/lot OEM DIY USB-C USB 3.1 Type-C Male and Female Plug Socket Connector Solder Type with PCB

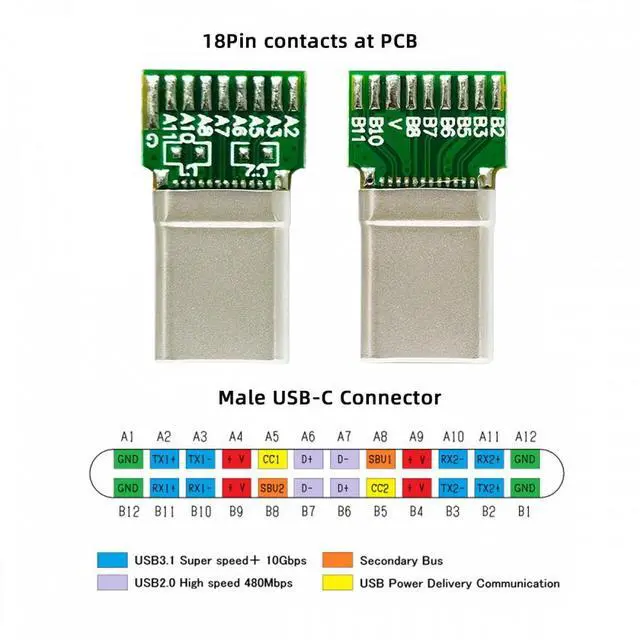

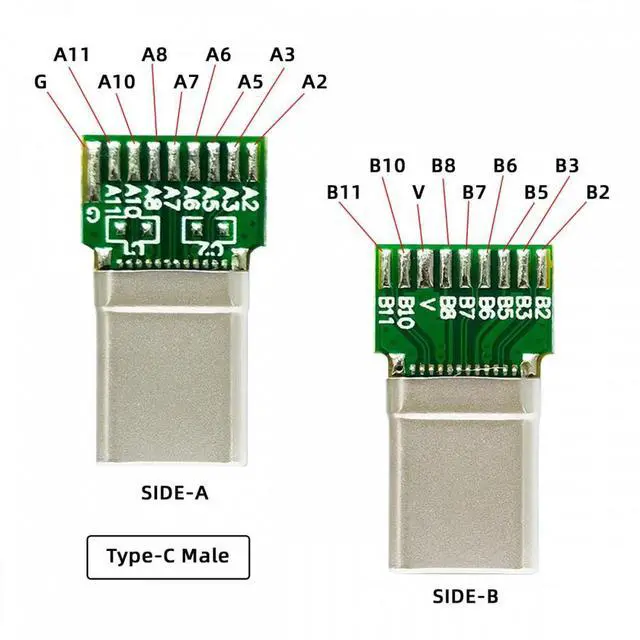

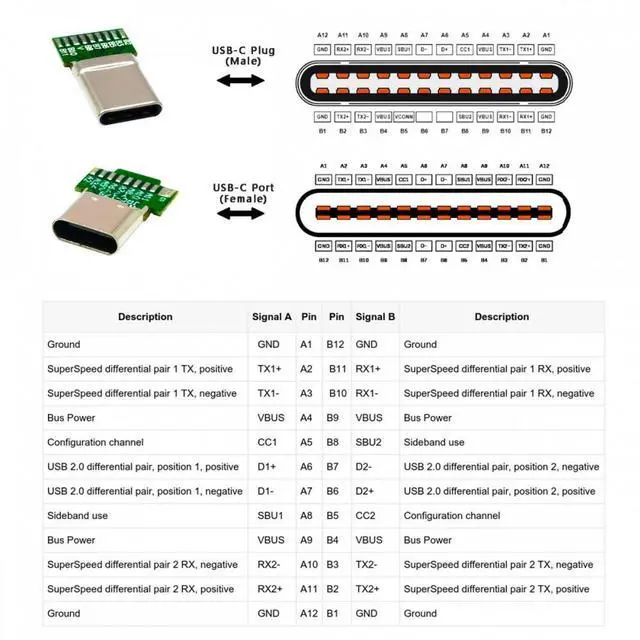

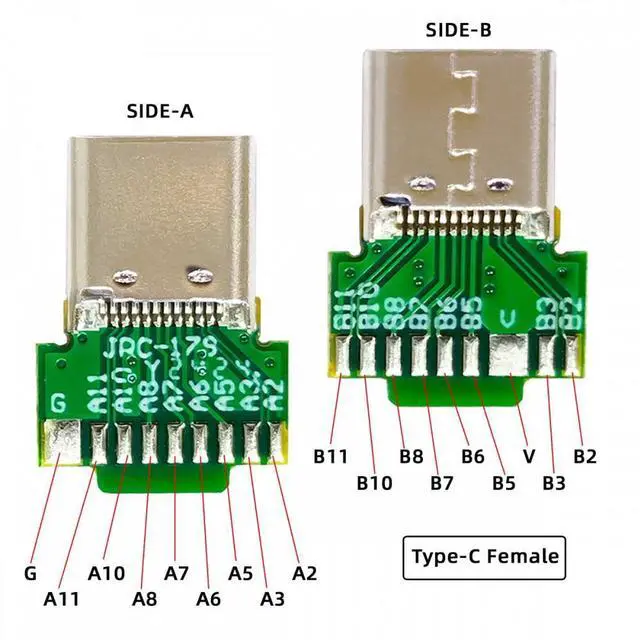

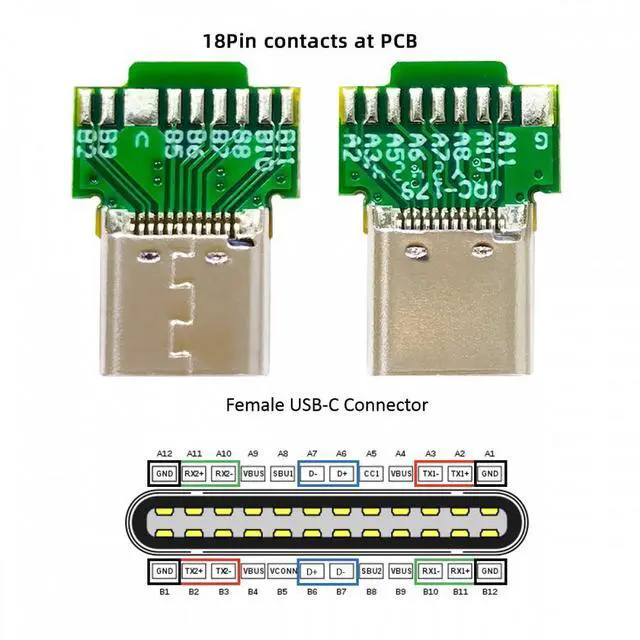

- Attached with PC Board, The PCB end is 18pin pinout for Type-C 10Gbps Data and 65W Power.
- Offers a throughput of up to DC 20V3.25A when used with a 65W input power and device. Work for 65W mac, laptop, tablet,phone.
- This connector will supply power when your USB-C device is in use.
- Support 10Gbps data transfer rating.Compliant with USB Base Specification 3.1, Output USB3.1 interface and Type-C interface. Compliant with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
- You need to solder the connector yourself. Proficiency in manual soldering techniques is required.
- Type C connector is the new design Compatible with phone,Reversible Design for Type C connector.

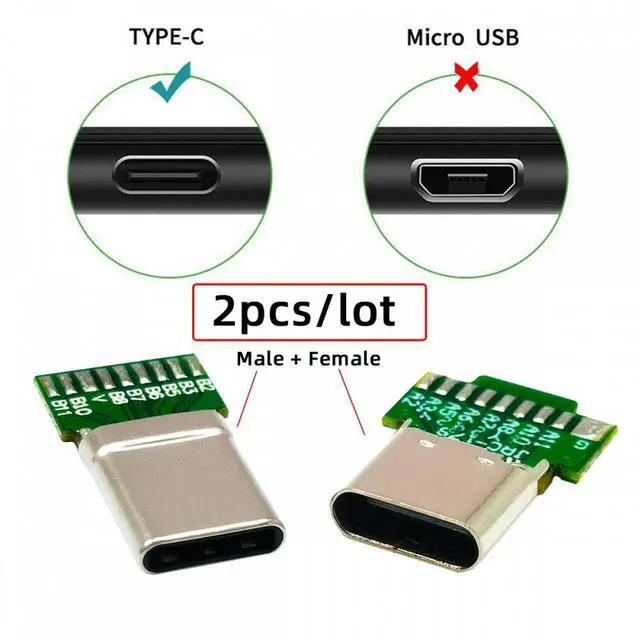

- 2pcs connector in the package. (Male+Female)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2pcs/lot OEM DIY USB-C USB 3.1 Type-C Male and Female Plug Socket Connector Solder Type with PCB
Attached with PC Board, The PCB end is 18pin pinout for Type-C 10Gbps Data and 65W Power.
Offers a throughput of up to DC 20V3.25A when used with a 65W input power and device. Work for 65W mac, laptop, tablet,phone.
This connector will supply power when your USB-C device is in use.
Support 10Gbps data transfer rating.Compliant with USB Base Specification 3.1, Output USB3.1 interface and Type-C interface. Compliant with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
You need to solder the connector yourself. Proficiency in manual soldering techniques is required.
Type C connector is the new design Compatible with phone,Reversible Design for Type C connector.
2pcs connector in the package. (Male+Female)
