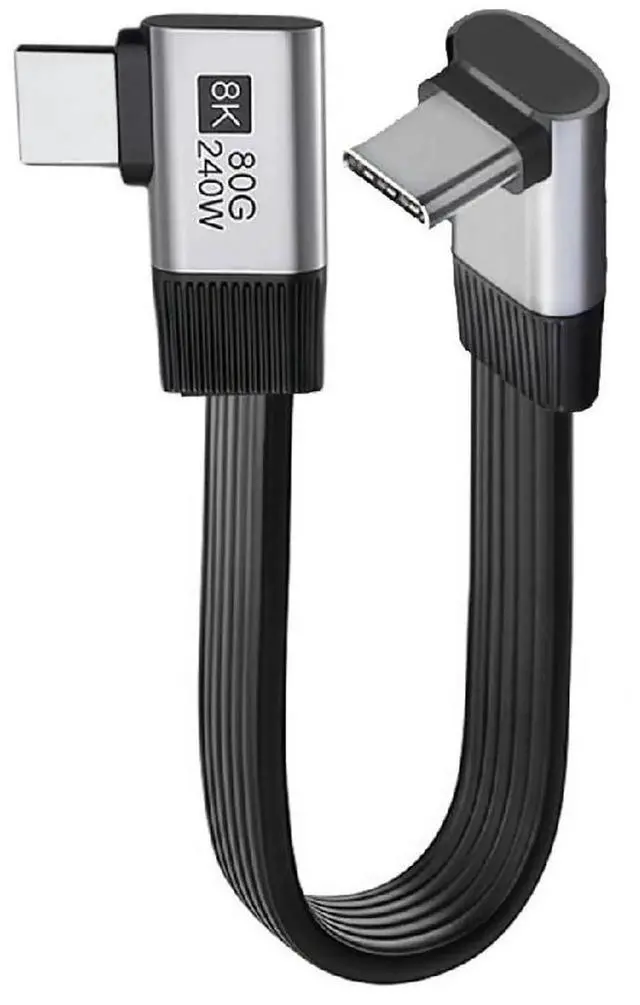

AJMRTC 20cm Flat Slim FPC USB5.0 MaletoMale Cable,UpAngled 90° to RightAngled 90° Connectors,80Gbps,240W PD,16K@30Hz 8K@60Hz 5K Video,Compatible with USB4.0 Thunderbolt 3/4/5
- Dualdifferential 90degree angled ends: one upangled plug and one rightangled plug, relieves port strain for cramped miniITX chassis, docking stations and embedded hardware installations.
- Flat slim FPC ribbon construction delivers ultralowprofile routing, fits narrow gaps where round cables cannot operate; supports gentle bending for PC modding projects.
- USB5.0 specification achieves full 80Gbps bidirectional bandwidth for massivefile transfer, NVMe SSD enclosures and eGPU highspeed peripheral connectivity.

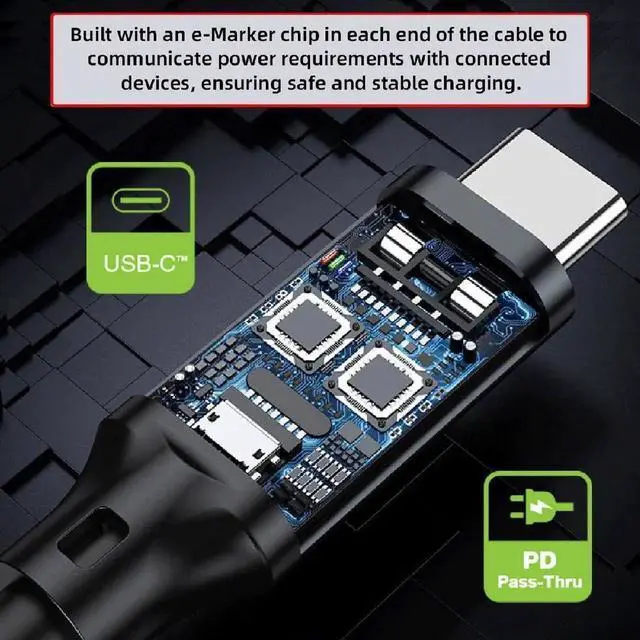

- Integrated EMarker chip supports max 240W PD3.1 EPR power delivery, charging highpower USBC laptops concurrently with data and ultraHD video transmission.
- DP AltMode outputs stable 16K@30Hz,8K@60Hz and 5K video signals; backward compatible with 40Gbps USB4.0 and Thunderbolt 3/4/5; driverfree plugandplay.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC 20 cm dualangled flat slim FPC maletomale USBC cable features an upangled 90degree connector on one side and a rightangled 90degree connector on the opposite end, purposebuilt for complex spacerestricted layouts inside compact PC cases, docking enclosures and embedded equipment. The thin flat FPC ribbon occupies minimal clearance and enables lowprofile routing. Avoid sharp creases to protect internal circuits. Compliant with USB5.0 standard, it delivers symmetric 80Gbps throughput for rapid largemediafile backup and external NVMe solidstate drive access. Builtin certified EMarker chip enables up to 240W PD3.1 EPR highpower charging for powerhungry USBC notebooks without interrupting ongoing data sync or video streaming. DisplayPort AlternateMode supports crisp 16K@30Hz,8K@60Hz and 5K ultraHD video for compatible professional monitors. Fully backward interoperable with 40Gbps USB4.0 and Thunderbolt 3/4/5 hardware. No drivers required for plugandplay performance. Ideal for miniITX builds, custom chassis modification, dockingstation internal wiring and specialized embeddeddevice assembly. Note: Video output function requires host device DP AltMode capability; never sharply fold or crease the FPC ribbon cable.

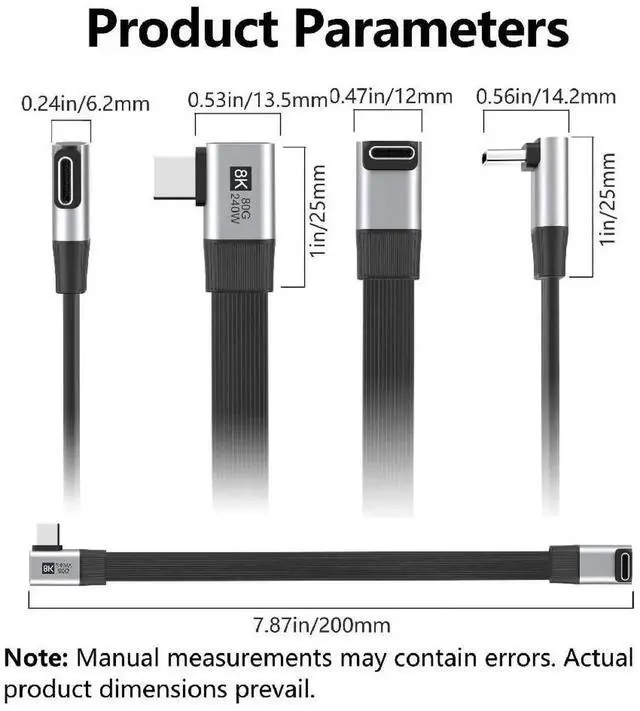

Specifications- Brand: AJMRTC
- Standard: USB5.0, backward compatible with USB4.0, Thunderbolt 3 / 4 / 5

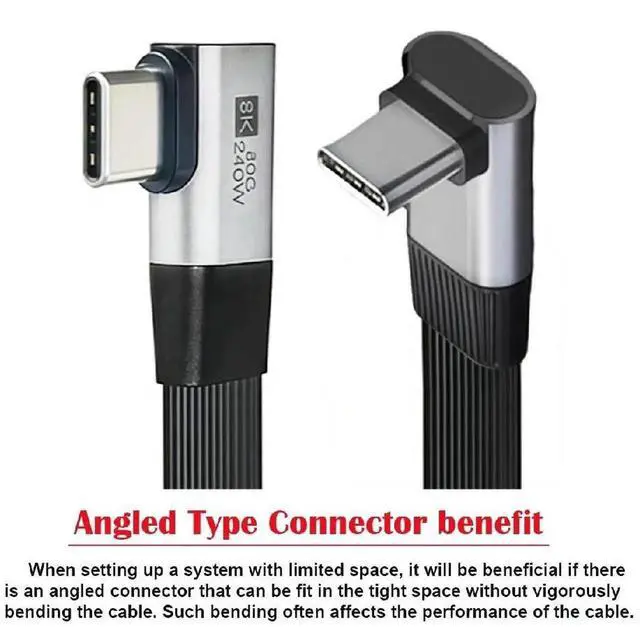

- Connector: MaletoMale, One End UpAngled 90°, Opposite End RightAngled 90°
- Max Data Rate: 80Gbps Bidirectional, backward to 40Gbps
- PD Power Delivery: Max 240W PD3.1 EPR
- Supported Resolution: 16K@30Hz, 8K@60Hz, 5K via DP Alt Mode

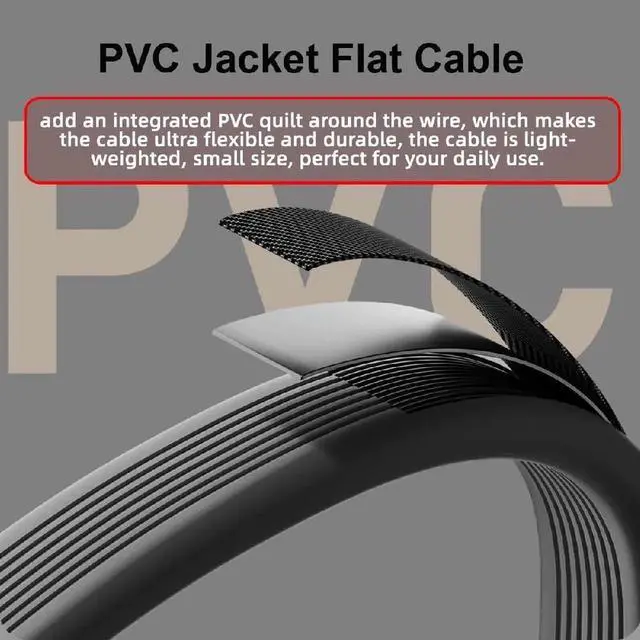

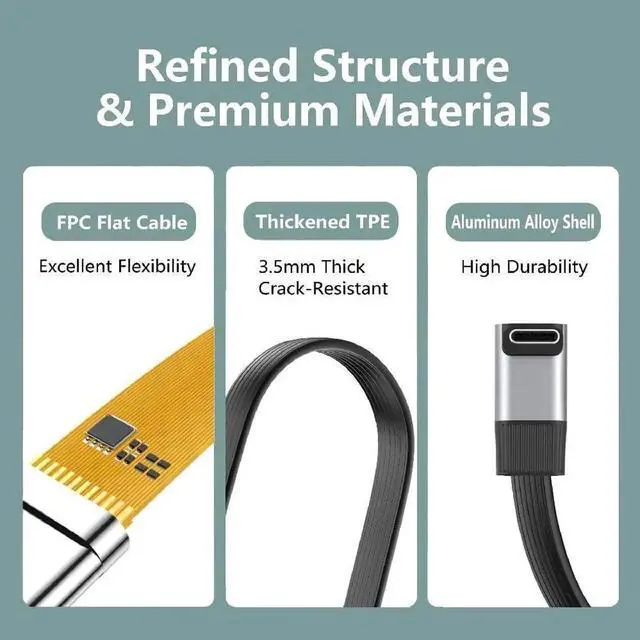

- Cable Construction: Flat Slim Flexible FPC Ribbon
- Cable Length: 20cm
- Compatible Hardware: USBC laptops, NVMe SSD enclosures, eGPU, docking stations, DPAltMode monitors
- Application: Tightgap internal routing, miniITX & customcase DIY modding, data transfer, PD charging, ultraHD video output
- Note: Avoid sharp creases on FPC ribbon; video capability depends on host DP AltMode support
