AJMRTC M.2 MKey to USB3.2 Gen2x2 TypeE 20Gbps FrontPanel Host Adapter Card, ASM3242 Chipset 2280 NGFF Express Card, Add Internal TypeE Header for Desktop Motherboard, DIY Case USBC Port Expansion
- - Powered by ASMedia ASM3242 controller chip, converts motherboard M.2 MKey 2280 NGFF slot into USB3.2 Gen2x2 TypeE 20pin frontpanel header with 20Gbps bandwidth
- - Delivers stable 20Gbps highspeed USB signal for case frontpanel USBC port upgrade; backward compatible with USB3.1 / USB3.0 peripherals
- - Comes with mini 4pin power input for stable controller power supply; equipped with cooling heatsink to avoid thermal throttling under sustained heavyload transfers
- - Hostside expansion card only, used for adding internal TypeE header; cannot read M.2 SSD itself; requires motherboard M.2 slot running PCIE x4 lanes
- - Plugandplay for Windows and Linux; SATAbased M.2 SSD is not supported; ideal for miniITX, MATX ATX desktop DIY chassis modification
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC M.2 MKey to TypeE host adapter card adopts premium ASMedia ASM3242 chipset. It turns spare 2280 M.2 MKey PCIE slot into internal USB3.2 Gen2x2 TypeE 20pin frontpanel header, bringing 20Gbps highspeed USBC signal to your PC case front panel. Integrated heatsink prevents overheating and speed drop during longtime largefile transmission. Mini 4pin power interface ensures sufficient power supply for controller. This is hostside expansion hardware, it will NOT detect or boot M.2 SSD. Works with Windows and Linux operating systems. Prepurchase note: Your motherboard M.2 slot must be set to PCIE x4 mode. SATA M.2 drives are incompatible. TypeE frontpanel cable sold separately.
Specifications- Brand: AJMRTC

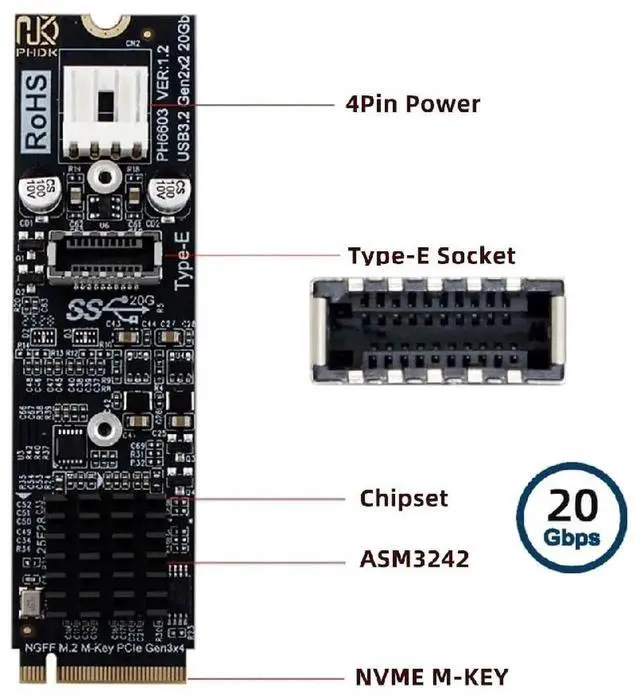

- Chipset: ASMedia ASM3242
- Host Interface: M.2 MKey Male (2280 NGFF)
- Output Port: USB3.2 Gen2x2 TypeE 20Pin Female

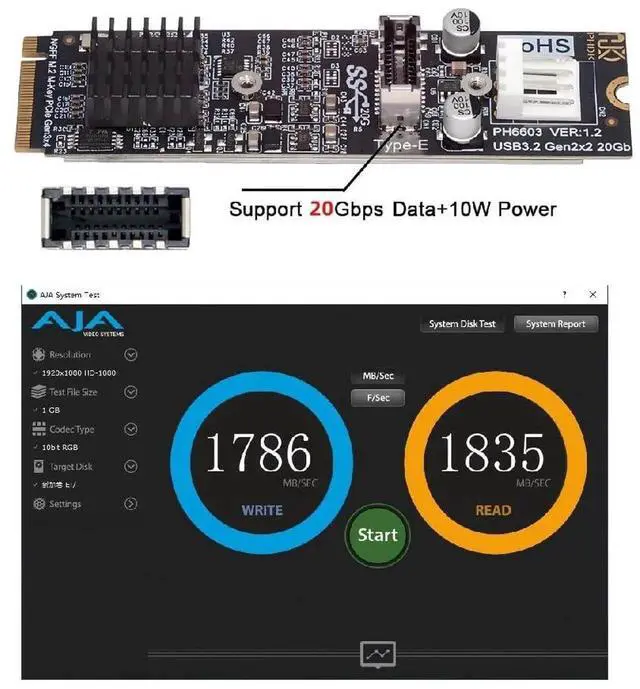

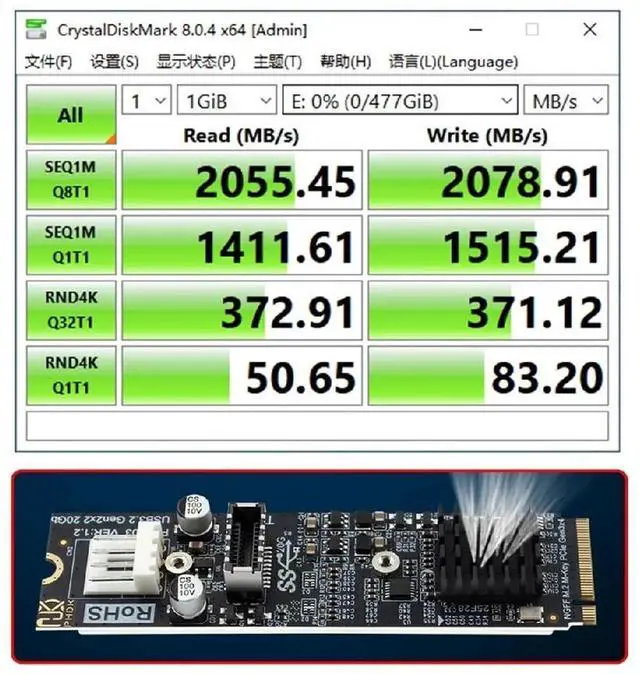

- Max Bandwidth: 20Gbps
- Auxiliary Power: Mini 4Pin power (connect to SATA power source)
- Cooling: Metal heatsink
- Supported SSD Size: M.2 2280 MKey slot (for host signal only, cannot access SSD)

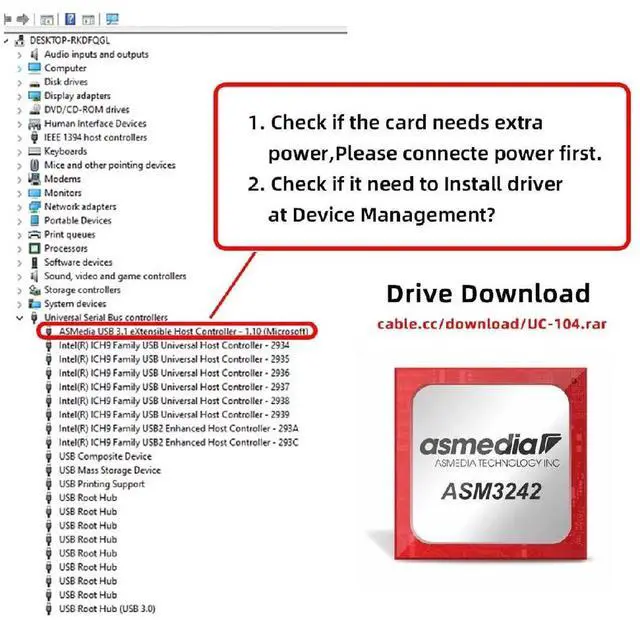

- Supported OS: Windows, Linux
- Remarks: Hostside expansion only, cannot read M.2 SSD; M.2 slot must run PCIE x4 mode; SATA M.2 not supported
- Application: Desktop frontpanel USBC upgrade, DIY custom chassis modification

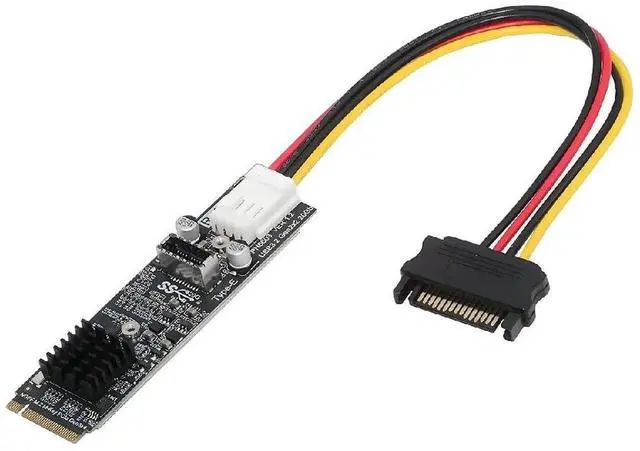

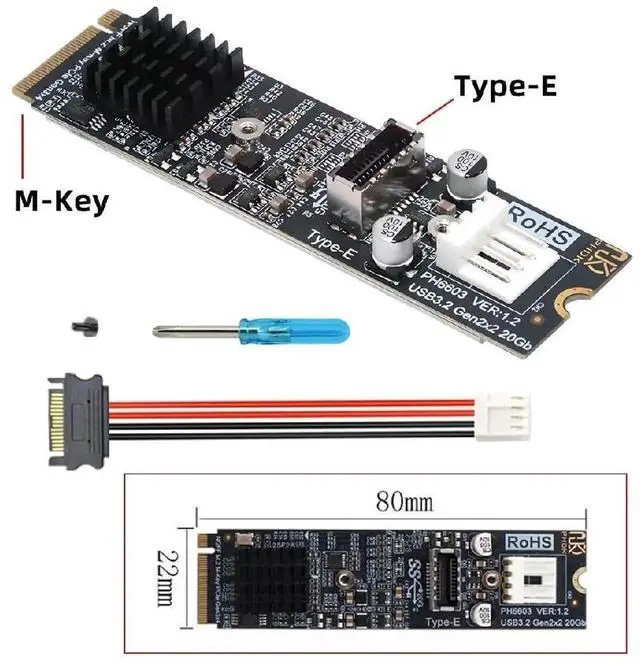

- Package Includes: M.2 MKey to TypeE adapter card, mini 4pin SATA power cable, mounting screws
