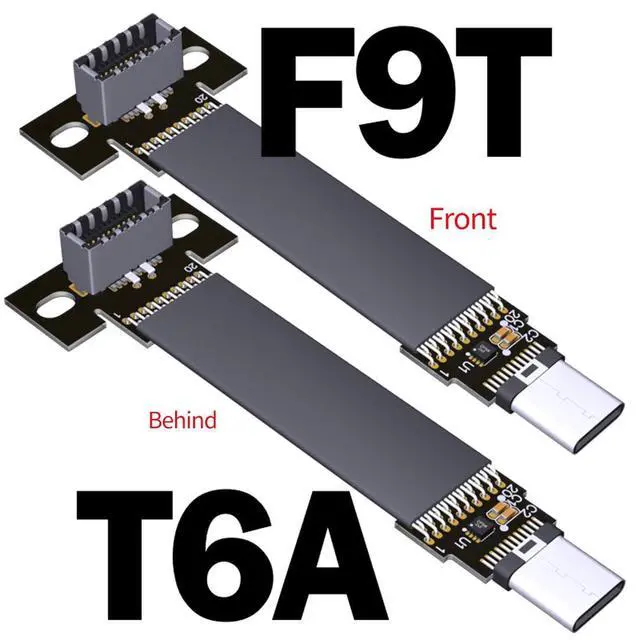

USB 3.1 Extension Adapter Cable Male and Female Type-c to Type-e Data Cable 10G/BPS for ITX Motherboard Built-in USB Device (20cm,T6A-F9T with Chip)
- Use German patent imported wire, support USB3.1 10G/bps speed within 30cm.; Cable length advantage, from 3 cm to 3 meters can be customized.Current capacity: 3A (measured to support 3A within 50cm, 1.5A within 1 meter).; The differential signal has no via hole design, the signal is pure, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, more durable.; The PCB is made of high-quality materials with high frequency and low resistance. The PCB is made of precision. The PCB uses high TG plates. The thickness of the copper material is thickened to 1oz. The PCB power circuit is strengthened and the use of 2 5V power core wires is strengthened to transmit current up to 3A.; Speed bandwidth: USB3.1 standard (10G/bps is supported within 30cm, 10G/bps is not supported after the USB cable is connected in series)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description:
Brand: ADT-Link
Name: USB 3.0 USB-E to built-in 19/20P extension cable
Adaptation range: USB 3.1 built-in 20P type-E to type-E extension
Speed bandwidth: USB 3.1 standard (10G/bps is supported within 30cm, 10G/bps is not supported after the USB cable is connected in series)
Current capacity: 3A (measured to support 3A within 50cm, 1.5A within 1 meter)
Product application: Built-in USB 3.1 20-pin typ-e interface extension cable on the motherboard.
Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes. Please consider carefully before placing an order.
Restrictions on use: If two or more USB cables are connected in series, there will be signal attenuation, so it can only reach 5G gen1, but cannot reach 10G gen2.
Procurement Tips: Be sure to buy 1~2 samples first, and then purchase in bulk after testing and verification.
Description of wire length: The length of the wire in our shop refers to the part of the visible wire, excluding the PCB and the connector, if it contains the PCB and the connector, add about 4cm.

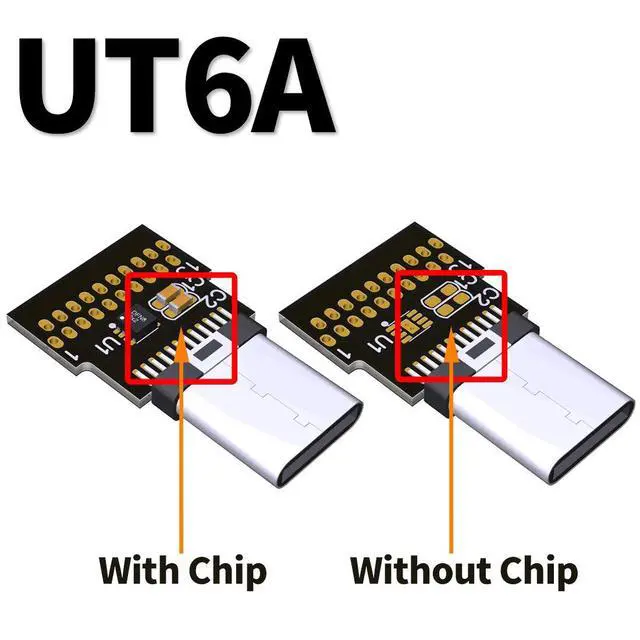

UT5T hole pitch size: center hole pitch 19mm The difference between with chip and without chip: T6A with chip means that the PCB has RT1710 e-mark chip soldered on the RichTek company, which supports high current 3A, up to 5A. Compatibility, scalability, and security are relatively good. Support Alternate Mode, Vendor Defined Message (USB PD). The T6A-NC version without a chip is only suitable for general use and does not support high current. The USB data transmission function can still be used normally.
Brand: ADT-Link
Name: USB 3.0 USB-E to built-in 19/20P extension cable
Adaptation range: USB 3.1 built-in 20P type-E to type-E extension
Speed bandwidth: USB 3.1 standard (10G/bps is supported within 30cm, 10G/bps is not supported after the USB cable is connected in series)
Current capacity: 3A (measured to support 3A within 50cm, 1.5A within 1 meter)
Product application: Built-in USB 3.1 20-pin typ-e interface extension cable on the motherboard.
Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes. Please consider carefully before placing an order.
Restrictions on use: If two or more USB cables are connected in series, there will be signal attenuation, so it can only reach 5G gen1, but cannot reach 10G gen2.
Procurement Tips: Be sure to buy 1~2 samples first, and then purchase in bulk after testing and verification.
Description of wire length: The length of the wire in our shop refers to the part of the visible wire, excluding the PCB and the connector, if it contains the PCB and the connector, add about 4cm.
UT5T hole pitch size: center hole pitch 19mm The difference between with chip and without chip: T6A with chip means that the PCB has RT1710 e-mark chip soldered on the RichTek company, which supports high current 3A, up to 5A. Compatibility, scalability, and security are relatively good. Support Alternate Mode, Vendor Defined Message (USB PD). The T6A-NC version without a chip is only suitable for general use and does not support high current. The USB data transmission function can still be used normally.
