Solar Power Manager Module, Solar Charge Controller USB, Supports 6V~24V Solar Panel and Type-C Power Adapter, 5V/3A Regulated Output, with Battery Holder (Not Includes Batteries)

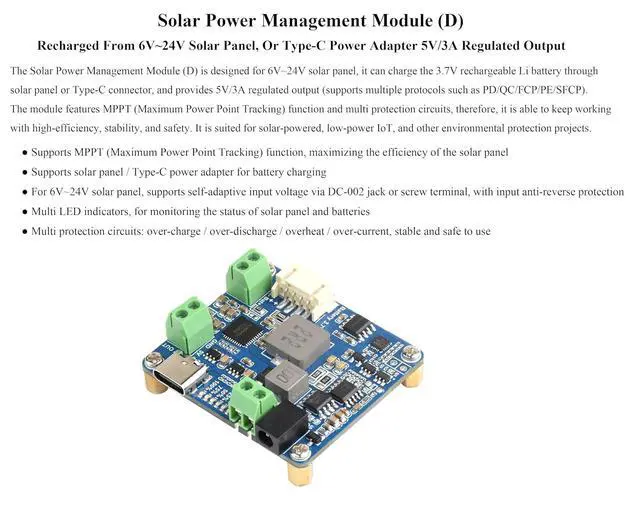

- The Solar Power Management Module (D) is designed for 6V~24V solar panel, it can charge the 3.7V rechargeable Li battery through solar panel or Type-C connector, and provides 5V/3A regulated output (supports multiple protocols such as PD/QC/FCP/PE/SFCP).; The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep working with high-efficiency, stability, and safety. It is suited for solar-powered, low-power IoT, and other environmental protection projects.; Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel. Supports solar panel / Type-C power adapter for battery charging.; For 6V~24V solar panel, supports self-adaptive input voltage via DC-002 jack or screw terminal, with input anti-reverse protection. Multi LED indicators, for monitoring the status of solar panel and batteries.; Multi protection circuits: over-charge / over-discharge / overheat / over-current, stable and safe to use.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

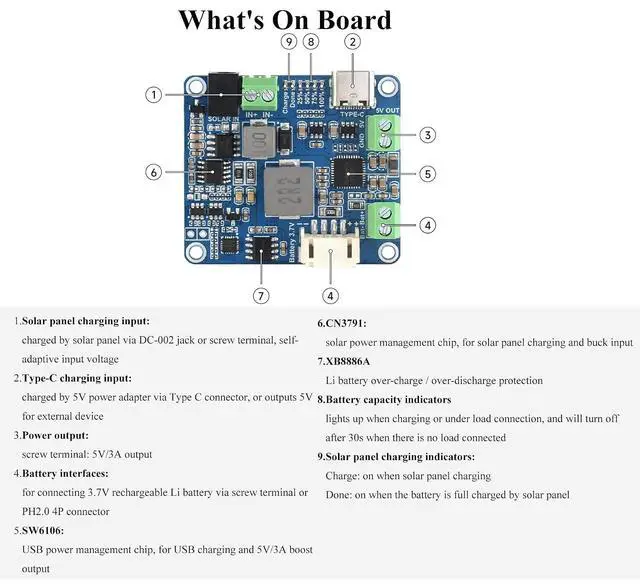

Features 1. Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel 2. Supports solar panel / Type-C power adapter for battery charging 3. For 6V~24V solar panel, supports self-adaptive input voltage via DC-002 jack or screw terminal, with input anti-reverse protection 4. Multi LED indicators, for monitoring the status of solar panel and batteries 5.

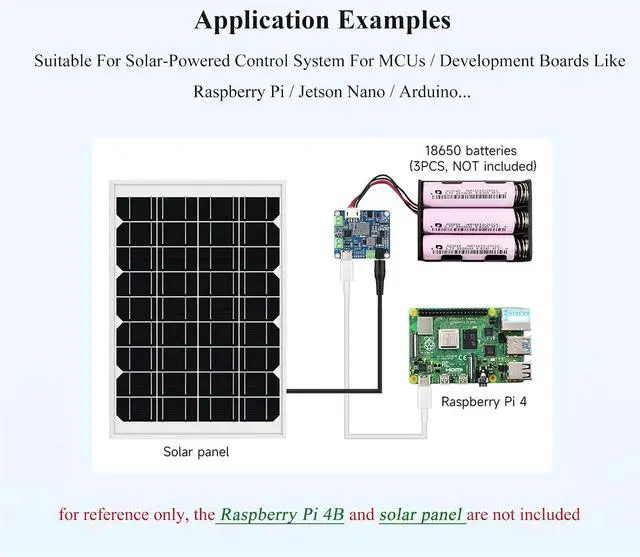

Multi protection circuits: over-charge / over-discharge / overheat / over-current, stable and safe to use 6. Compatible with Raspberry Pi/Jetson Nano/Arduino, etc. Usage Guide 1.
The correct usage method: Correctly connect the batteries, pay attention to the pole orientation, and the power indicators show the remaining power. 2. Solar panel recharging status
LED: Connect the solar panel to DC-002 or the power adapter, and then connect to the DC-002 through the power adapter. If the positive and negative connections are correct, the Charge indicator light is on, and simultaneously, the battery level indicator light flashes. When the battery is fully charged, the Solar Done light will be on, and the Solar Charge light will be off. 3.
Self-adaptive voltage detection: detects each 500ms interval, and if there is no recharging current, automatic tracking to the maximum point for solar charging after detection is complete. 4.

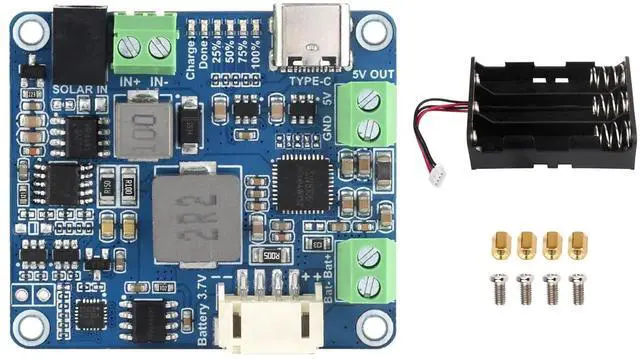

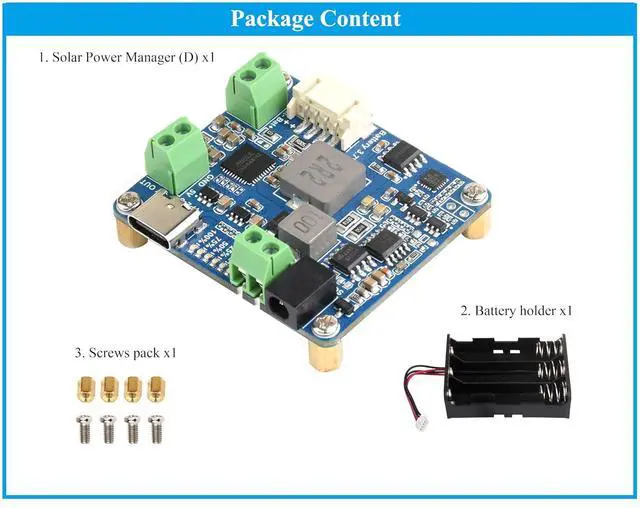

TYPE-C charging status indicator: connect the charger to the TYPE-C interface with the TYPE-C cable, if the charger supports fast charging mode, it enters this mode after a while. Otherwise, it recharges in slow mode. The battery level indicator flashes when recharging, and is always on when is fully charged. Package Content Solar Power Manager (D) x1 Battery holder x1 Screws pack x1 Note 1. the 18650 batteries are NOT included. 2. Online Development Resource and Technical Support are provided, please feel free to contact us if you have any problem!
Multi protection circuits: over-charge / over-discharge / overheat / over-current, stable and safe to use 6. Compatible with Raspberry Pi/Jetson Nano/Arduino, etc. Usage Guide 1.
The correct usage method: Correctly connect the batteries, pay attention to the pole orientation, and the power indicators show the remaining power. 2. Solar panel recharging status
LED: Connect the solar panel to DC-002 or the power adapter, and then connect to the DC-002 through the power adapter. If the positive and negative connections are correct, the Charge indicator light is on, and simultaneously, the battery level indicator light flashes. When the battery is fully charged, the Solar Done light will be on, and the Solar Charge light will be off. 3.
Self-adaptive voltage detection: detects each 500ms interval, and if there is no recharging current, automatic tracking to the maximum point for solar charging after detection is complete. 4.
TYPE-C charging status indicator: connect the charger to the TYPE-C interface with the TYPE-C cable, if the charger supports fast charging mode, it enters this mode after a while. Otherwise, it recharges in slow mode. The battery level indicator flashes when recharging, and is always on when is fully charged. Package Content Solar Power Manager (D) x1 Battery holder x1 Screws pack x1 Note 1. the 18650 batteries are NOT included. 2. Online Development Resource and Technical Support are provided, please feel free to contact us if you have any problem!
