USB Blaster V2 Download Cable Programmer Debuggers, High-Speed FT245+CPLD+244 Solution, Support ALTERA FPGA/CPLD Devices, AS, PS, JTAG Three Download Modes

Key Features 1) Hardware Solution High speed FT245+CPLD+244 solution, similar download speed as the original ALTERA USB Blaster, with the same operation. Download speed 1-3 times faster than other schemes, such as 68013 or C8051F. 2) Performance Supports most of the ALTERA FPGA/CPLD devices, Active Serial Configuration devices, and Enhanced Configuration Devices. Supports AS, PS, JTAG three download modes. High-speed, stable, and internal FT245R+CPLD designed. Supports 1.2 -5V programming voltage. Supports Nios II of embedded processor communication and debugging. 3) Supported Softwares Quartus II integrated development environment.

NIOS II IDE integrated development environment. NIOS II EDS integrated development environment. 4) Supported Devices Tested devices are listed below, including
but not limited to:
CPLD: MAX3000, MAX7000A/B/S, MAX9000 and MAX II etc.
FPGA: Stratix, Stratix II, Cyclone, Cyclone II, CycloneIII, ACEX 1K, APEX 20K and FLEX 10K etc. Active Serial
Configuration Devices including: EPCS1, EPCS4, EPCS16 etc.
Enhanced Configuration Devices including: EPC1, EPC4 etc. 5) Connects to PC Computer connection via USB 2.0 interface. 6) Connects to target board Target board connection via JTAG, AS, PS interfaces.
LED Status Red LED: Power indicator
Green LED: Signal indicator, the LED is on while downloading/programming Online Development Resources /User

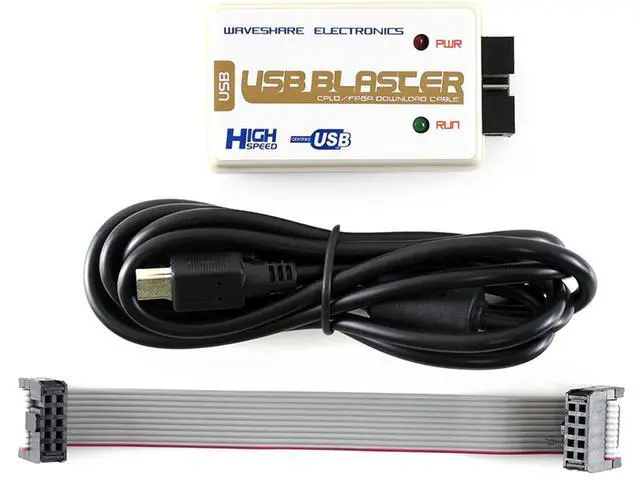

Manuall: //bit. ly/3njOq7l Package Content USB Blaster V2 × 1 USB Cable × 1 10-pin cable × 1
Question: USB Blaster is used under Windows, do I need a driver?
Answer: A driver is required, and the driver is provided with the Quartus software. After installing the software, you need to manually load the USB blaster driver in the device manager, see the user manual for details.
