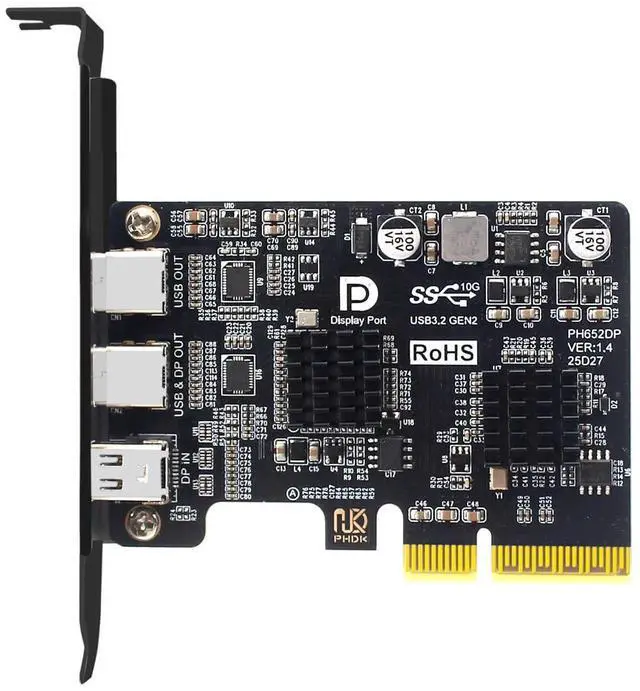

    Mini Displayport 1.4 Input PCI-E Express 4X to Dual USB 3.1 Type-C USB-C 10Gbps & 4K 60hz Output Desktop Graphics Expansion Card Adapter ASM3142

    Be the first to review this product...

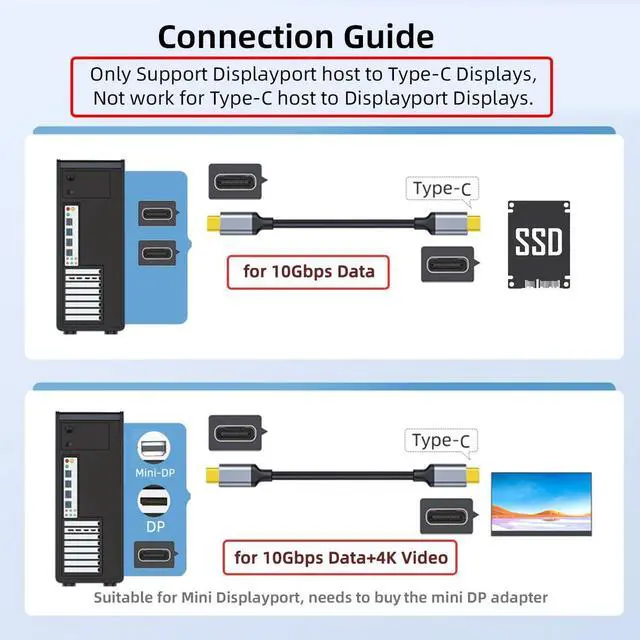

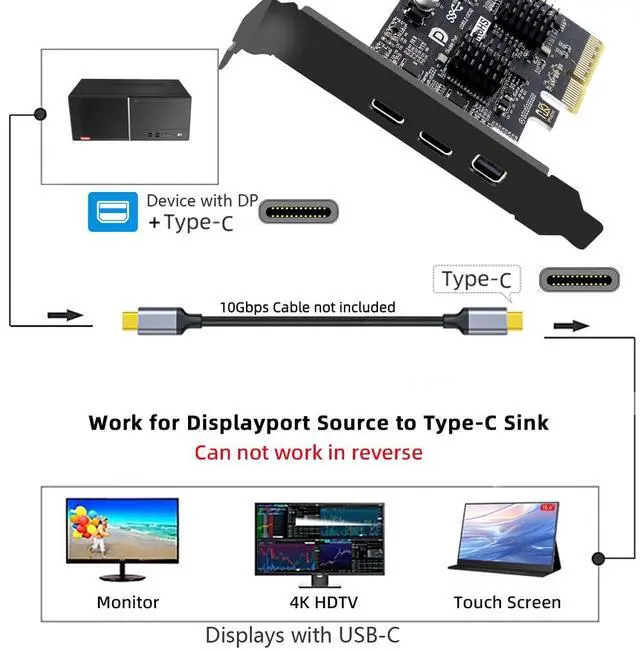

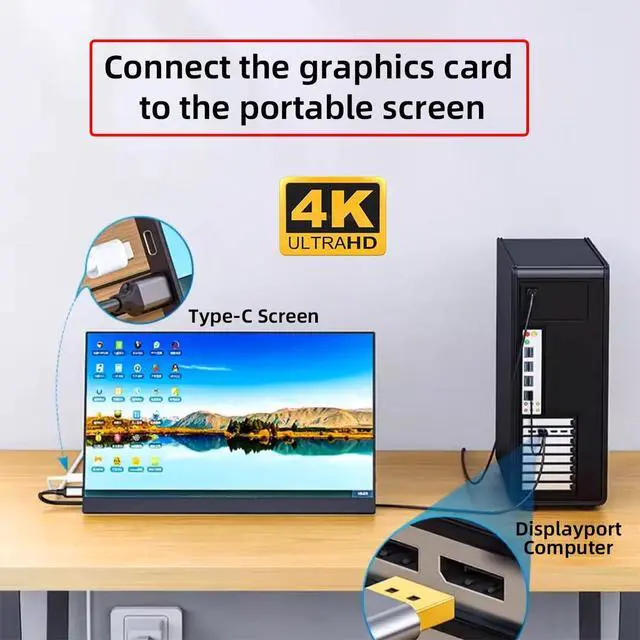

    • 1)Need to connect Mini DisplayPort Mini-DP 4K input from Graphics Card, Then you can get the 4K video from Type-C card output. Compatible with Displayport DP or Mini DP or Thunderbolt2 video source to Type-C USB-C sink output.
    • 2)10Gbps Data transfer: Support 10Gbps data rating and 5V power. Compliant with USB Base Specification 3.1/3.0, Output USB3.0 interface and Type-C/Type-E interface. Compliant with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
    • 3)No need any extra Power Supply,build in Self-Powered IC. Compatible with Windows 7, 8, 10, 11 and Mac OS 10.8.2 and above. Win 10, 11, Mac OS, and Linux does not need any driver.It requires installing a driver when operating on Windows 7.
    • 4)The connector can transfer the usb 3.1/3.0 data and power, Also can connect usb-c video device. Type C connector is the new design for USB 3.1,Reversible Design for Type C connector,Reversible plug orientation Cable direction,Support 5V/3A power charging.
    • 5)Input 1: Compatible slot: PCIe x4, PCIe x8, PCIe x16.Input 2: Mini displayport 4K.Output 1: Type-c connector Female with 10Gbps.Output 2: Type-c connector Female with 10Gbps & 4K 60hz Video
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now
    1)Need to connect Mini DisplayPort Mini-DP 4K input from Graphics Card, Then you can get the 4K video from Type-C card output. Compatible with Displayport DP or Mini DP or Thunderbolt2 video source to Type-C USB-C sink output.
    2)10Gbps Data transfer: Support 10Gbps data rating and 5V power. Compliant with USB Base Specification 3.1 / 3.0, Output USB 3.0 interface and Type-C/Type-E interface. Compliant with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed ( 1.5M bps).
    3)No need any extra Power Supply, build in Self-Powered IC. Compatible with Windows 7, 8, 10, 11 and Mac OS 10.8. 2 and above. Win 10, 11, Mac OS, and Linux does not need any driver. It requires installing a driver when operating on Windows 7.
    4)The connector can transfer the usb 3.1 / 3.0 data and power, Also can connect usb-c video device. Type C connector is the new design for USB 3.1, Reversible Design for Type C connector, Reversible plug orientation Cable direction, Support 5V/3A power charging.
    5)Input 1: Compatible
    slot: PCIe x4, PCIe x8, PCIe x16.
    Input 2: Mini displayport 4K.
    Output 1: Type-c connector Female with 10Gbps.
    Output 2: Type-c connector Female with 10Gbps & 4K 60hz Video
