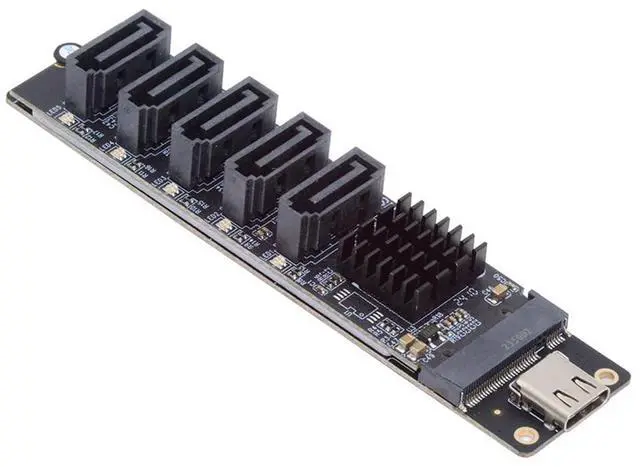

10Gbps USB-C 5 Ports Type-C to 6Gbps NGFF B+M Key SATA Adapter Converter PM Port Multiplier Selector JMB575 JMS580
- Support 5 port SATA 6Gbps interface
- Supports BIST and loopback mode
- Support command-based and FIS-based switching
- Support PM aware and non-PM aware host

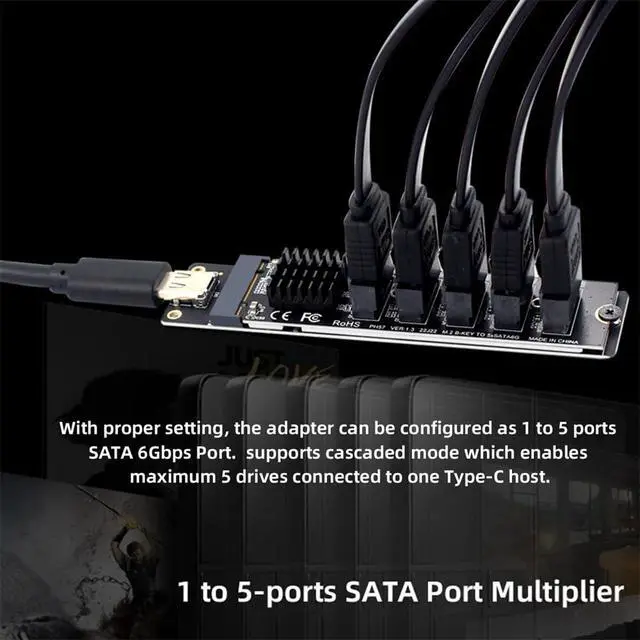

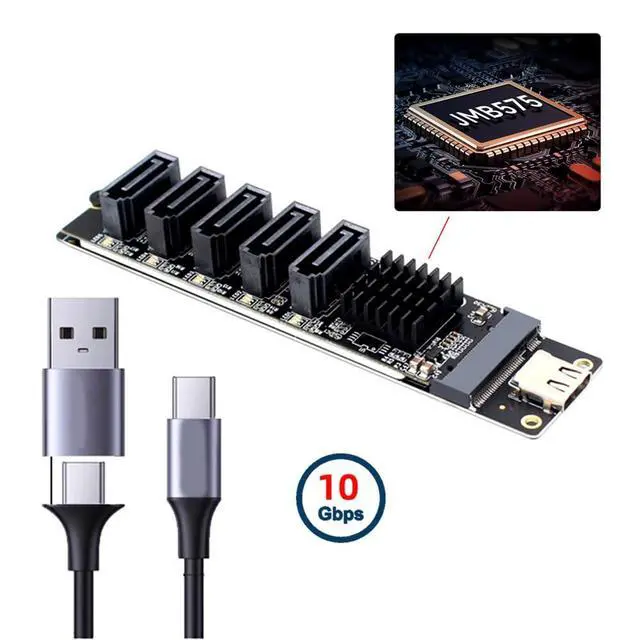

- JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host.

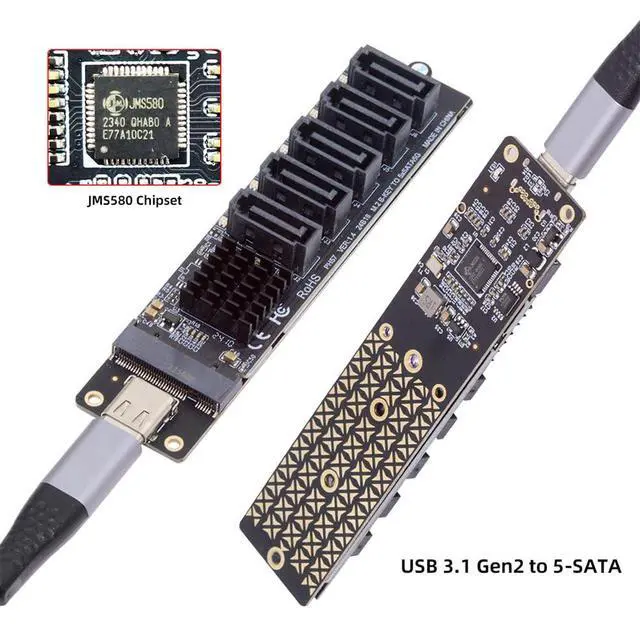

- JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device. TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate.With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port.
- Complies with Serial ATA 6Gb/s Electrical Specification 3.2
- Complies with USB 3.1 Specification Revision 1.0, USB BOT Specification
- Main control chip: JMB575+JMS580

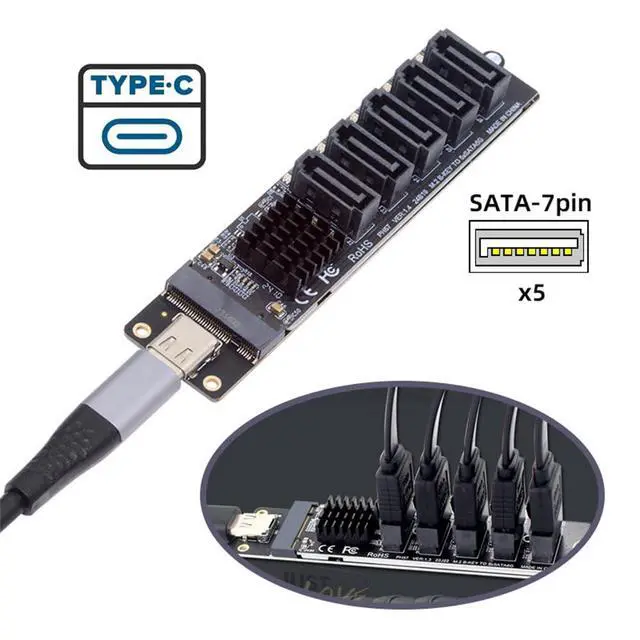

- Interface: 5 x SATA3.0 interface

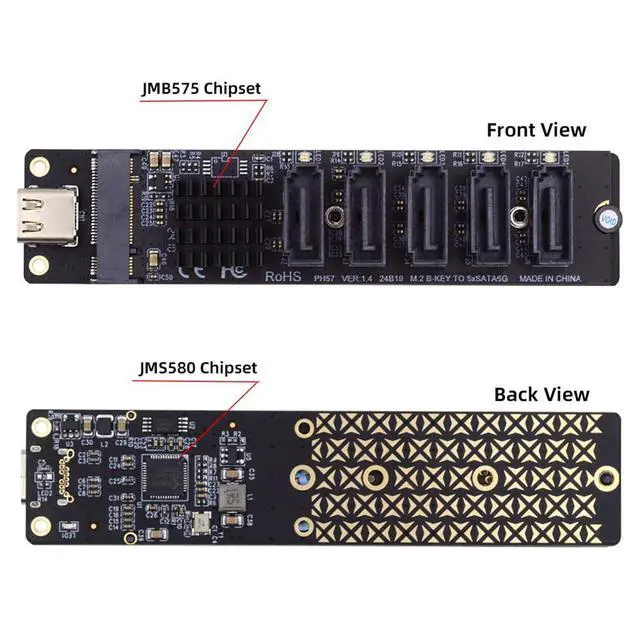

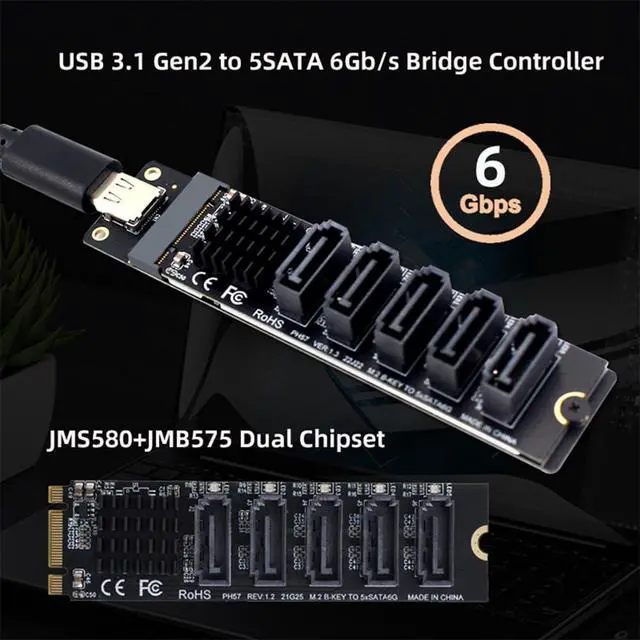

- Dual chipset at the adapter, JMB575+JMS580.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Support 5 port SATA 6Gbps interface
Supports BIST and loopback mode
Support command-based and FIS-based switching
Support PM aware and non-PM aware host
JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host.
JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device. TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate. With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port.
Complies with Serial ATA 6Gb/s Electrical Specification 3.2
Complies with USB 3.1 Specification Revision 1.0, USB BOT Specification
Main control chip: JMB575+JMS580
Interface: 5 x SATA 3.0 interface
Dual chipset at the adapter, JMB575+JMS580.
Supports BIST and loopback mode
Support command-based and FIS-based switching
Support PM aware and non-PM aware host
JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host.
JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device. TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate. With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port.
Complies with Serial ATA 6Gb/s Electrical Specification 3.2
Complies with USB 3.1 Specification Revision 1.0, USB BOT Specification
Main control chip: JMB575+JMS580
Interface: 5 x SATA 3.0 interface
Dual chipset at the adapter, JMB575+JMS580.
