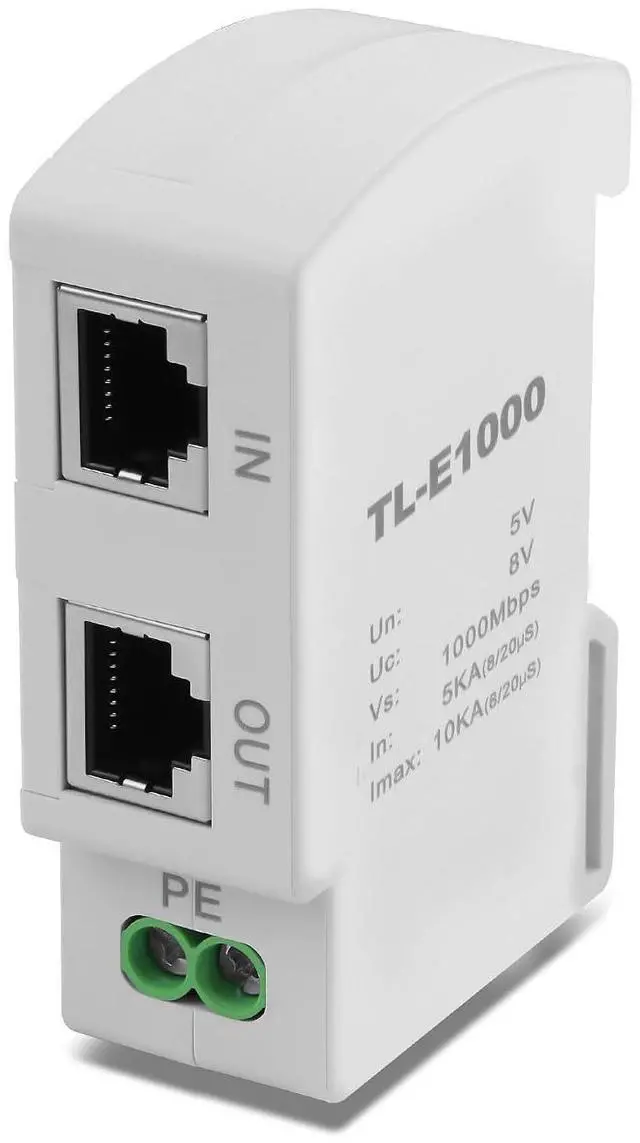

Ethernet Surge Protector 1000Mbps DIN Rail Network Surge Protector LAN Network CAT5/CAT6 Thunder Arrestor for Network Devices, Routers, and Switches Imax 10Ka (36mm DIN-Rail mounting)

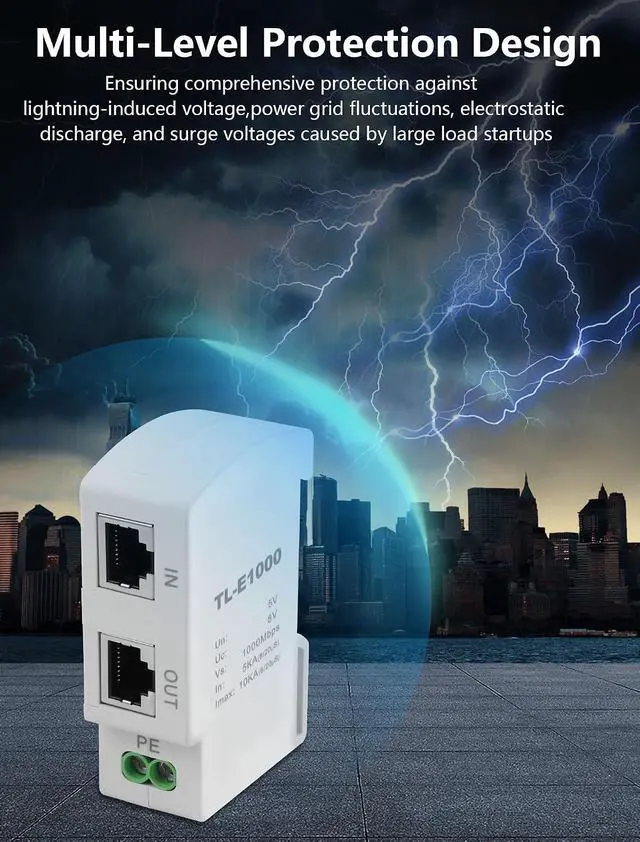

- Multi-Level Protection Design: Ethernet surge protector features a multi-stage protection circuit design, ensuring comprehensive protection against lightning-induced voltage, power grid fluctuations, electrostatic discharge, and surge voltages caused by large load startups. It effectively safeguards your high-speed network communication lines and network devices from potential damage.; High - Quality Components for Reliable Performance: Equipped with core components from manufactured with advanced production processes, DIN rail surge protector features high surge capacity (10KA maximum discharge current), low residual voltage (8V or 15V depending on the model), fast response time (10ns), stable performance, and low insertion loss (0.2dB). This ensures your network devices operate smoothly and reliably.; Easy Installation and Space - Saving Design: Din rail mount ethernet switch mounted designs, as well as 16 - or 24 - circuit 19 - inch integrated rack - mounted options, this surge protector offers flexible installation methods. Whether you need to protect a single device or multiple devices in a centralized location, it provides convenient and space - saving solutions.; Durable and Low - Maintenance Design: Shielded RJ45 lightning suppressor LAN network is designed to operate in a wide temperature range (-25 to +65) and humidity conditions (95% at 25-30), The grounding terminal ensures a secure connection, ensuring long-term reliability and durability.; Suitable for a W
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This ethernet surge protectors an essential device for protecting your high-speed network communication systems and network equipment from lightning strikes and voltage surges. Its advanced design and high-quality components ensure reliable performance and long-term durability, making it a must-have for any network infrastructure.
1.
Product Name: ** Network Surge Protector
2.
Model: ** 100M, 1000M, 1000MPOE
3.
Continuous Working Voltage (Un): 5V (100M, 1000M),
4. Nominal Discharge Current (In, 8/20s): 5KA
5. Maximum Discharge Current (Imax, 8/20s): 10KA
6.
Limited Voltage (Up): 8V (100M), 15V (1000M)
7.
Data Transmission Rate (Vs): 100M bps (100M, 1000M)
8.
Insertion Loss (Ae): 0.2 dB
9.

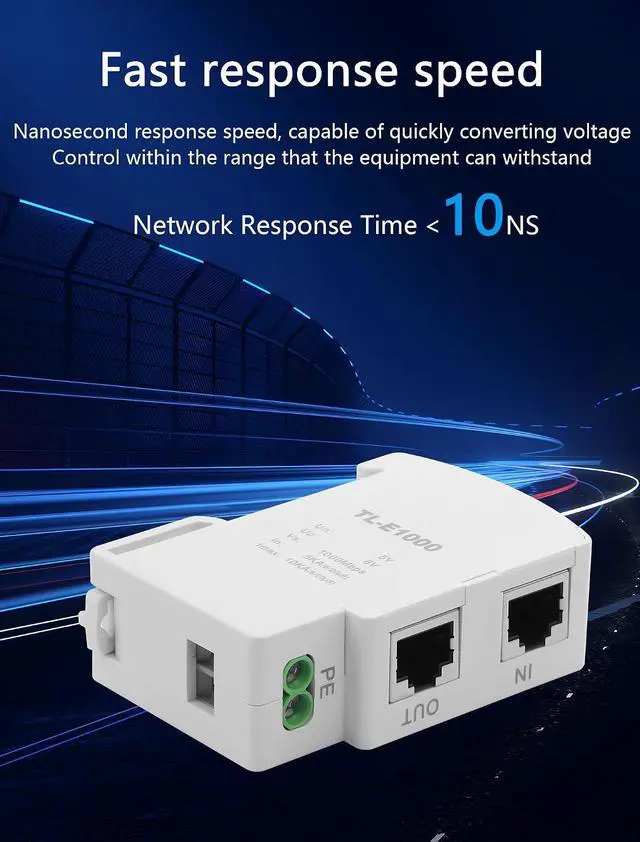

Response Time (Ta): 10ns
10.
Interface Type: RJ45
11.
Interface Quantity: Single-route
12.
Protected Pins: Pin1, 2, 3, 6 (100M, 1000M)
13.

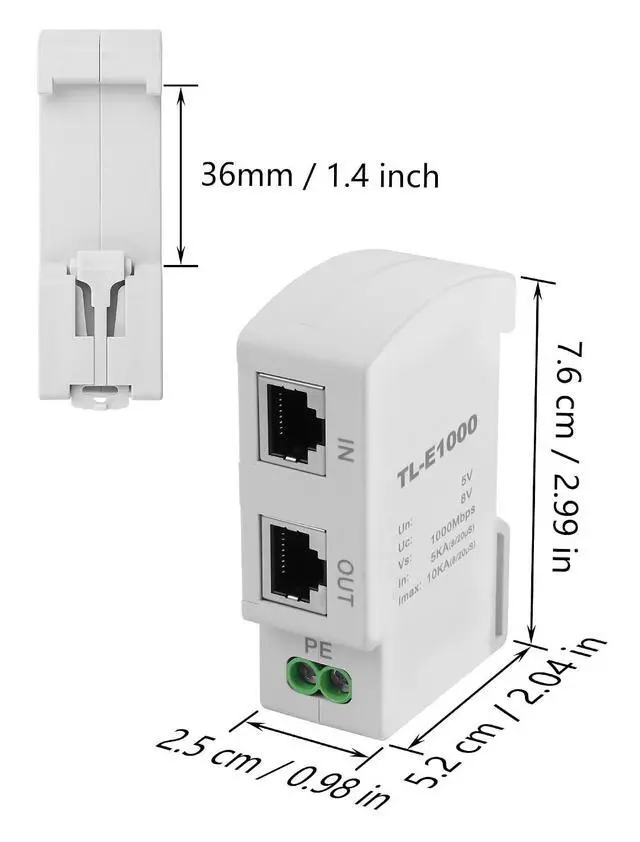

Installation Method: Series connection(Standard 36mm DIN-rail mounting)
14.

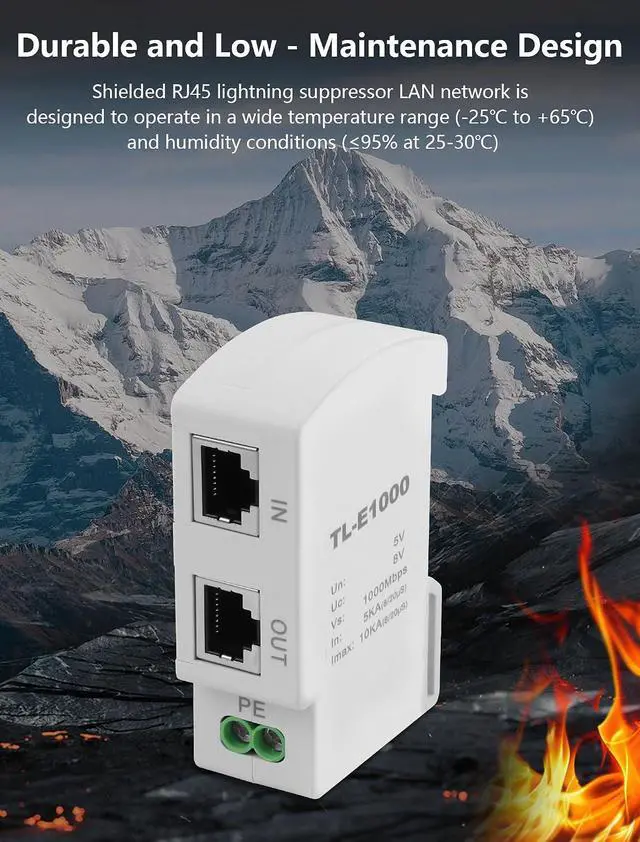

Working Environment: ** Temperature -25 to +65, Humidity 95% (25-30)
Package: 1 x Ethernet surge protectors
Product Details
:1.
Product Name: ** Network Surge Protector
2.
Model: ** 100M, 1000M, 1000MPOE
3.
Continuous Working Voltage (Un): 5V (100M, 1000M),
4. Nominal Discharge Current (In, 8/20s): 5KA
5. Maximum Discharge Current (Imax, 8/20s): 10KA
6.
Limited Voltage (Up): 8V (100M), 15V (1000M)
7.
Data Transmission Rate (Vs): 100M bps (100M, 1000M)
8.
Insertion Loss (Ae): 0.2 dB
9.
Response Time (Ta): 10ns
10.
Interface Type: RJ45
11.
Interface Quantity: Single-route
12.
Protected Pins: Pin1, 2, 3, 6 (100M, 1000M)
13.
Installation Method: Series connection(Standard 36mm DIN-rail mounting)
14.
Working Environment: ** Temperature -25 to +65, Humidity 95% (25-30)
Package: 1 x Ethernet surge protectors
