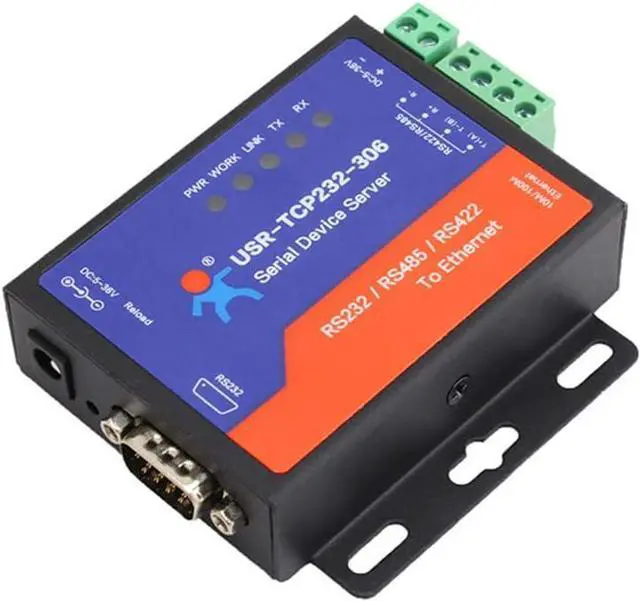

USR-TCP232-306 Ethernet Converters RS422/RS232/RS485 Serial to Ethernet Support DNS DHCP Buit-in Webpage
- USR-TCP232-306 is a multi serial port server,whose function is to realize bi-directional transparent transmission between RS232/RS485/RS422 and Ethernet.
- Can directly process data interaction through network and device to realize remote data acquisition, remote control and management.

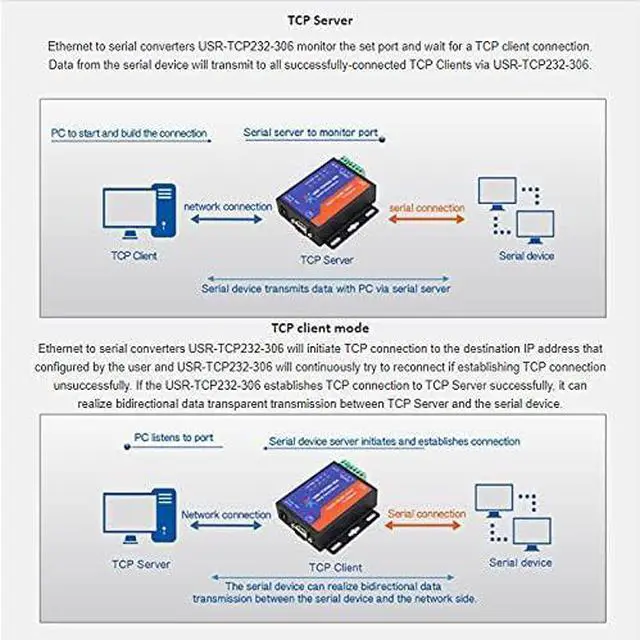

- Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client ; Running across the gateway, switches or routers.
- Supports RS232/RS485/RS422 port ( Can't be used at one time) ; Auto-MDI/MDIX, RJ45 port with 10/100Mbps ; Provide Virtual com software
- When connection number reaches a maximun, the new connection is kicked off the old one can be configured by user
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Introduction
Baud rate of serial port can be configured from 600 bps to 230.4 Kbps, supports check bit of none, odd, even, mark and space
Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
User-defined registration package mechanism, check connection status and use as custom packet header
Under TCP Server Mode, the connection number with client can be randomly set from 1 to 16, default number is 4. IP has been connected can be shown according to connectiong with calculating send / recceive dat.
Parameters can be configured by built-in webpage, AT command, serial port procotol and network procotol. Setting procotol is avaliable to integrate into user's software.
Supports TCP client short connection function, user-defined the disconnected time.
Device restart if no data transmission or timeout. User-defined the restart time.
If data buffer needs to clear configuration before TCP connection establishment
Supports DHCP, automatically obtain an IP address and query IP address via serial setting protocol.
Can work in LAN, also can work in the Internet
Application FieldIndustrial data transmission, industrial automation
Smart home, power control, environmental monitoring, intelligent agriculture
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
Baud rate of serial port can be configured from 600 bps to 230.4 Kbps, supports check bit of none, odd, even, mark and space
Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
User-defined registration package mechanism, check connection status and use as custom packet header
Under TCP Server Mode, the connection number with client can be randomly set from 1 to 16, default number is 4. IP has been connected can be shown according to connectiong with calculating send / recceive dat.
Parameters can be configured by built-in webpage, AT command, serial port procotol and network procotol. Setting procotol is avaliable to integrate into user's software.
Supports TCP client short connection function, user-defined the disconnected time.
Device restart if no data transmission or timeout. User-defined the restart time.
If data buffer needs to clear configuration before TCP connection establishment
Supports DHCP, automatically obtain an IP address and query IP address via serial setting protocol.
Can work in LAN, also can work in the Internet
Application FieldIndustrial data transmission, industrial automation
Smart home, power control, environmental monitoring, intelligent agriculture
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
